Ignition Switch Compatible with Cub Cadet Most Consumer Riding mowers 725-04227
Ignition Switch Compatible with Cub Cadet Most Consumer Riding mowers 725-04227, 725-04227A, 725-04227B, 725-04230B, 725-06102A, 725-06102B, 725-06119B, 925-04227A, 925-04227B
Replaces OEM Numbers: Cub Cadet: 725-04227, 725-04227A, 725-04227B, 725-06102A, 725-06102B, 925-04227A, 925-04227B, 925-06119, 925-06119A, 925-06119B, Delta: 2030-016, 2030-018, MTD: 725-04227, 725-04227A, 725-04227B, 725-06102B, 925-04227A, 925-04227B, 925-06119, 925-06119A, 925-06119B
Compatible with: Cub Cadet: most consumer riding mowers
Important Wiring Note:

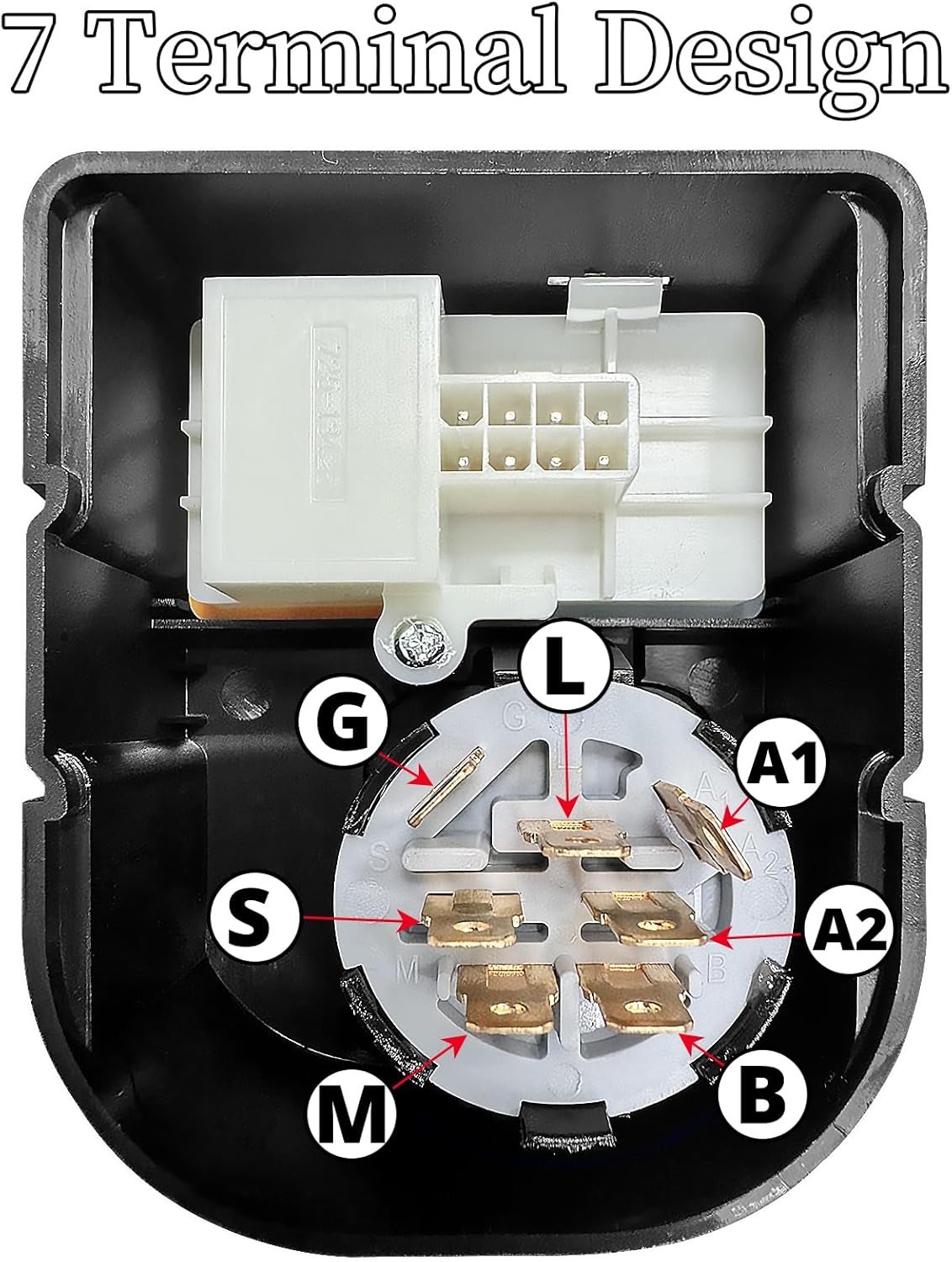

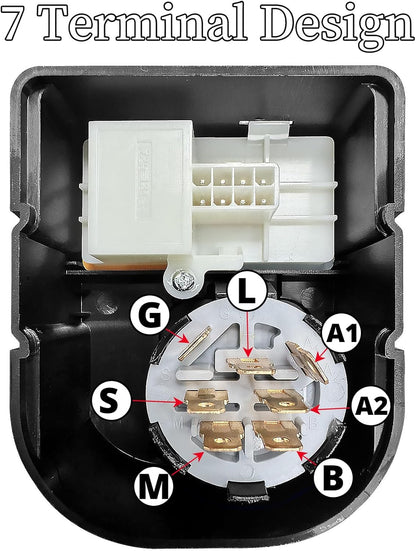

This is a 7-terminal ignition switch. Please match the wiring by terminal letters and terminal positions, not by plug shape alone.
Terminal markings on this switch are:
G, L, A1, A2, B, M, S
Typical terminal functions:
B = Battery (+)
S = Start
M = Magneto / Engine kill
G = Ground
L = Lights
A1 / A2 = Accessory / circuit terminals (application may vary by mower model)
Important Installation Note:
Wiring must be matched by terminal letters and terminal positions, not by plug shape alone.
Different models may use similar connectors but have different internal terminal layouts.
Incorrect wiring may cause a short circuit, blown fuse, or starting issues.
Please compare the terminal layout with your original switch before installation.
Professional installation is recommended.
