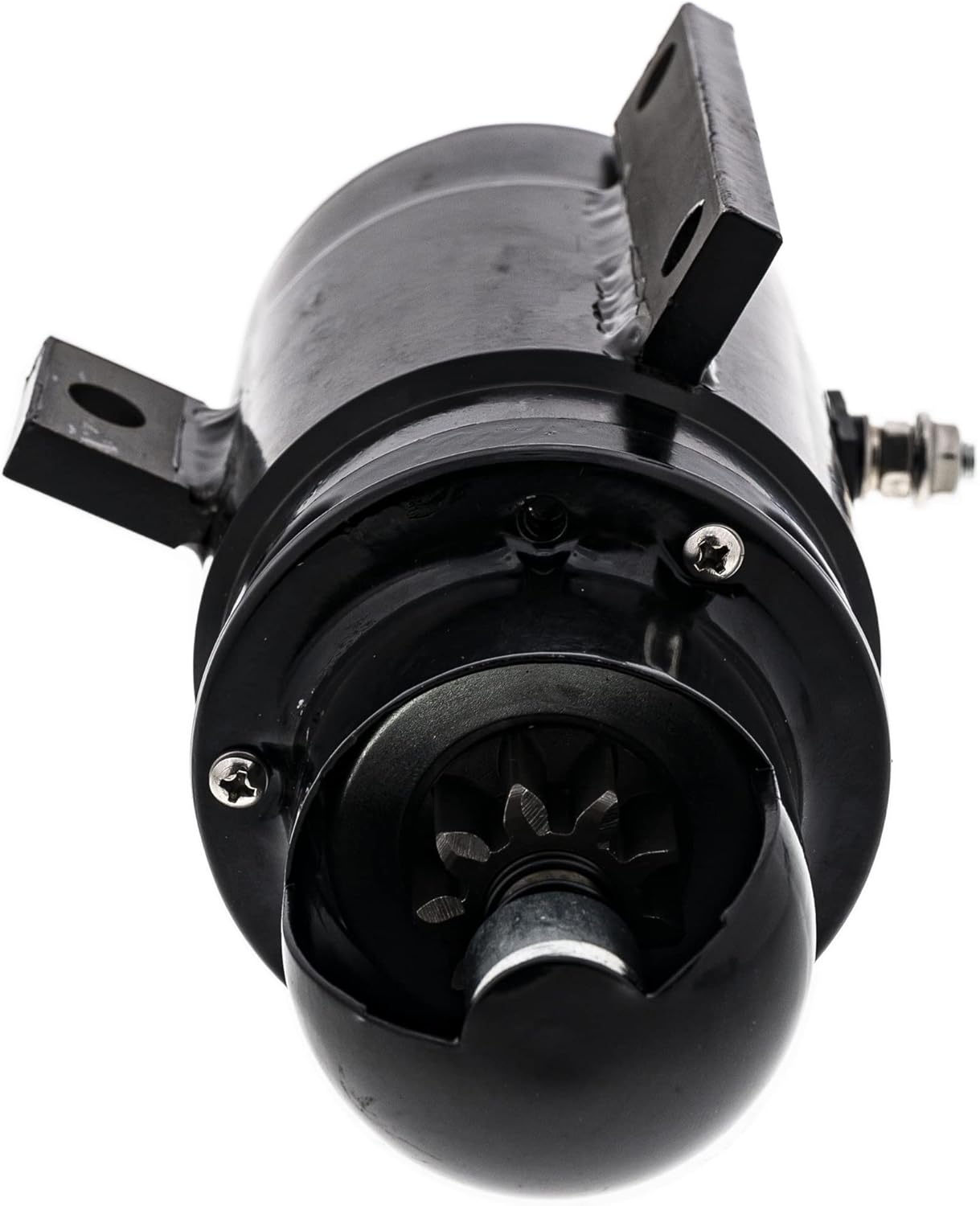

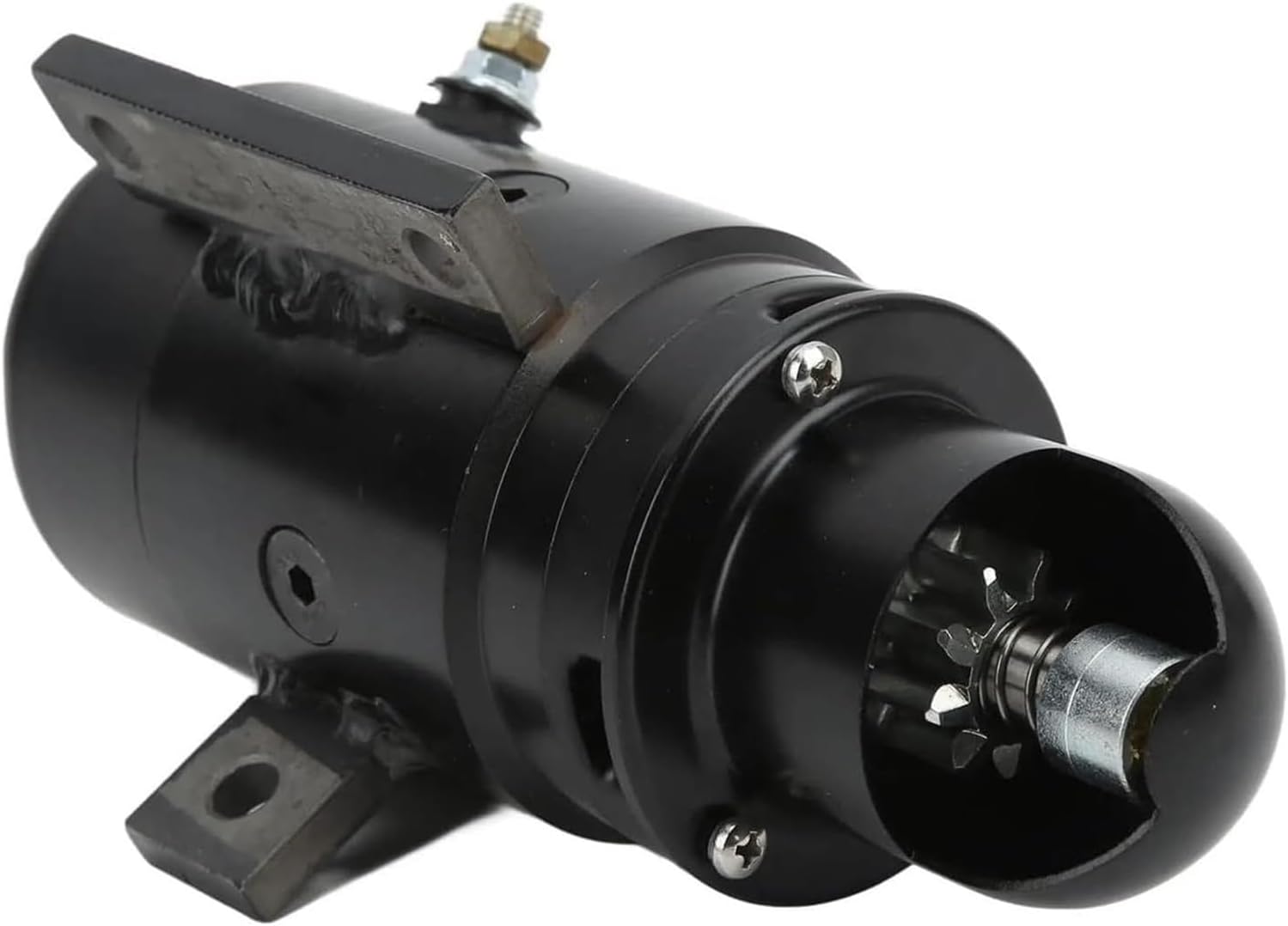

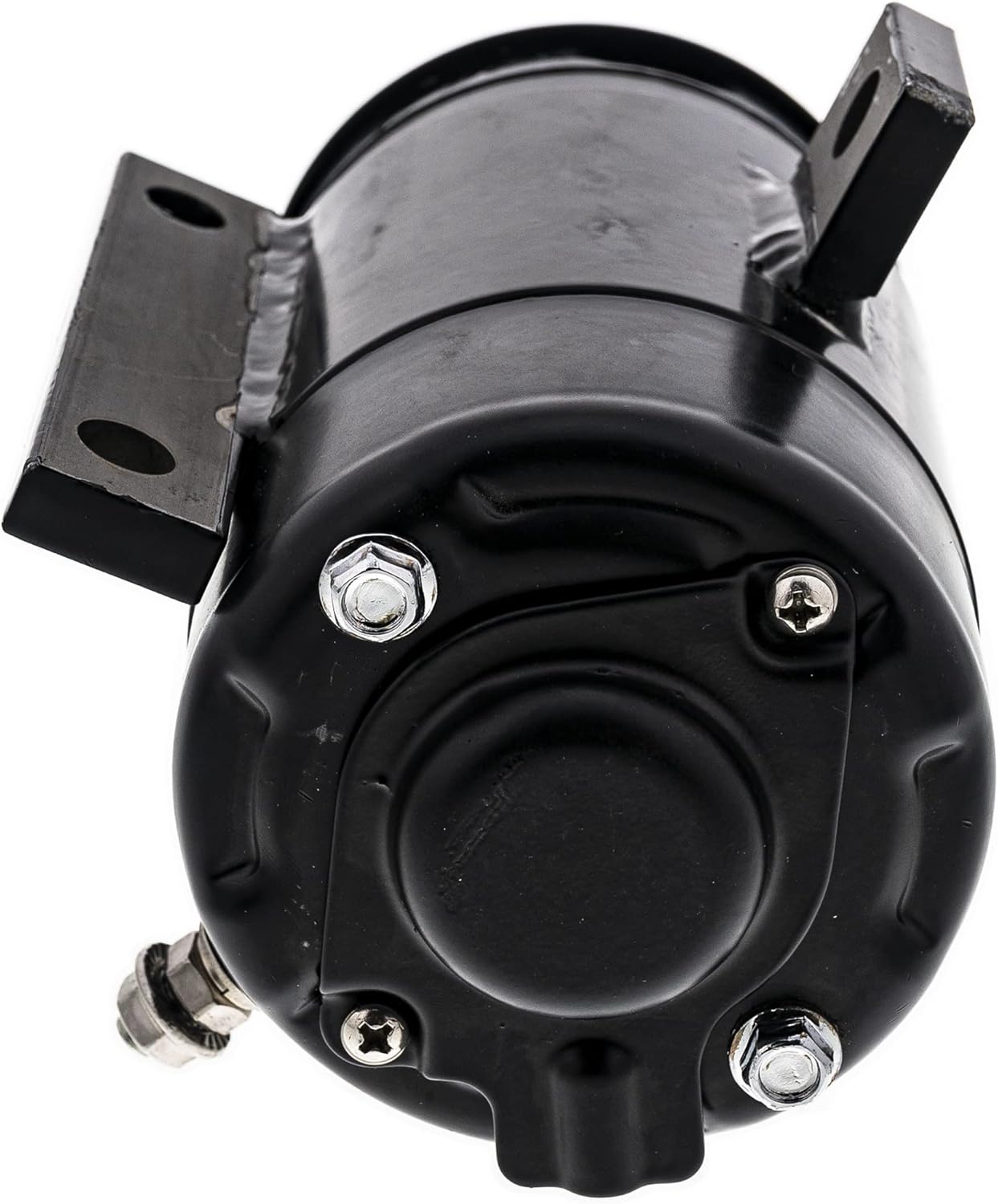

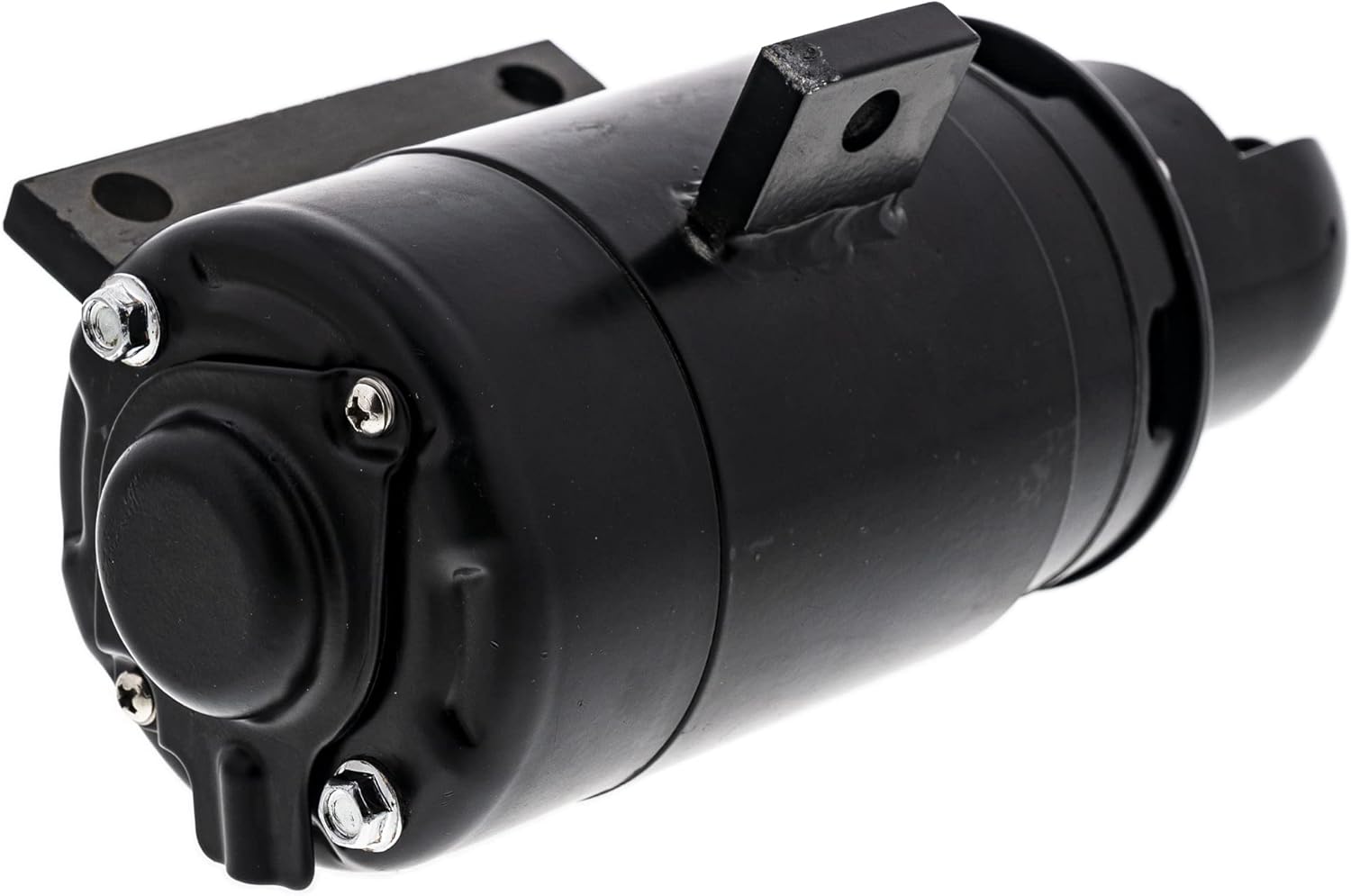

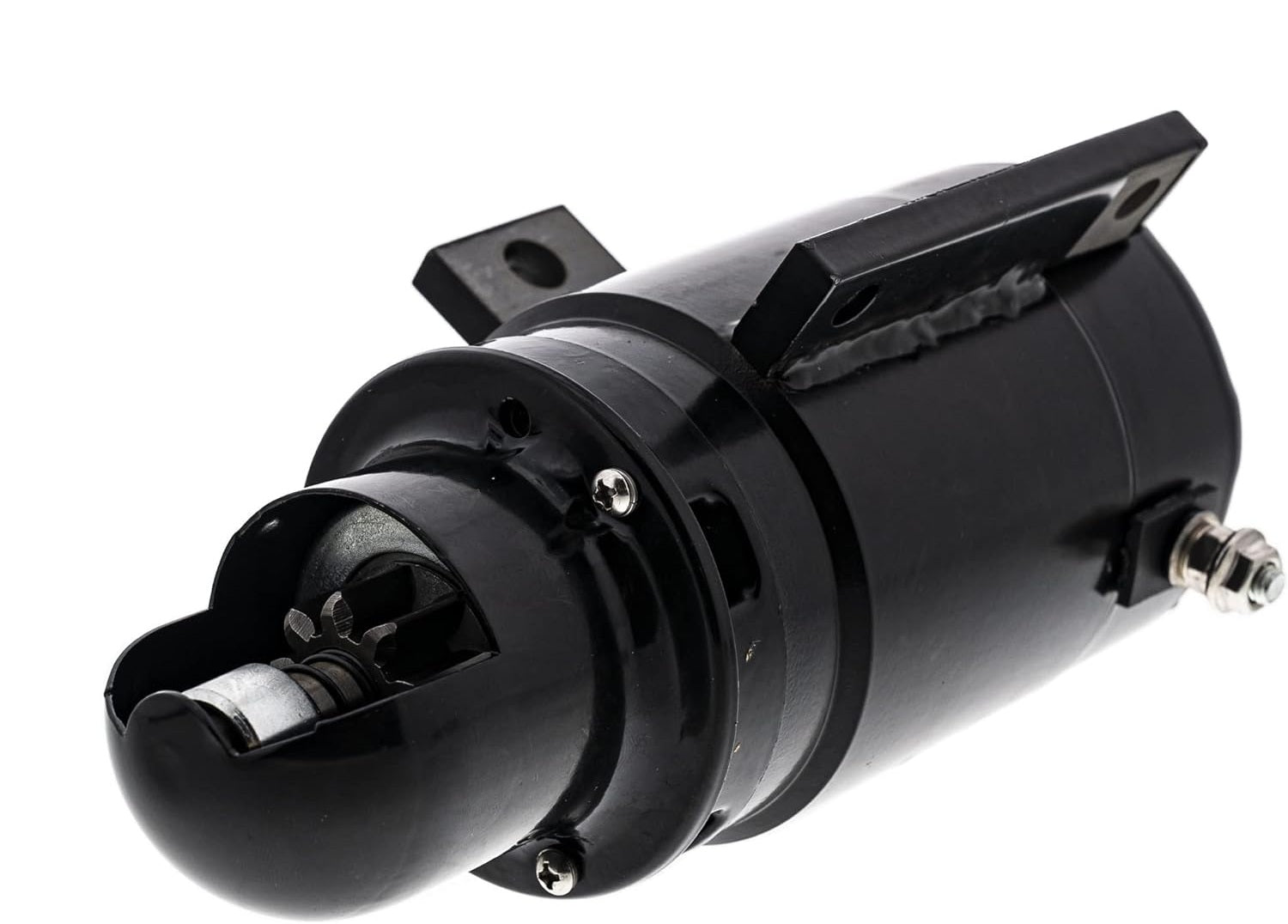

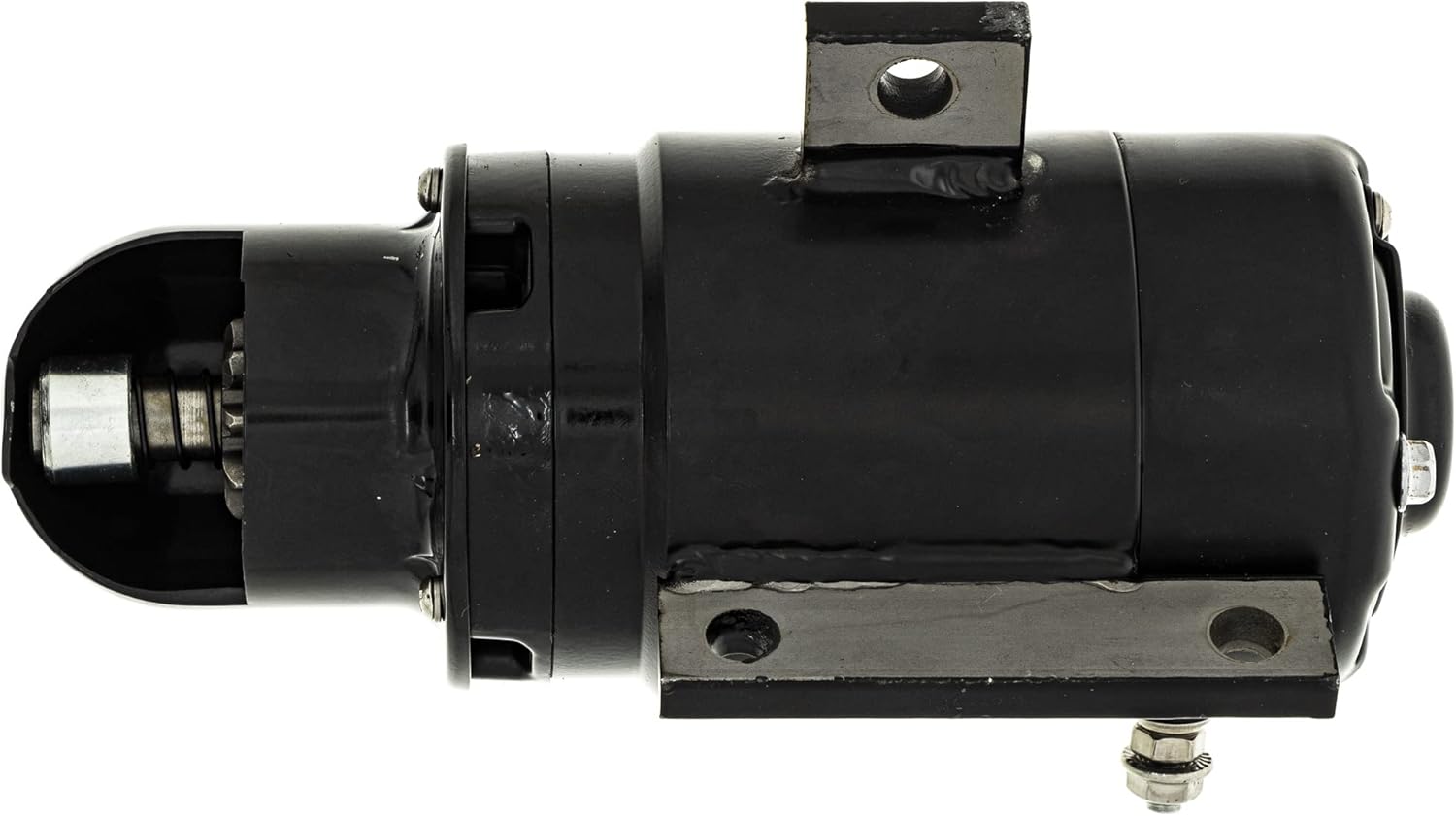

Starter Motor Replacement for Yamaha 688-81800-10 688-81800-11 688-81800-12

Starter Motor Replacement for Yamaha 688-81800-10 688-81800-11 688-81800-12

Brand-new aftermarket starter motor for selected Yamaha 75–90HP outboard engines manufactured between 1984 and 2001.

Replaces OEM Part Numbers
Yamaha: 688-81800-10, 688-81800-11, 688-81800-12
API Marine: MOT5015
ARCO Marine: 3427
Hitachi: S114-263B
Sierra Marine: 18-6423
J & N: 410-44058
Lester: 18344
WAI: 2-2517-HI, 2-2517-HI-1

Specifications
Voltage: 12V
Rotation: CCW
Starter Type: Direct Drive (DD)
Teeth: 9
Pinion OD: 28.3 mm
Mounting Holes: 3 × 9.0 mm ID (unthreaded)

Compatible Yamaha Outboard Models
75HP / 80HP / 85HP / 90HP – 1984 to 2001

Including but not limited to:
90ETL (1984–1990)
90ETLJD (1987–1990)
90ETX (1984)
90TJR (1991–2001)
90TLR (1991–2010)
B90TLR (1998–1999)
C75TLR (1994–1999)
C80TLR (1997)
C85TLR (1991–1996)
C90TLR (1997–2001)
CV85EL (1990)
CV85ETL (1990)
P75TLH (1996–1999)

Notes
Please confirm your original part number and engine model before purchase.
