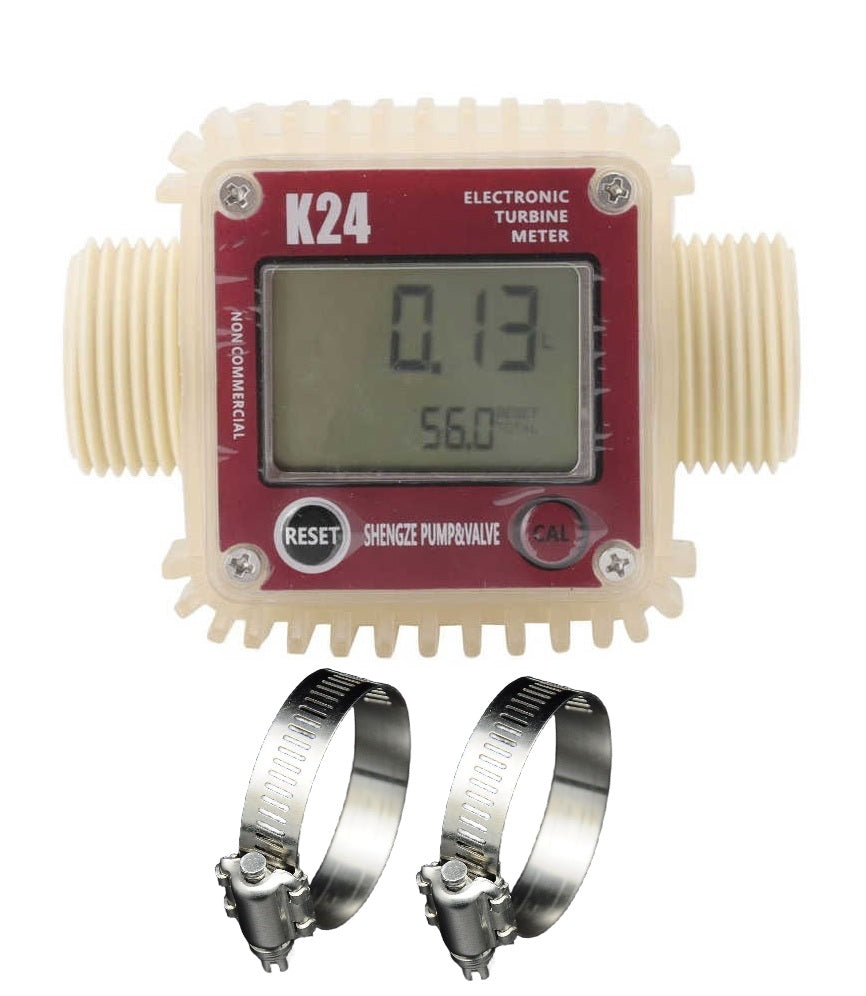

1" BSP K24 Digital Flow Meter for Milk Water Diesel Petrol + 2 SS304 Clamps

1" BSP K24 Digital Flow Meter for Milk Water Diesel Petrol + 2 SS304 Clamps

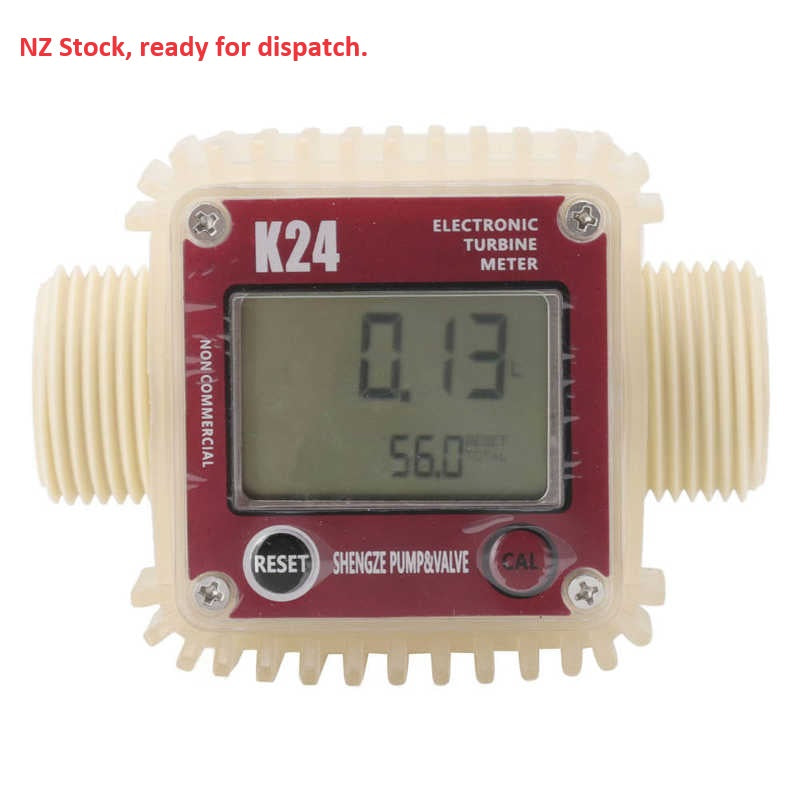

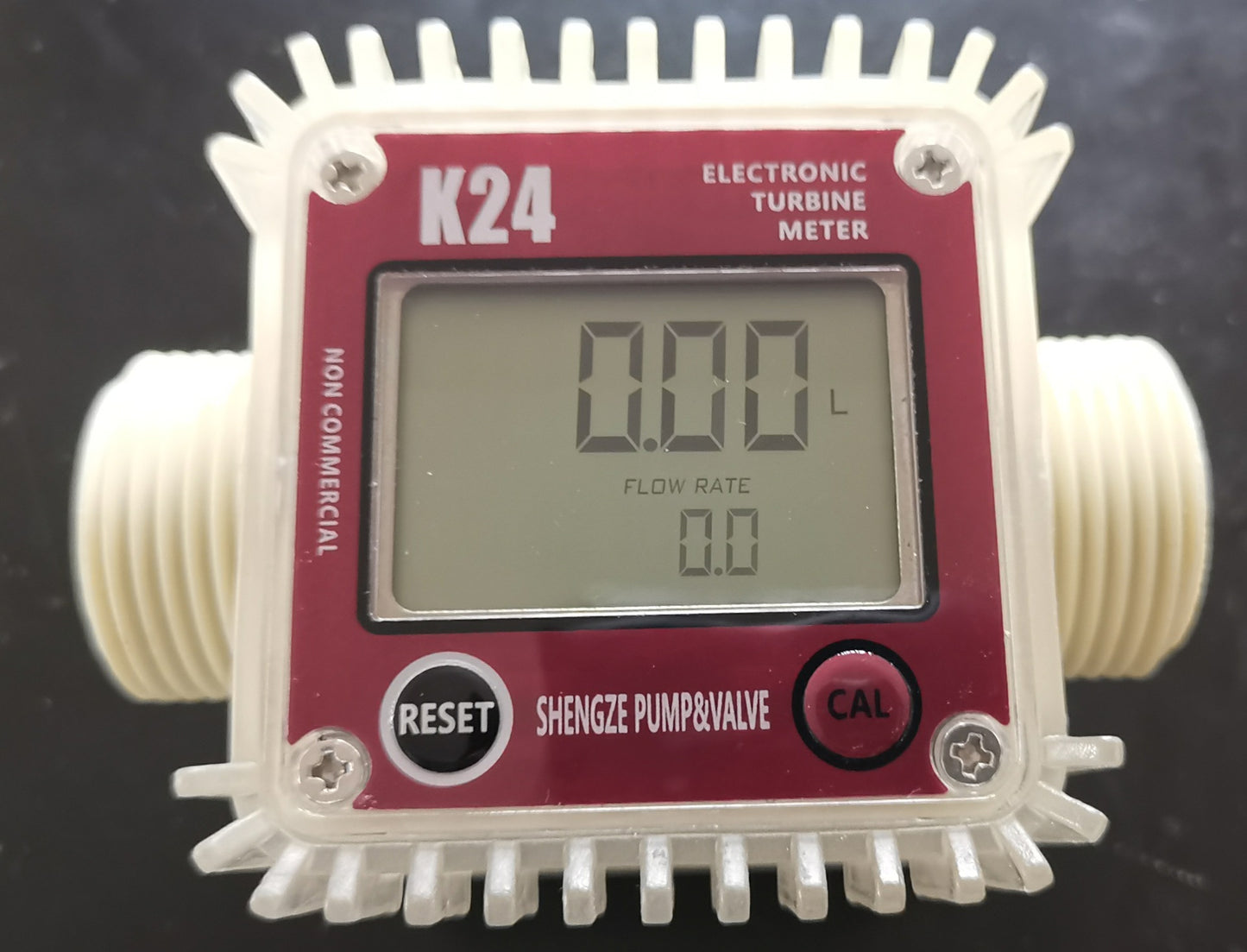

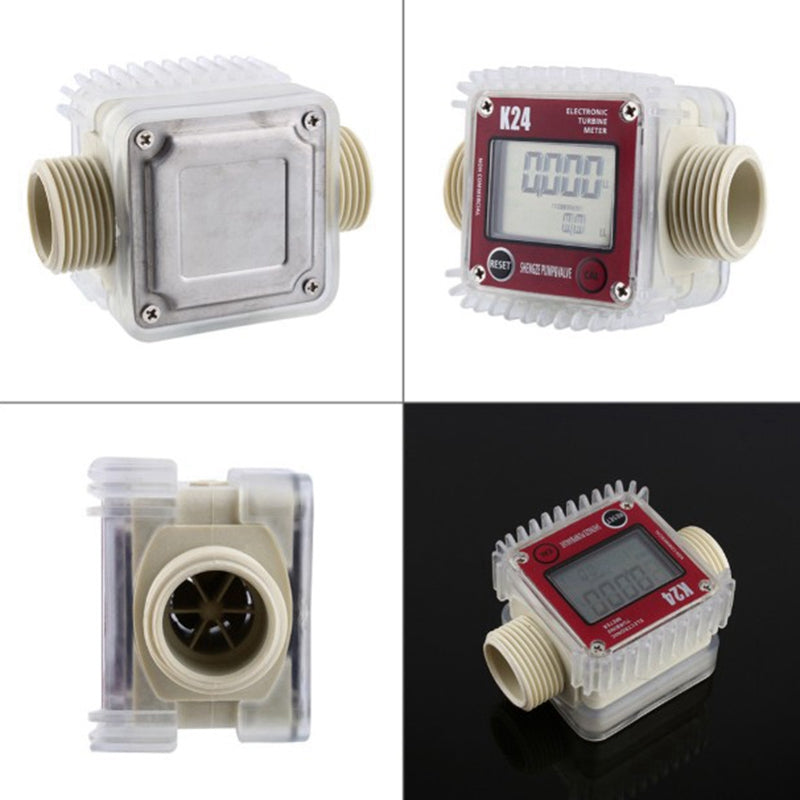

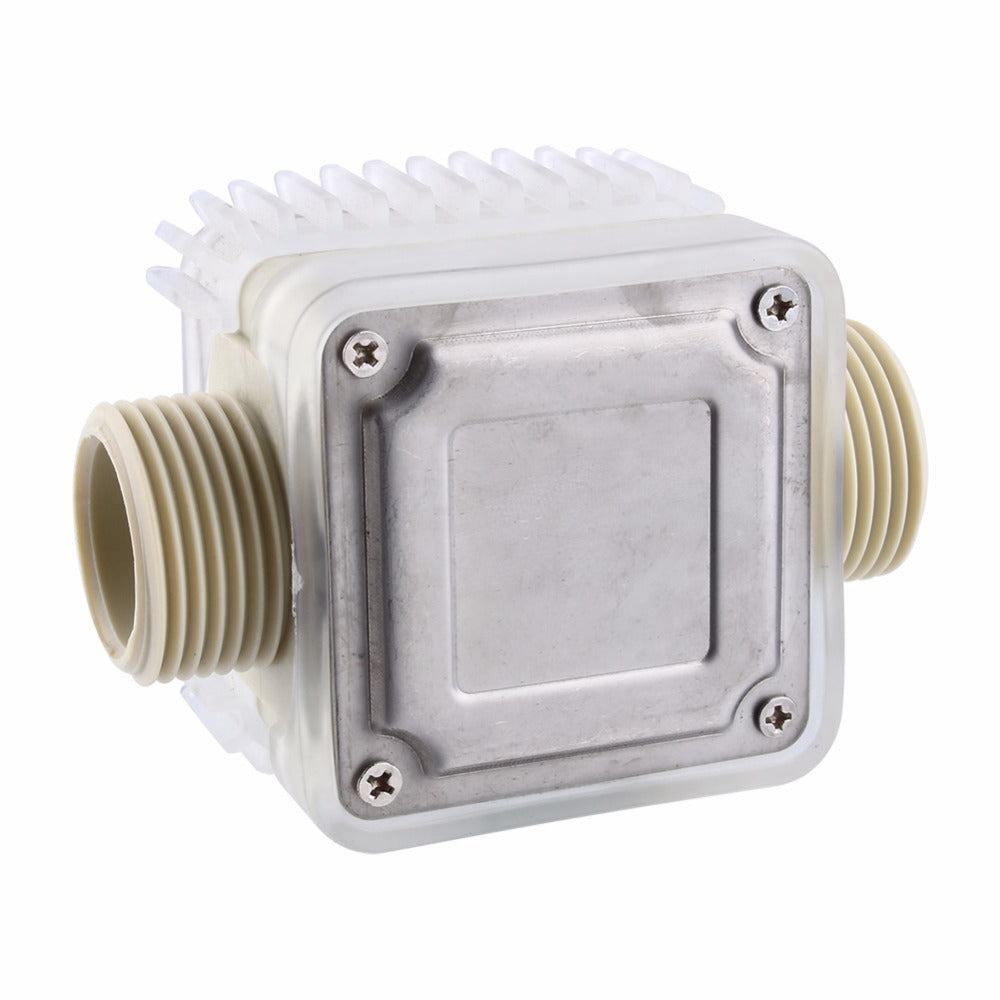

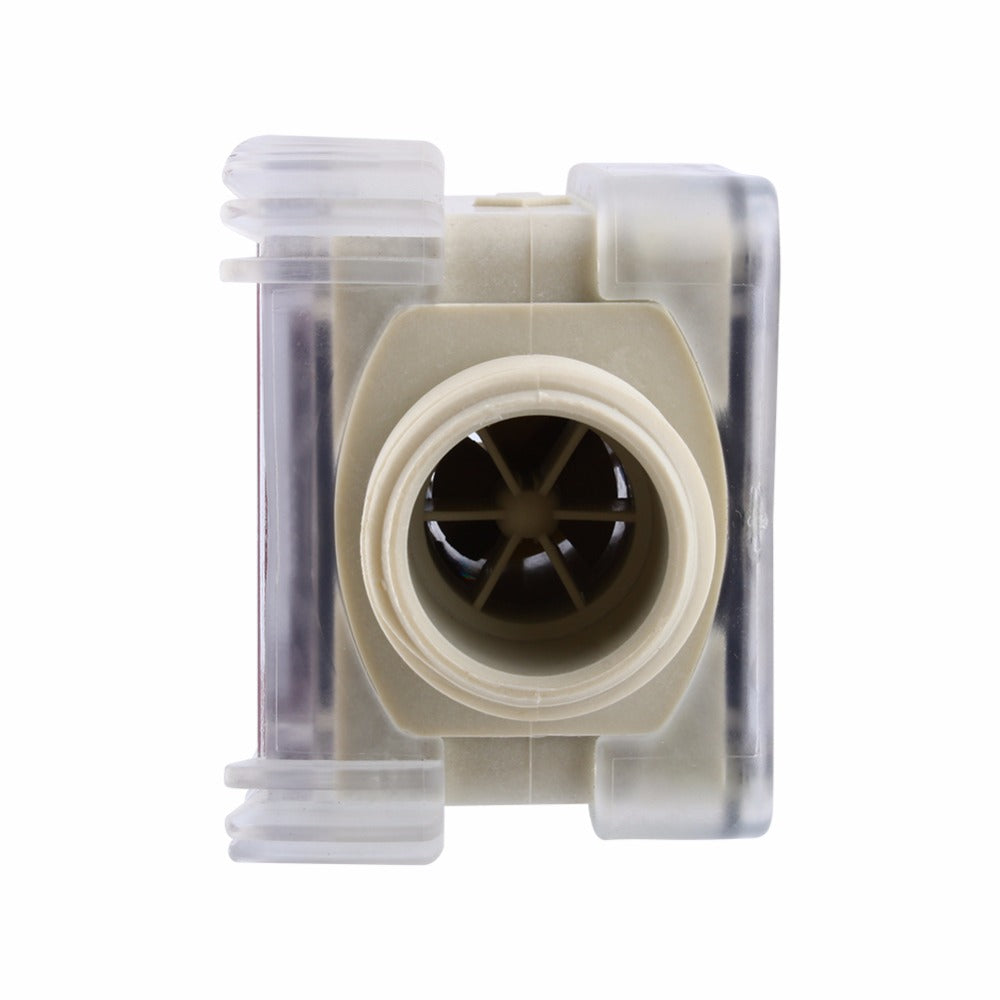

K24 digital turbine flow meter suitable for measuring a range of compatible low-viscosity liquids including water, milk, diesel, petrol and methanol.

It can also be used for farm and calf-rearing applications, such as measuring milk or milk replacer dispensed from a calf milk tank or trailer through a hose and dispensing nozzle.

Model: K24
Connection: 1" BSP female thread
Length: 103 mm
Flow Range: 10–90 L/min
Measurement Accuracy: ±1%
Repeatability: ±0.5%
Maximum Working Pressure: 5 bar
Operating Voltage: 2.3–3.3 V
Battery: 2 × AAA batteries (Batteries included)
Battery Life: Up to 2 years standby / up to 1 year under normal measuring use
Water Resistance: IPX3

Measurement Units:
Litres (L)
Gallons (GAL)
Pints (PTS)
Quarts (QTS)

Single Batch Total: 0.00–9,999.9
Accumulated Total: 0.00–999,999.9
Reset Function: Yes

Typical Applications

Suitable for use with compatible liquids in applications such as:

Farm calf milk dispensing systems
Milk and milk replacer transfer
Water transfer
Diesel and petrol dispensing
Agricultural machinery and fuel tanks
Workshop and industrial liquid transfer

Important: Always check that the meter materials are chemically compatible with the liquid being measured before use. This product is not advertised as a certified food-grade meter unless independently confirmed for the intended application.

Changing the Measurement Unit

1. From standby or the current volume display, press and hold CAL + RESET for approximately 5 seconds.

2. Enter the unit selection mode.

3. Press RESET to cycle through:

LTR → GAL → PT → QT → LTR

4. Select the required unit.

5. Press and hold the MENU button for approximately 3 seconds to exit.

The accumulated total will automatically convert to the selected measurement unit.

Low Battery Indicator

When battery voltage drops to approximately 2.2–2.4 V, the display will show LBat, indicating that the batteries should be replaced.

Package Includes

1 × K24 Digital Turbine Flow Meter

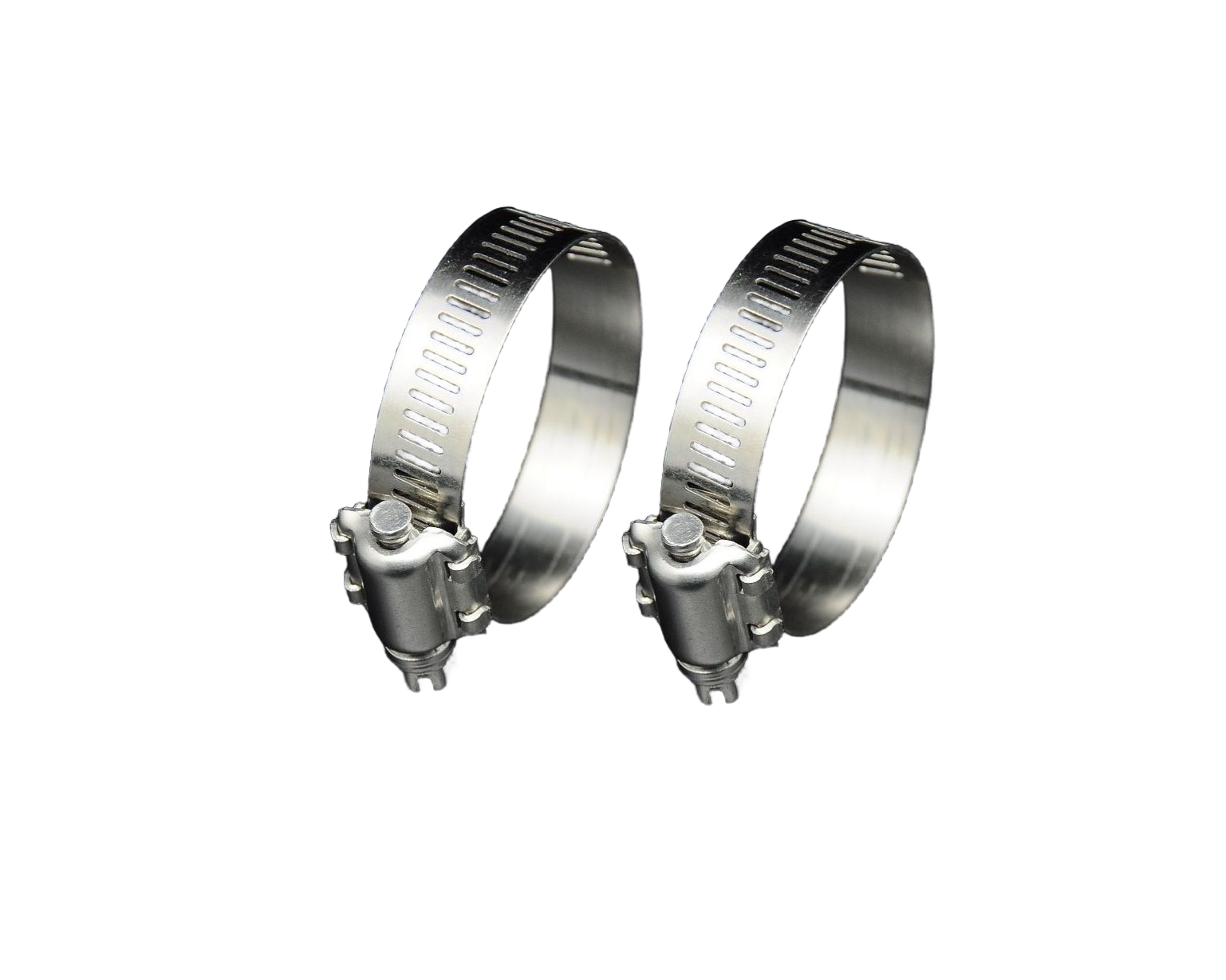

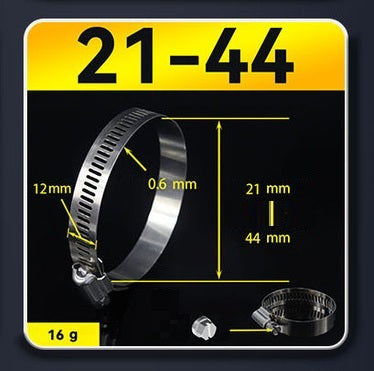

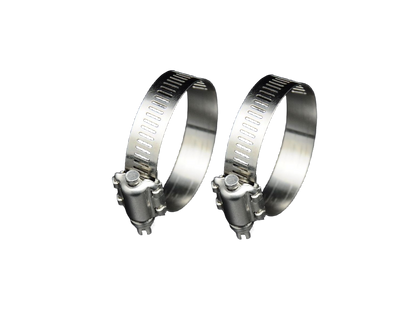

2 × 21–44 mm SS304 Stainless Steel Hose Clamps

Batteries included.
