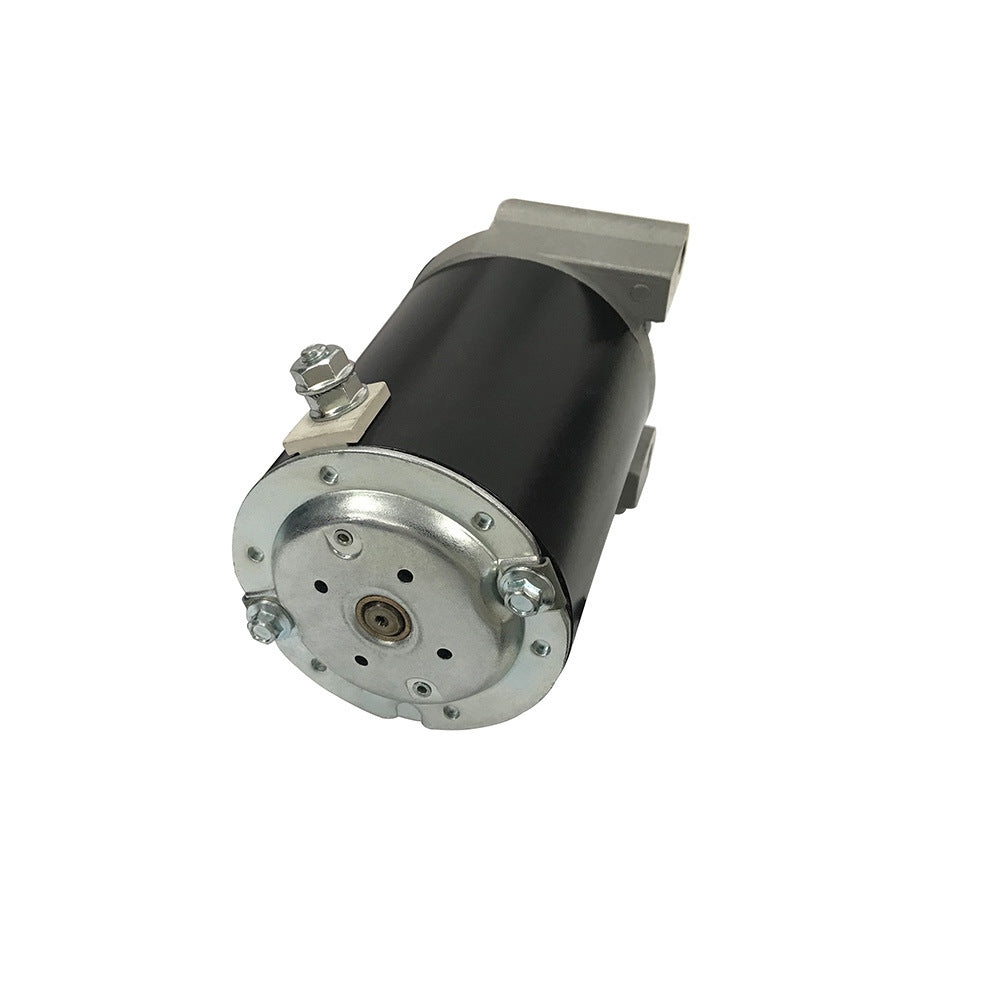

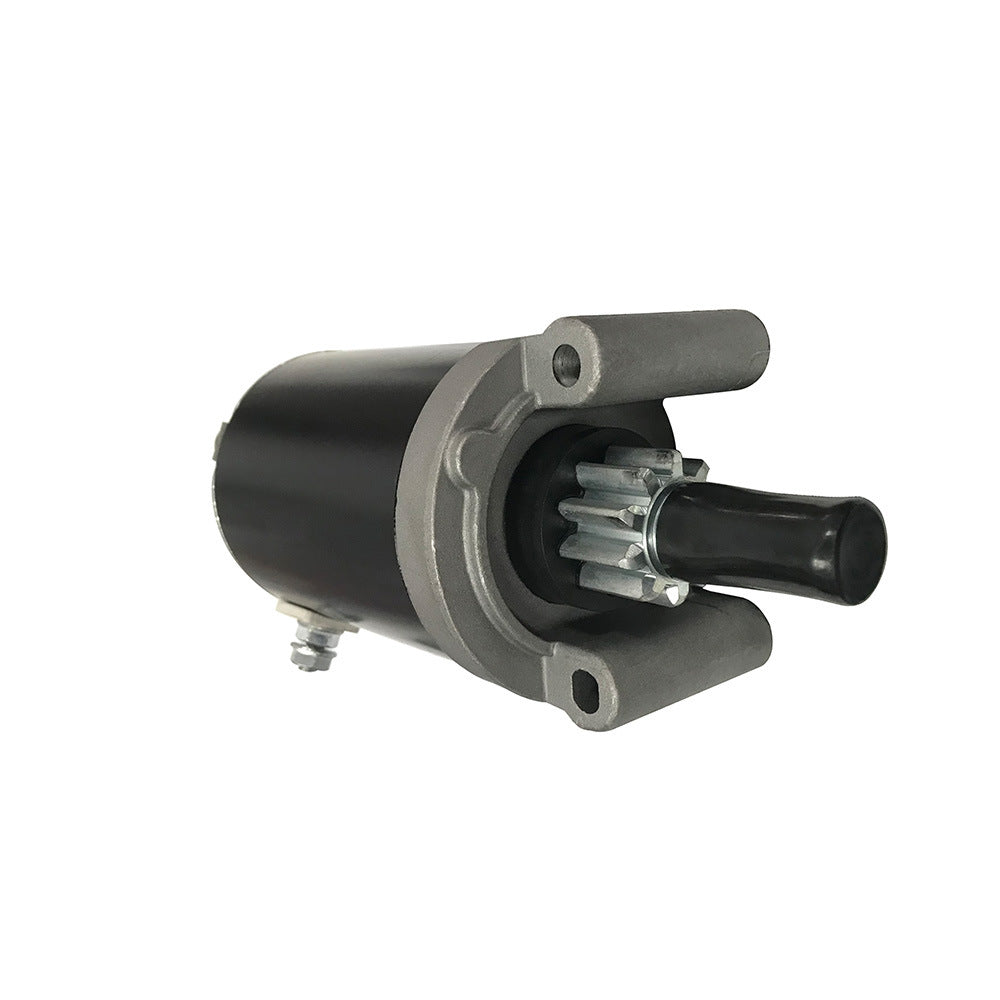

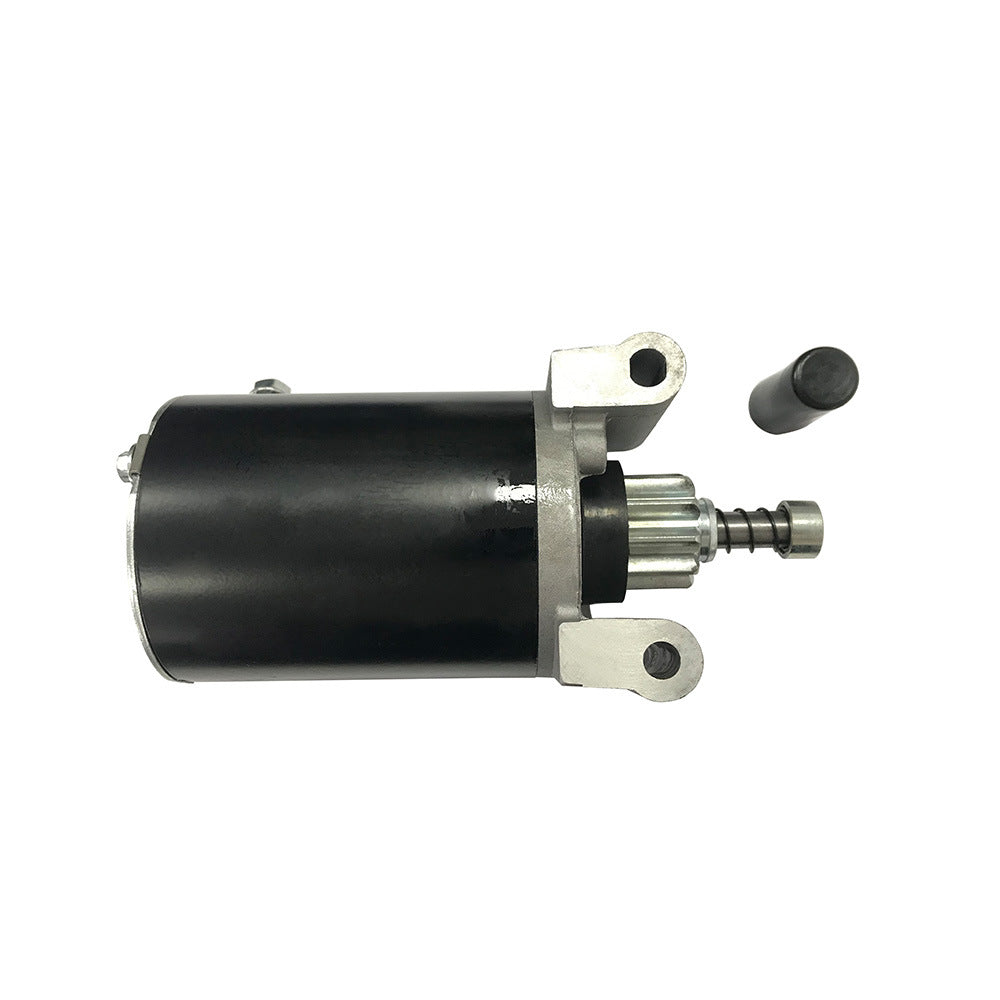

10 Teeth Starter Motor For Kohler 2509807 12-098-10 25-098-03 25-098-04

OEM Part No:  2509807, 12-098-10, 25-098-03, 2509806, 1209810, 1209817S, 2509803, 2509804S, 2509805S, 2509806S, 2509807S
Fits Kohler models CH14, CV12.5, CV13, CV14, CV15, CV16, CV18, CV20, CV22, CV23, CV460, CV461, CV490, CV491, CV675. 10 tooth gear.

Specs: Starter, Voltage: 12, Rotation: CCW, Teeth: 10

Replaces OEM Numbers: Atlantic: 1400-0178, J & N: 410-21040, Pic: 106-526, Barsanco: 690-062, Cargo: 113017, Dixie: MS-6001, Dixie New: 206-07120, John Deere: AM117130, AM120729, Kohler: 12-098-10, 25-098-03, 25-098-03-S, 25-098-04, Minnpar: 57-2851, United Tech: 5667140-M030SM, Wilson: 91-09-1067, Wilson Small Engine: 71-09-5775

Compatible With/Replacement For: John Deere STX30 1989-1993, STX38 1989-1996, STX46 All

Rareelectrical Brand Compatible with CASE, CAT, JOHN DEERE, KOHLER, SABRE. Please verify your OEM part number from your original unit to help ensure fitment.

Replaces:
John Deere: M117130 M120729 / Johnson Electric: 5667140 / Kohler: 12-098-10 25-098-03 28-098-07S

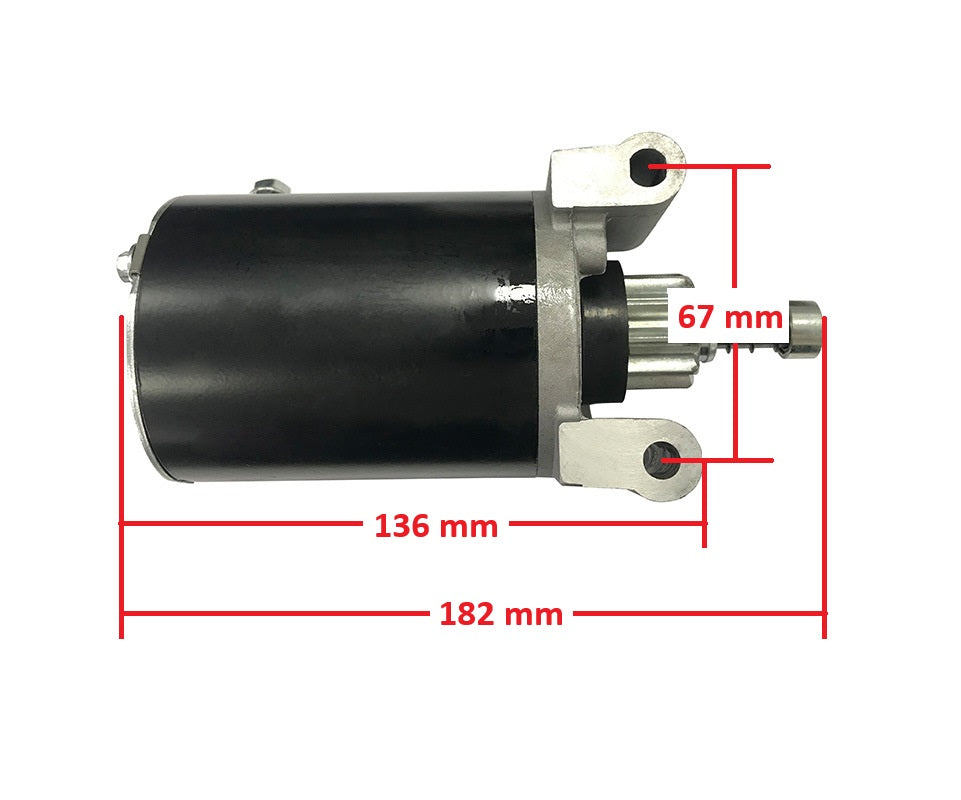

Rotation: Counterclockwise / Tooth Count: 10 / Gear Od: 1.209In / 30.7Mm / Mounting Ear 1: 8.0Mm Unthreaded / Mounting Ear 2: 8.0Mm Unthreaded / Specifications: Mounting Flanges Are 53Mm Thick / Specifications: 3.81" / 96.7Mm Field Case Length / Specifications: Battery Terminal On Field Case / Weight: 7 Lbs

Applications: Please Verify Your Oem Part Number From Your Original Unit To Help Ensure Fitment. / John Deere - Ag Tractors - Lawn Stx30 93-89 Kohler 9Hp Bendix Type / John Deere - Ag Tractors - Lawn Stx38 96-89 Kohler 12.5Hp Bendix Type / John Deere - Ag Tractors - Lawn Stx38 96-94 Kohler 14Hp Bendix Type / John Deere - Ag Tractors - Lawn Stx46 Kohler 14Hp Bendix Type / John Deere - Ag Tractors - Lawn Lt150 Kohler 15Hp Stamped Kohler #2509807 / John Deere - Ag Tractors - Lawn Lt160 Kohler

Applications: Stamped Kohler #2509807 / John Deere - Ag Tractors - Lawn Sabre 1948Gv Kohler 19.9Hp Engine Cv20s-65560, -71 / John Deere - Ag Tractors - Lawn Sabre 1948Hv Kohler 19.9Hp Engine Cv20s-65560, -71 / John Deere - Ag Tractors - Lawn Sabre 2148Hv Kohler 21Hp Engine Cv22s-75529, -42 / John Deere - Ag Tractors - Lawn Sabre 2354Hv Kohler 23Hp Engine Cv23s-75531, -41 / Scott's Tractor S2348 01-00 Kohler 23Hp...

John Deere
LT150 Kohler Engine 15HP All
LT160 Kohler Engine 16HP All
STX30 Kohler Engine 9HP 1989-1993
STX38 Kohler Engine 12.5HP 1989-1996
STX38 Kohler Engine 13HP 1994-1996
STX38 Kohler Engine 14HP 1994-1996
STX46 Kohler Engine 14HP 1995-Up

Sabre 1948GV Kohler Engine 19.9HP All
Sabre 1948HV Kohler Engine 19.9HP All
Sabre 2148HV Kohler Engine 21HP All
Sabre 2354HV Kohler Engine 23HP All

Scott's Tractors-Lawn
S2348 Kohler Engine 23HP 2000-2001
