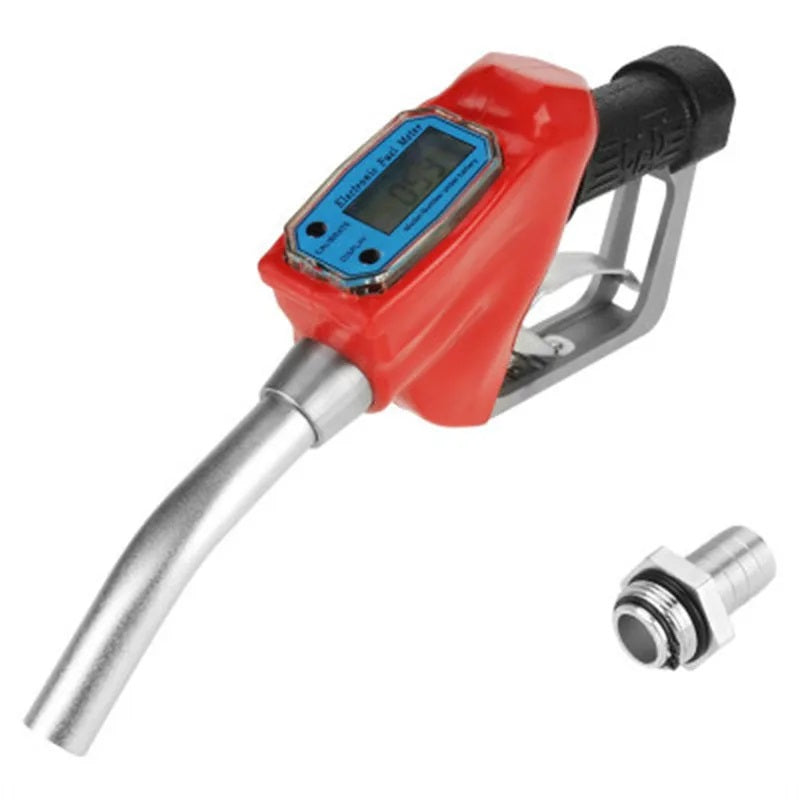

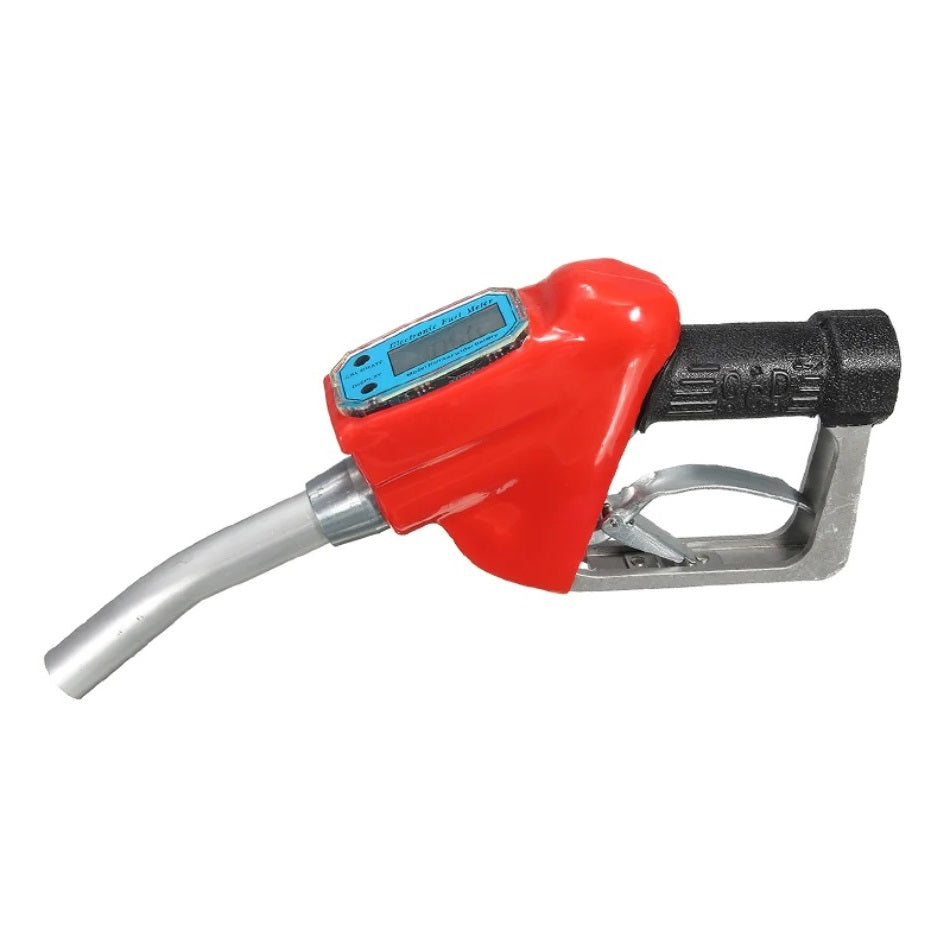

Digital Filling Nozzle Gun Fueling Nozzle with Flow Meter

Digital Filling Nozzle Gun Fueling Nozzle with Flow Meter

This filling gun nozzle can be used to measure the pipeline fluid.
Well-designed gun nozzle is resistant to drop or leaking, small in size, accurate measurement, and simple to operate.
It provides four units of Liters, Gallons, Pints, and Quarts.

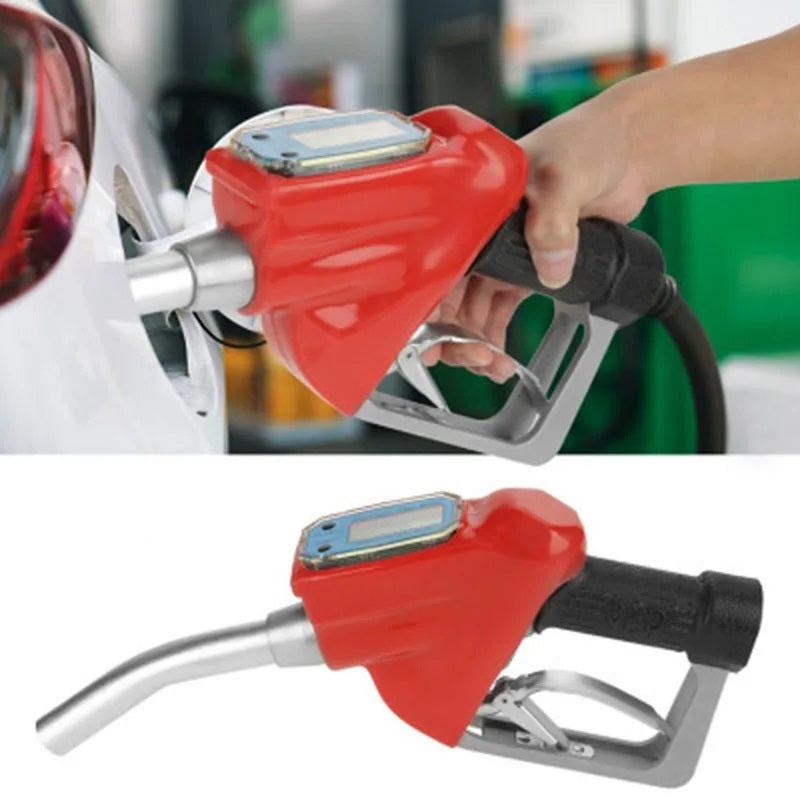

Used for filling fluids such as petrol, diesel, water, and milk, it is a great filling equipment for farms, factories, etc.

For domestic use only, not for commercial use.

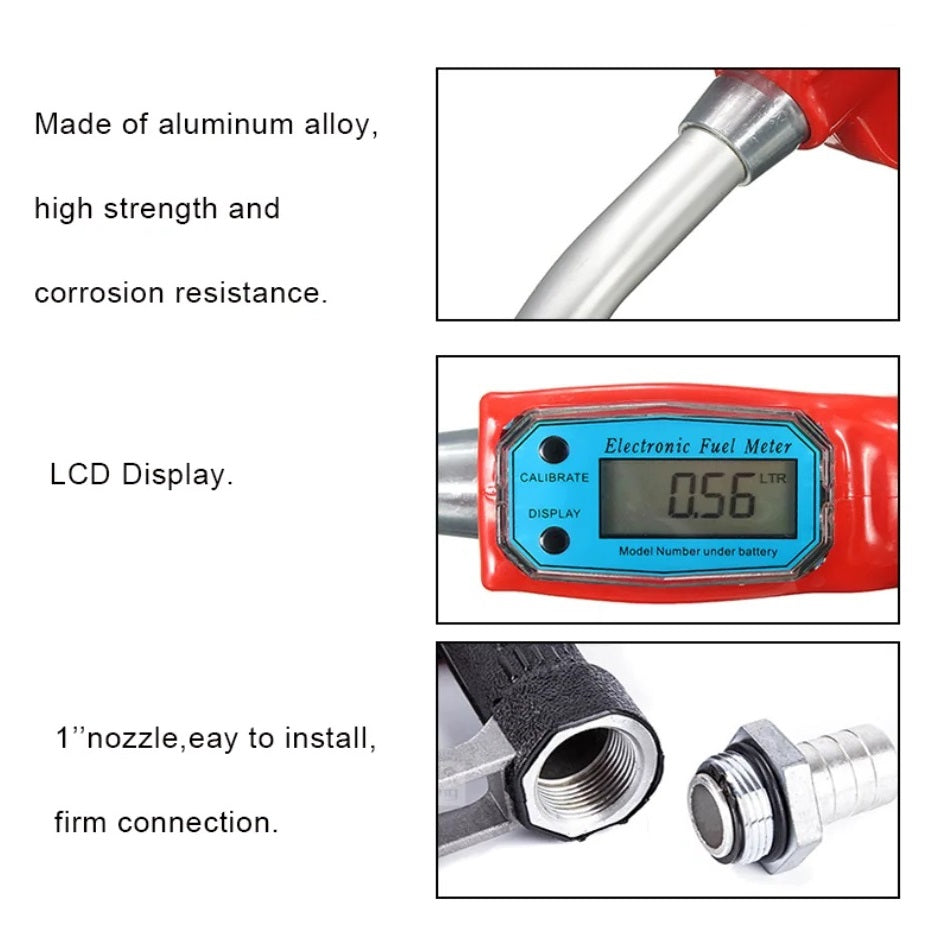

Material: Aluminum

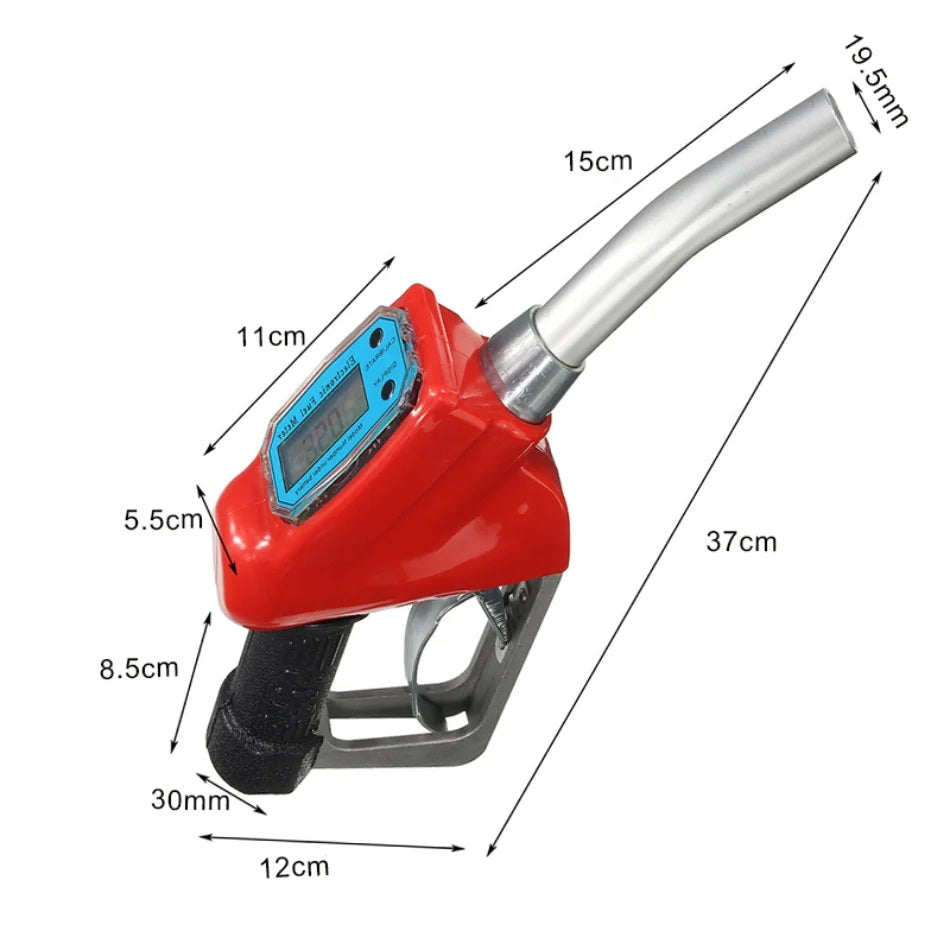

Nozzle Size: 1"(25mm)
Measurement range: 4.5m3/h
Pressure: 0.25MPA
Suitable Fluid: Petrol, Diesel, Water, Milk
Weight: 1415g(approx.)

Instruction:
1. Two buttons; (CALIBRATE) and (DISPLAY)
2. When changing the unit, press, and hold (CALIBRATE) button for 5 seconds, and the digits on display will flash from left to right; press (DISPLAY) to move to the last position, and the unit will flash from the top to bottom, then press (CALIBRATE) to select unit.
3. Standby state: The standby state is a low power consumption state; when there is measurement pulse input, it will display real-time filling quantities.
4. The measurement range is 9999.9, if over this range, it will automatically reset.
5. Real-time filling amount reset: Press the (DISPLAY) button to reset the real-time quantity. Cumulative quantity reset: take out the battery, and then put the battery back in, press and hold (DISPLAY) to reset cumulative quantity.
6. The default unit of real-time measurement is Liter (LRT).
7. At standby state or when it shows real-time filling quantity, press (CALIBRATE) to display cumulative filling quantity.
8. Release (CALIBRATE) button or when there is measurement pulse input, it will return to display of real-time filling quantity.

Package Content:
1 x Filling Gun Nozzle

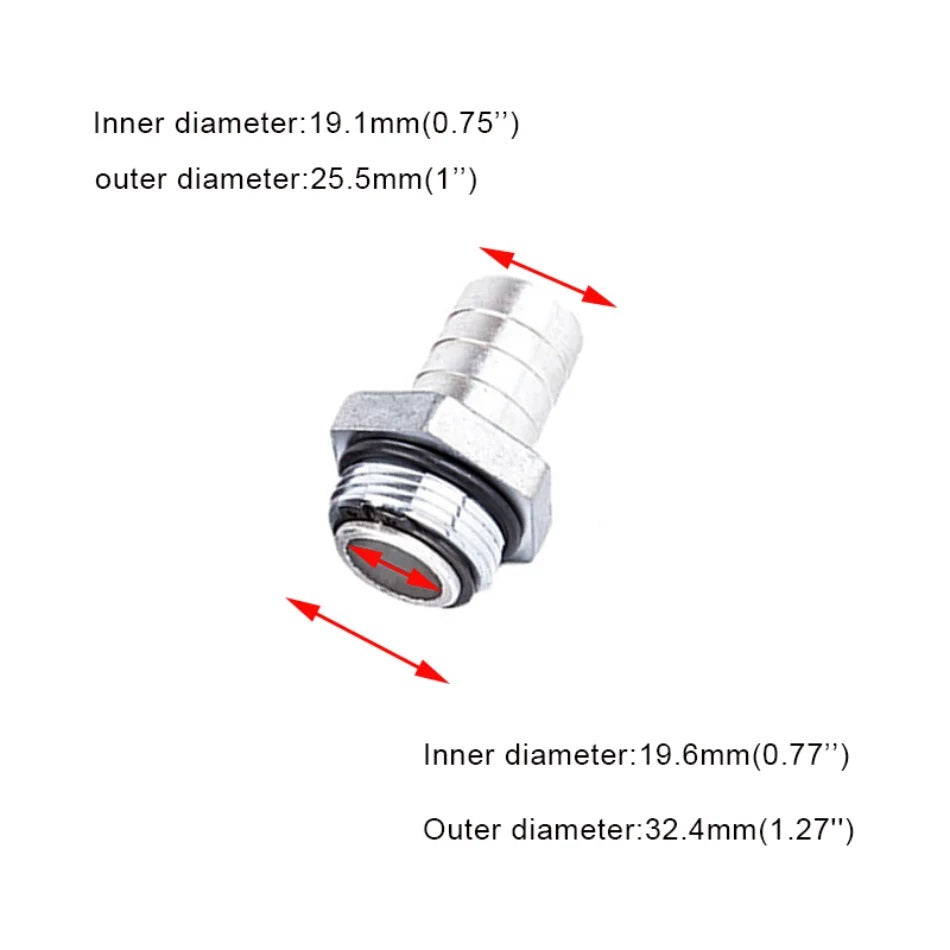

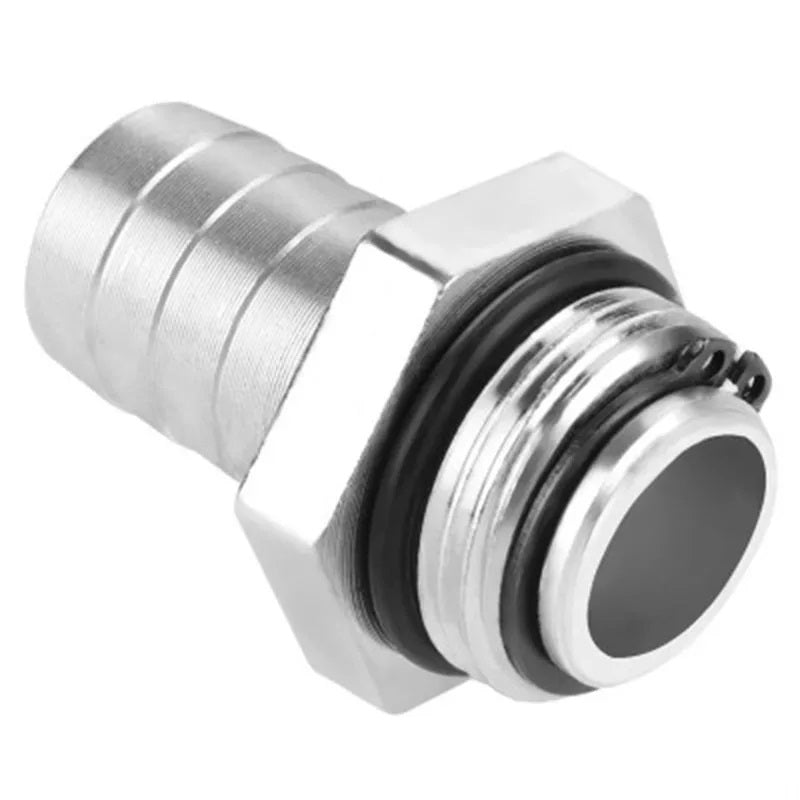

1 x Connector
