AM102551 5 Pin metal Ignition Switch with 2 keys MTD 725-0267 925-0267
AM102551 5 Pin metal Ignition Switch with 2 keys MTD 725-0267 925-0267
Couldn't load pickup availability
5 Pin metal Ignition Switch with 2 keys MTD 725-0267 925-0267
OEM Part No: AM102551, 21064, 725-0267A, 925-0267, 532365402, 23-0660, 3497644，7250267A, 9250267, 230660
This part replaces but not limit:
00012120, 00012120P
135798, 1734196, 1754207, 1754207P
1813185, 1813523, 1813578, 1820080, 1908112, 1908112P
725-0267, 725-0267A, 725-0267AP, 725-0267B, 725-3004, 900-2003, 925-0267, 925-0267A, 7250267, 7250267A, 7250267AP, 7250267B, 7253004, 9002003, 9250267, 9250267A
GW-1734196, GW-1754207P, GW-1908112, GW-1908112P, GW-B1754207, GW1734196, GW1754207P, GW1908112, GW1908112P, GWB1754207
IH-132295-C1, WD-900-2003, WD-C37516, IH132295C1, WD9002003, WDC37516

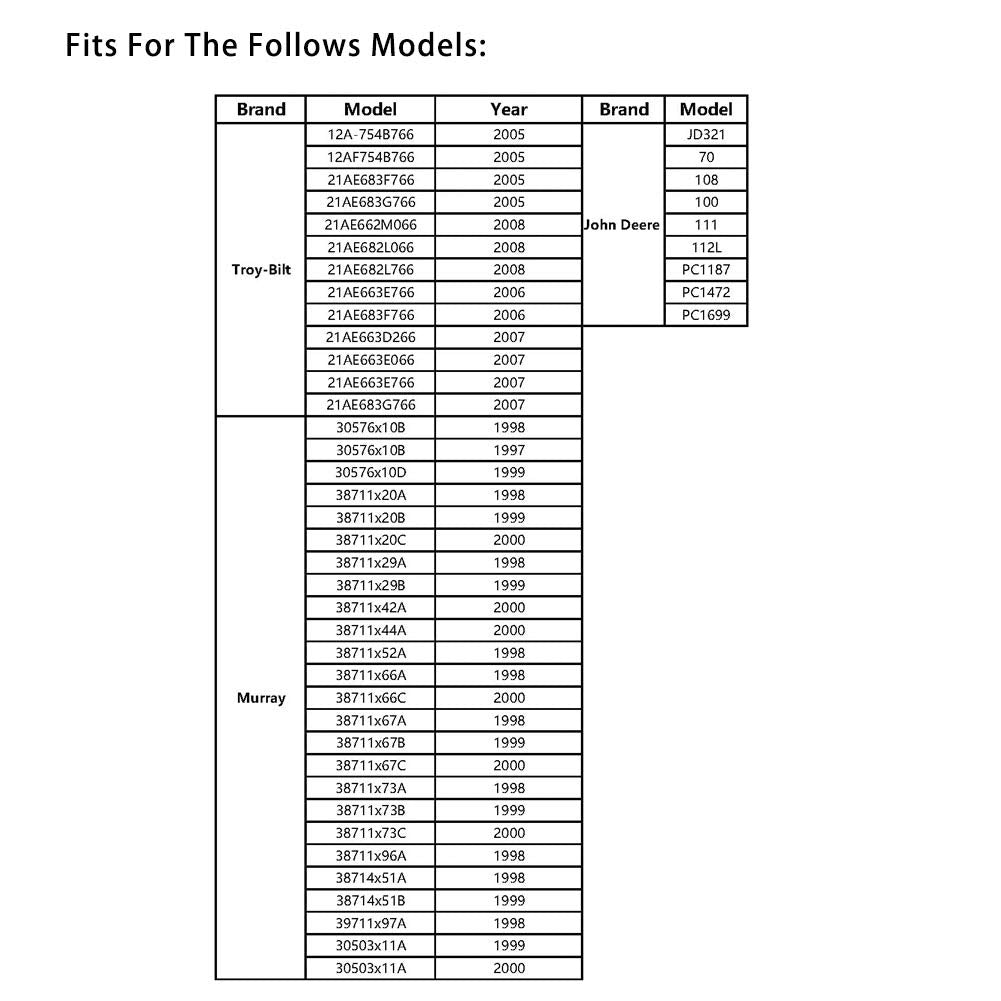

Fits selected Poulan Pro models.
Fits selected McCulloch models.
Fits Murray models
Fits Toro models
Fits MTD models 133B352D672, 134B352D672, 135B452D672, 135C450D678, 135L450C678, 135N765N678, 136C450D670, 136C450D678, 136C561C672, 136H451D648, 136L450C678, 136N472F643, 136N473F643, 136N765N678, 136T675G678, 136T765N678, 13A1452C670, 13A1674G401, 13A325643, 13A334671, 13A5451F502, 13A5472F502, 13A7660G352, 13A7660G752, 13A8673G009, 13AA458C670, 13AA475C678, 13AA478A620, 13AA478A670, 13AA478A678, 13AA478E678, 13AA478F670, 13AA660F670, 13AC451D670, 13AC458C670, 13AE414E643, 13AH451F500, 13AH451F670, 13AH452F500, 13AI678G670, 13AL450C670, 13AM475F670, 13AM672G088, 13AM678F670, 13AM693F671, 13AP418E670, 13AP478A670, 13AQ672G607, 13AS678G670, 13AT765N678, 13CP798N678.
Fits selected Husqvarna models.
Fits selected Jonsered models.
Fits selected Craftsman models.

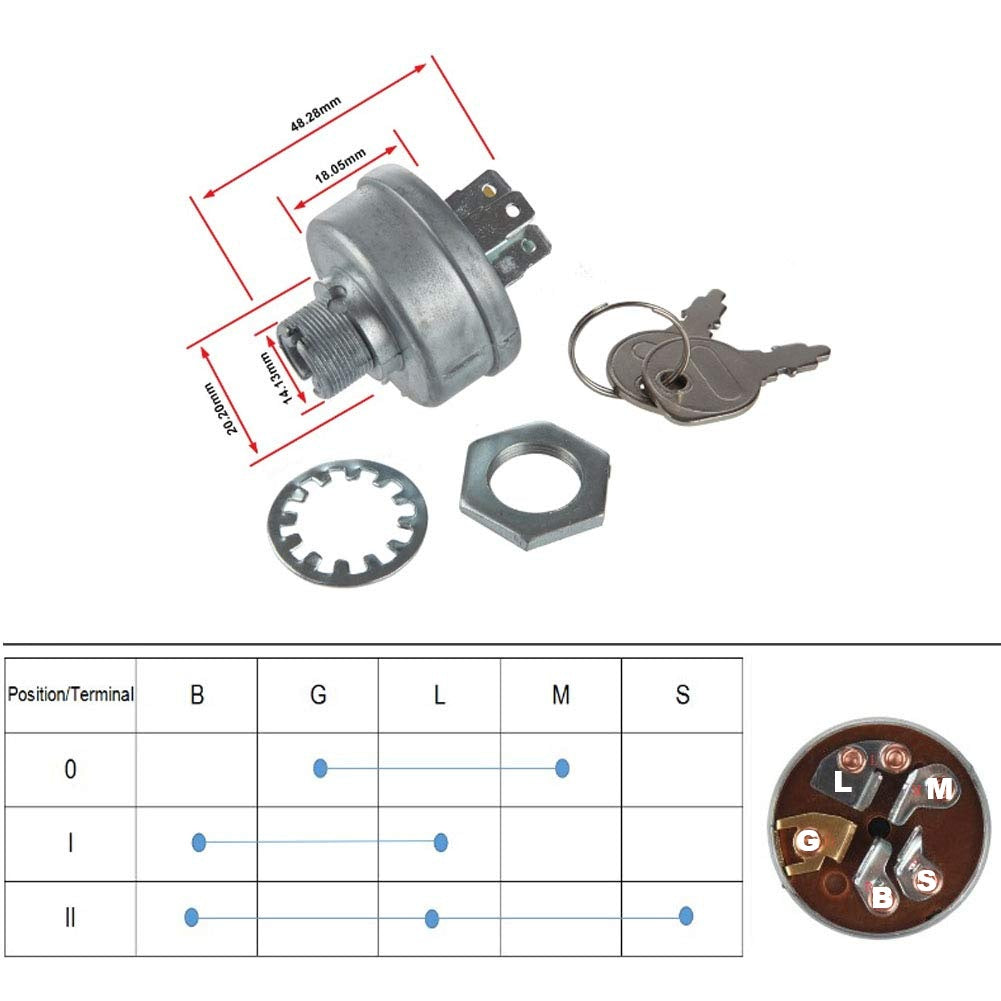

Please check your wiring carefully against the following terminal functions:
B (Battery) – 12V power from battery
S (Start) – to starter solenoid
M (Magneto) – engine kill wire (grounds to stop engine)
G (Ground) – chassis ground
L (Lights/Accessories) – optional output

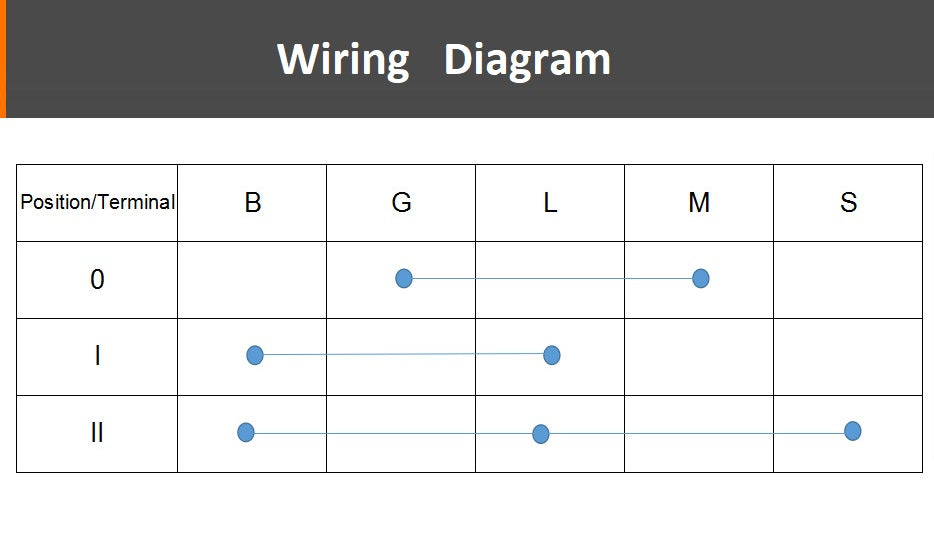

Key positions:
OFF: M + G connected (engine off)
RUN: B + L connected
START: B + S connected
If wires are connected incorrectly (especially B to ground or M), it will blow the fuse immediately.
Package Content:
1pc X Ignition Starter Switch
2pcs X Keys
Share
Not what the picture describes connections aren’t in the same spot like it shows in picture
Hi Steve,
Thanks for your message.
I’ve just checked our current stock, and the switch you received is the same as what is shown in the listing.
For this type of 5-pin ignition switch (725-0267 / 925-0267), the terminals are marked (B, S, M, G, L), and sometimes the layout can look different depending on how it’s viewed or compared with the original switch.
Could you please send me a photo of your original switch and the one you received?
I’ll help you confirm the wiring and make sure it matches correctly.
If it turns out not to be suitable for your mower, no problem — we can arrange a return and refund.
Thanks,
Kevin
