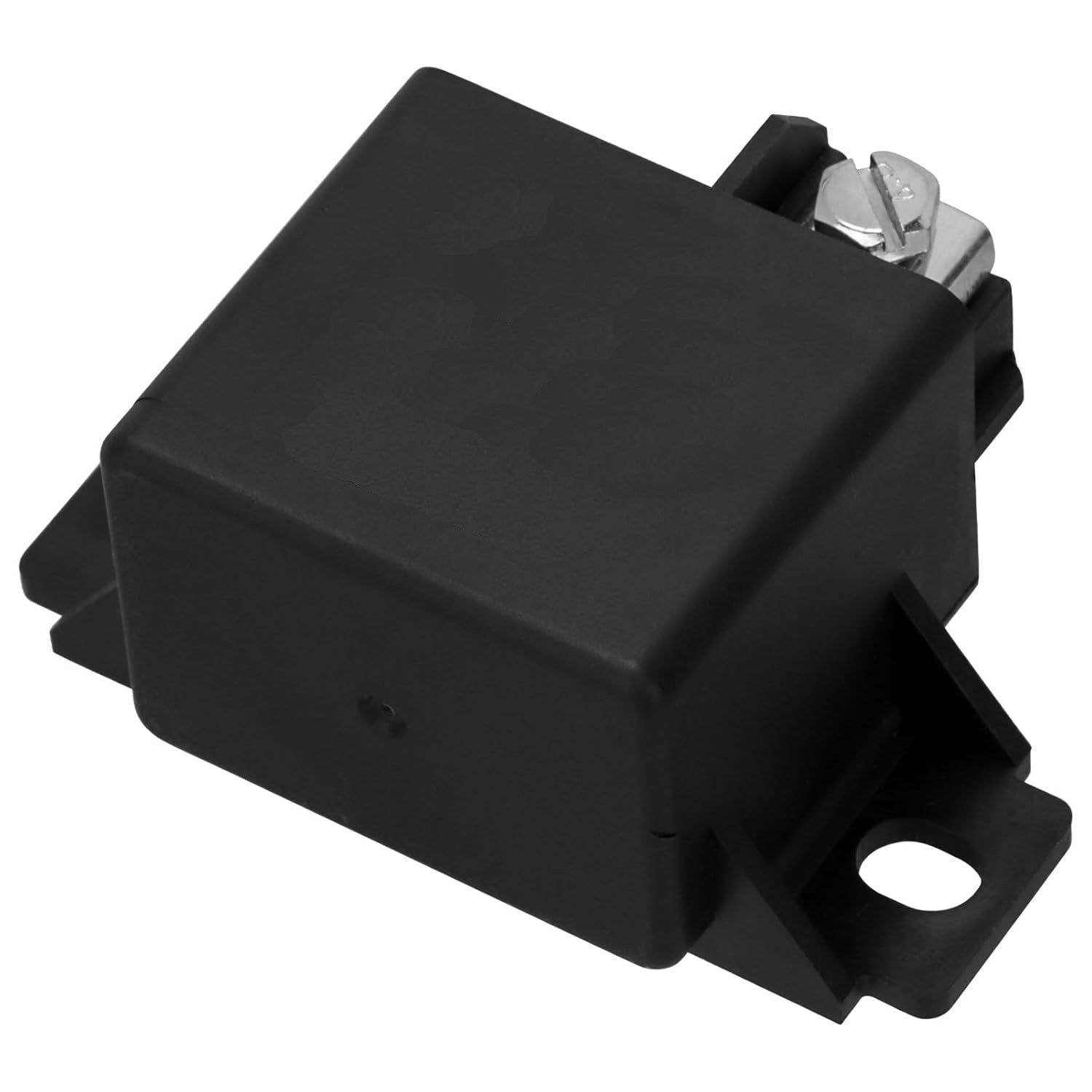

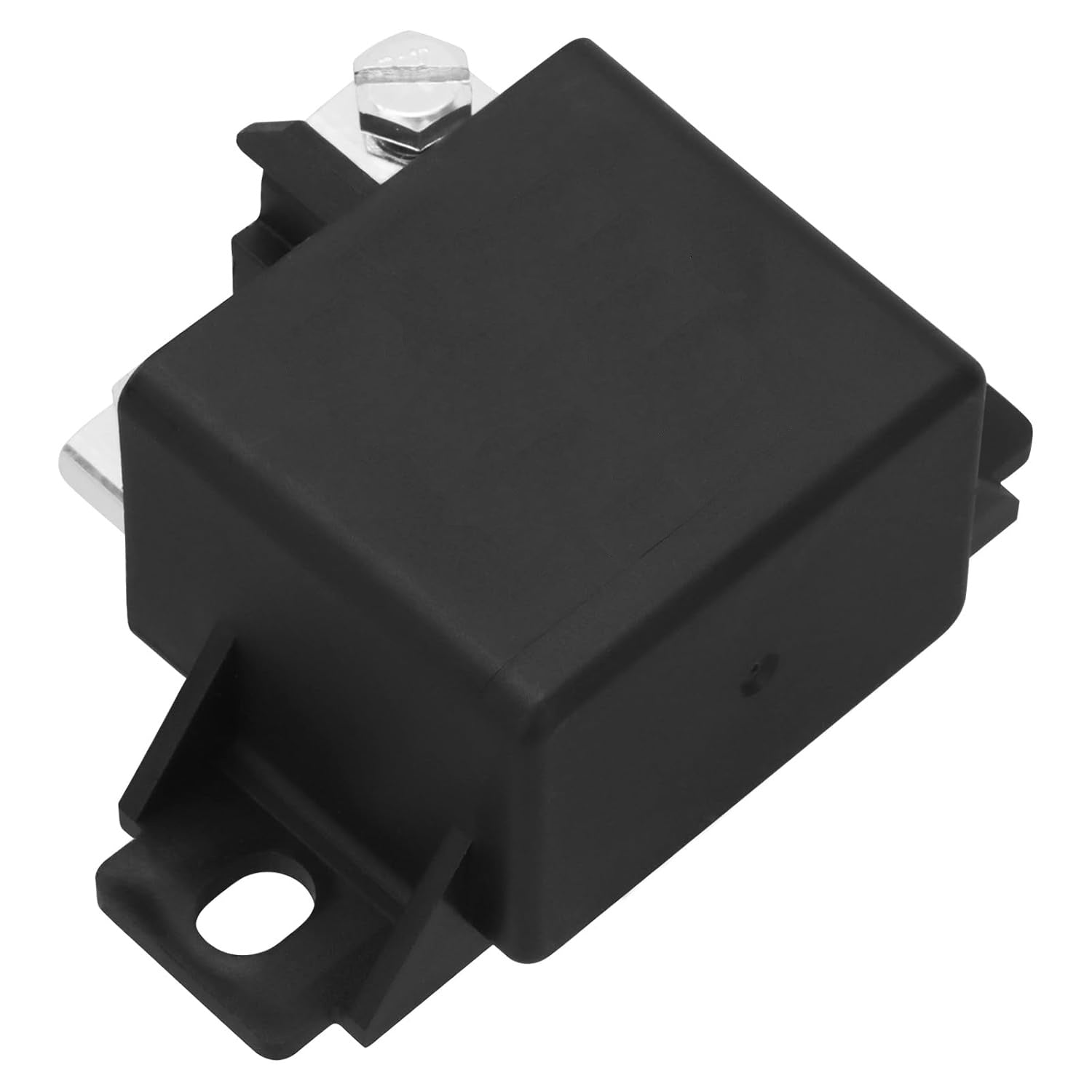

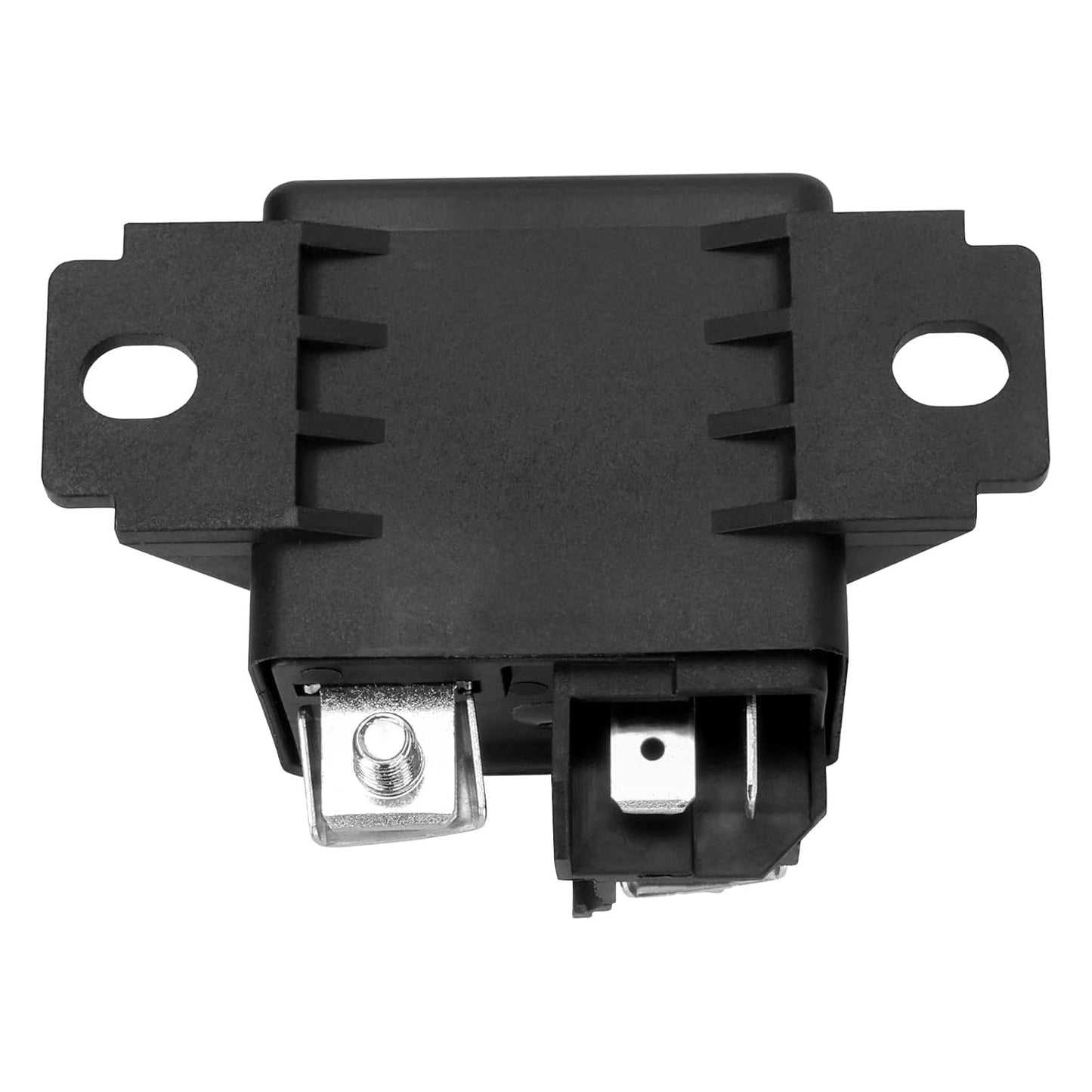

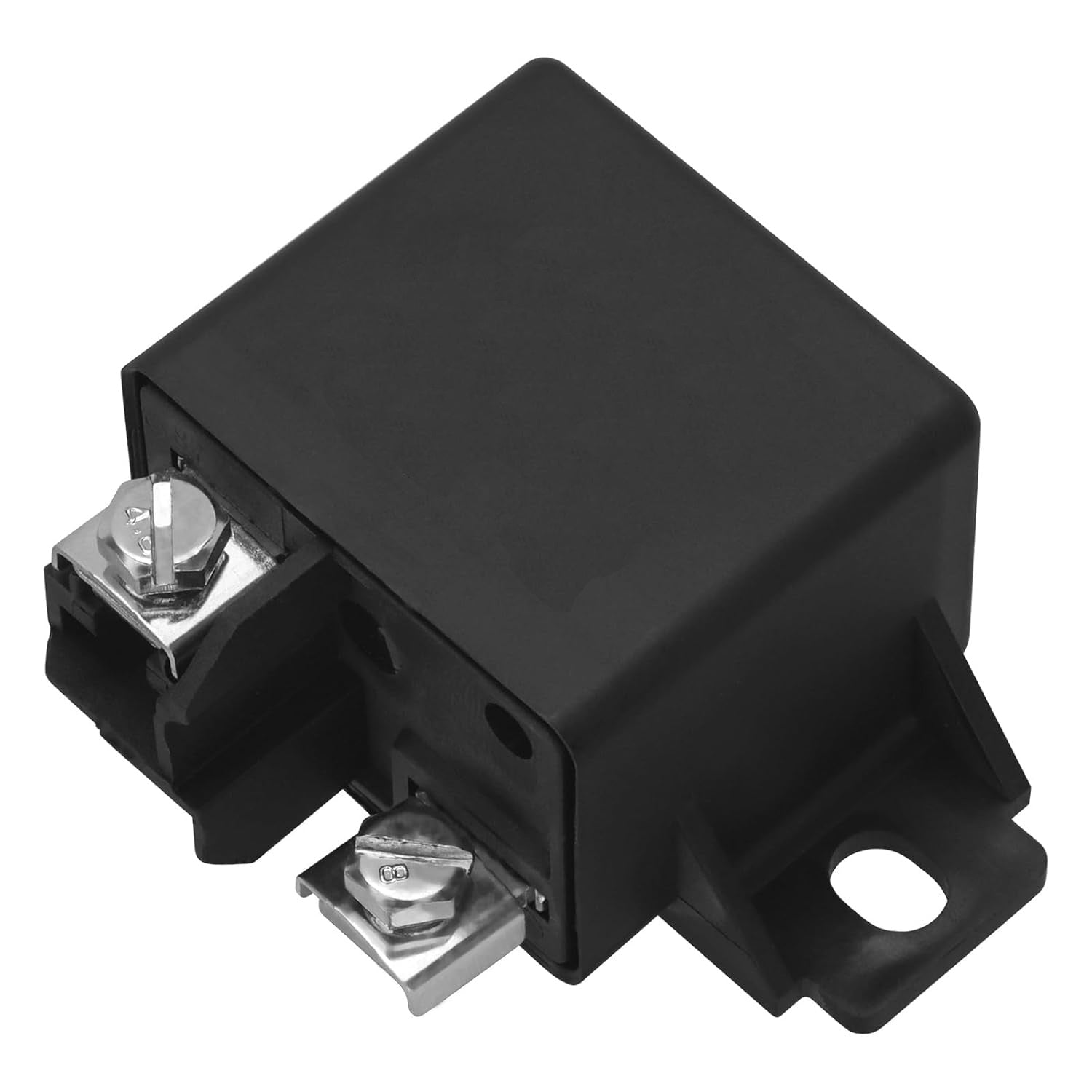

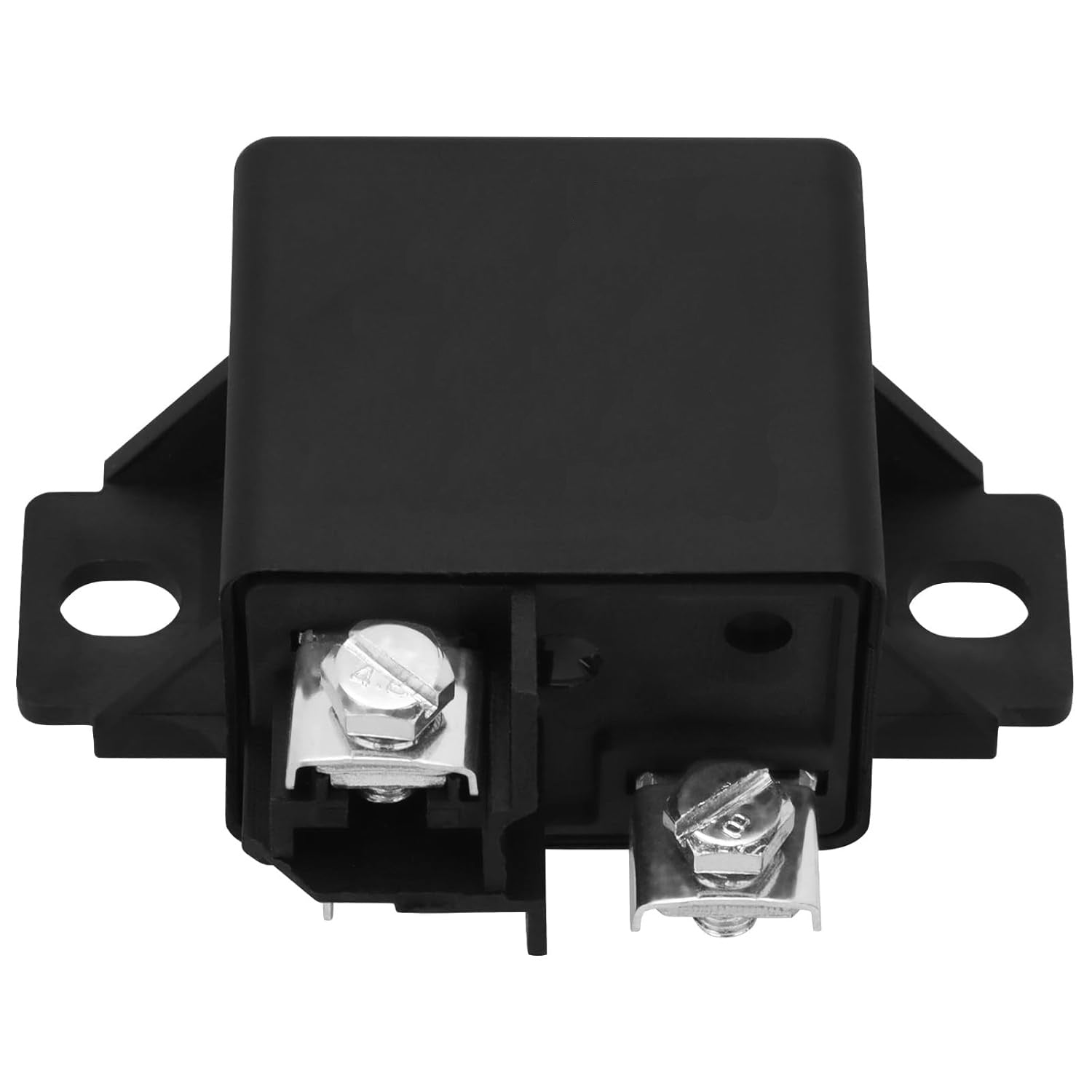

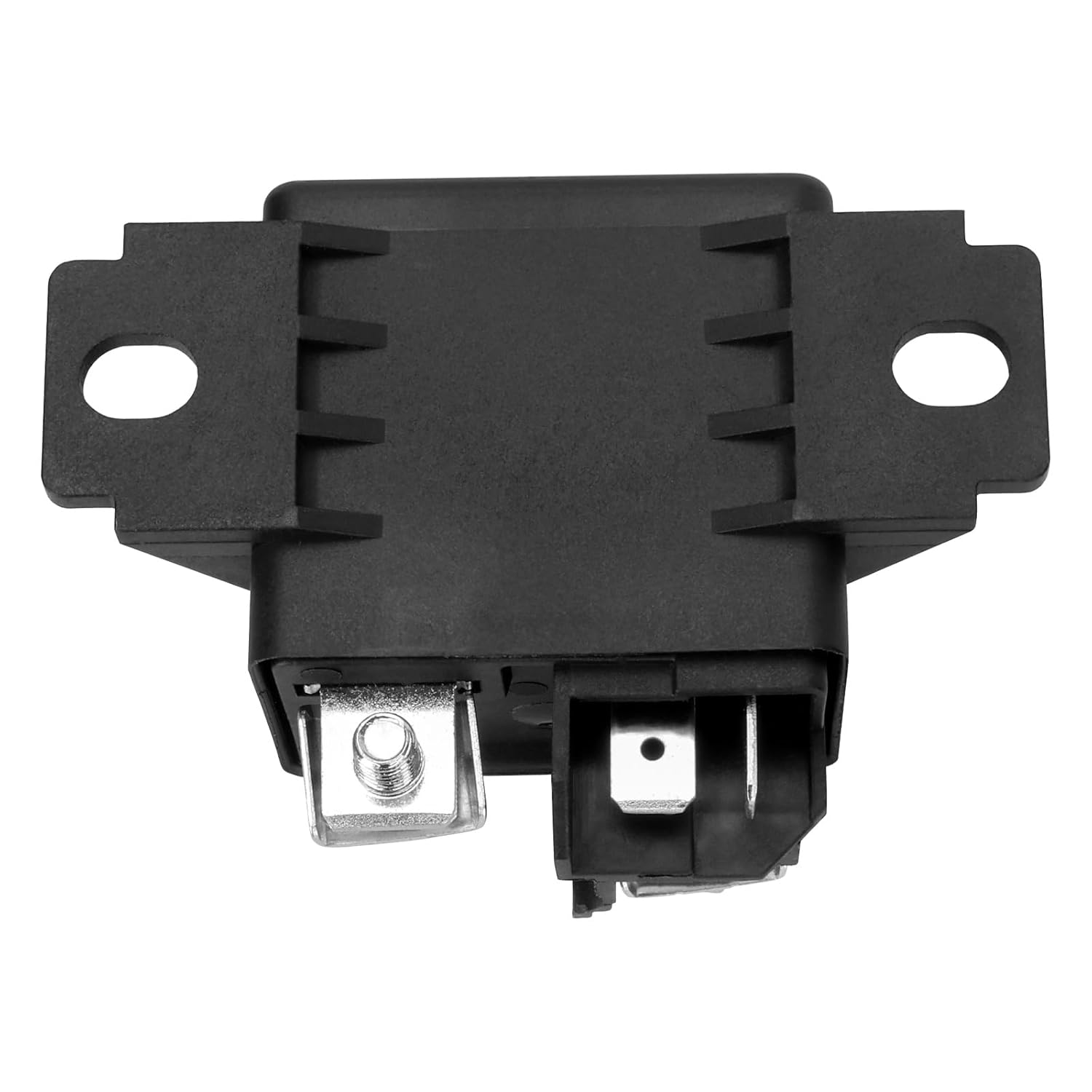

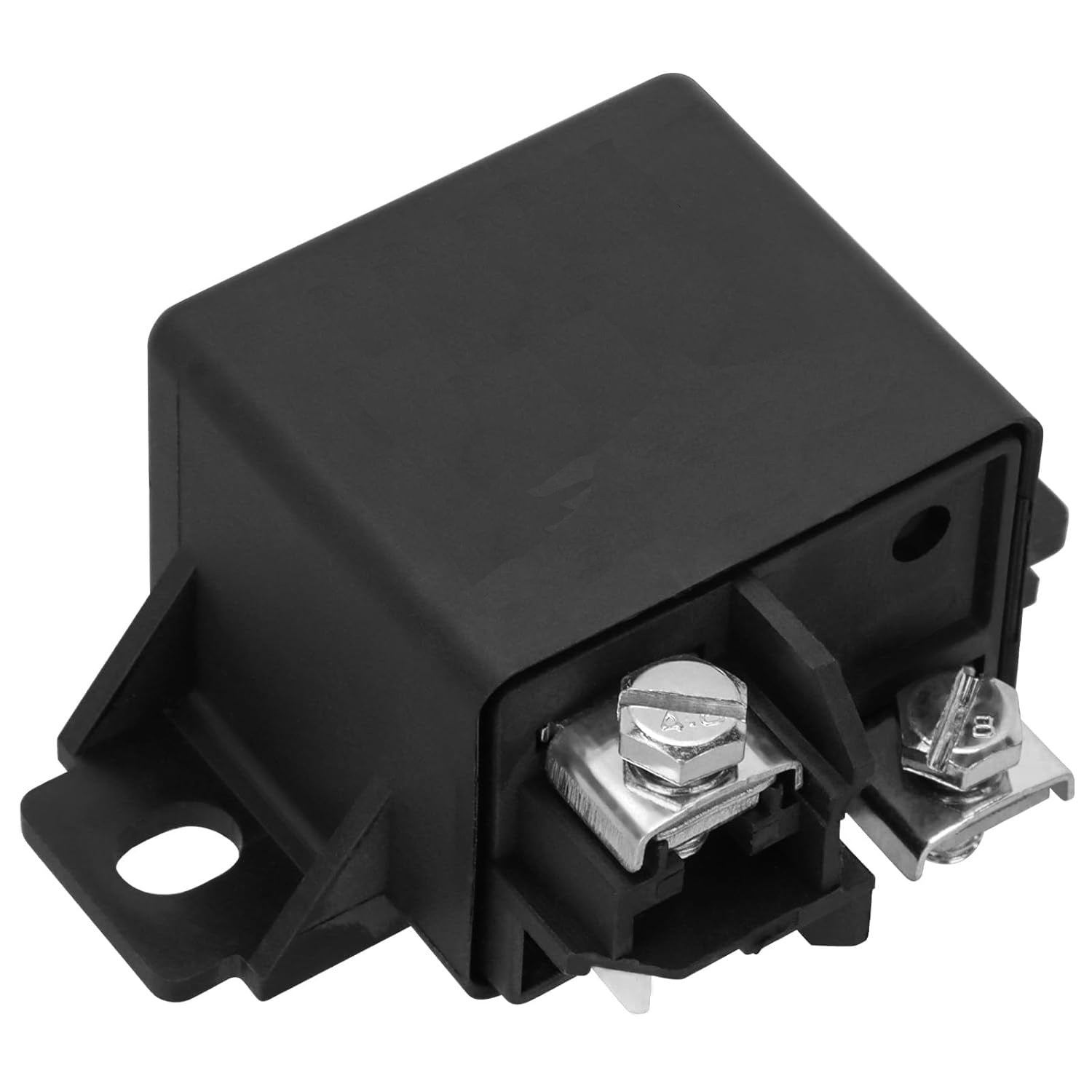

Power Relay 12V 75A – Heavy Duty, 4-Terminal SPST
Compatible with Bosch part numbers: 0332002150, 0332002150315, 0332002150BLK
Also replaces Arrowhead 240-01073

Specifications:

Condition: Aftermarket brand-new part
Voltage: 12V DC
Current Rating: 75 AMP
Contact Configuration: SPST (Single Pole Single Throw), Normally Open
Duty Cycle: Continuous
Contact Material: AgSnO₂
Coil Resistance: 80 ohms
Rated Coil Power: 4.8W
Resistance Type: Coil only
Cap Composition: Plastic
Mounting Bracket: Included
Water/Dust Resistance: IP6K5 rated

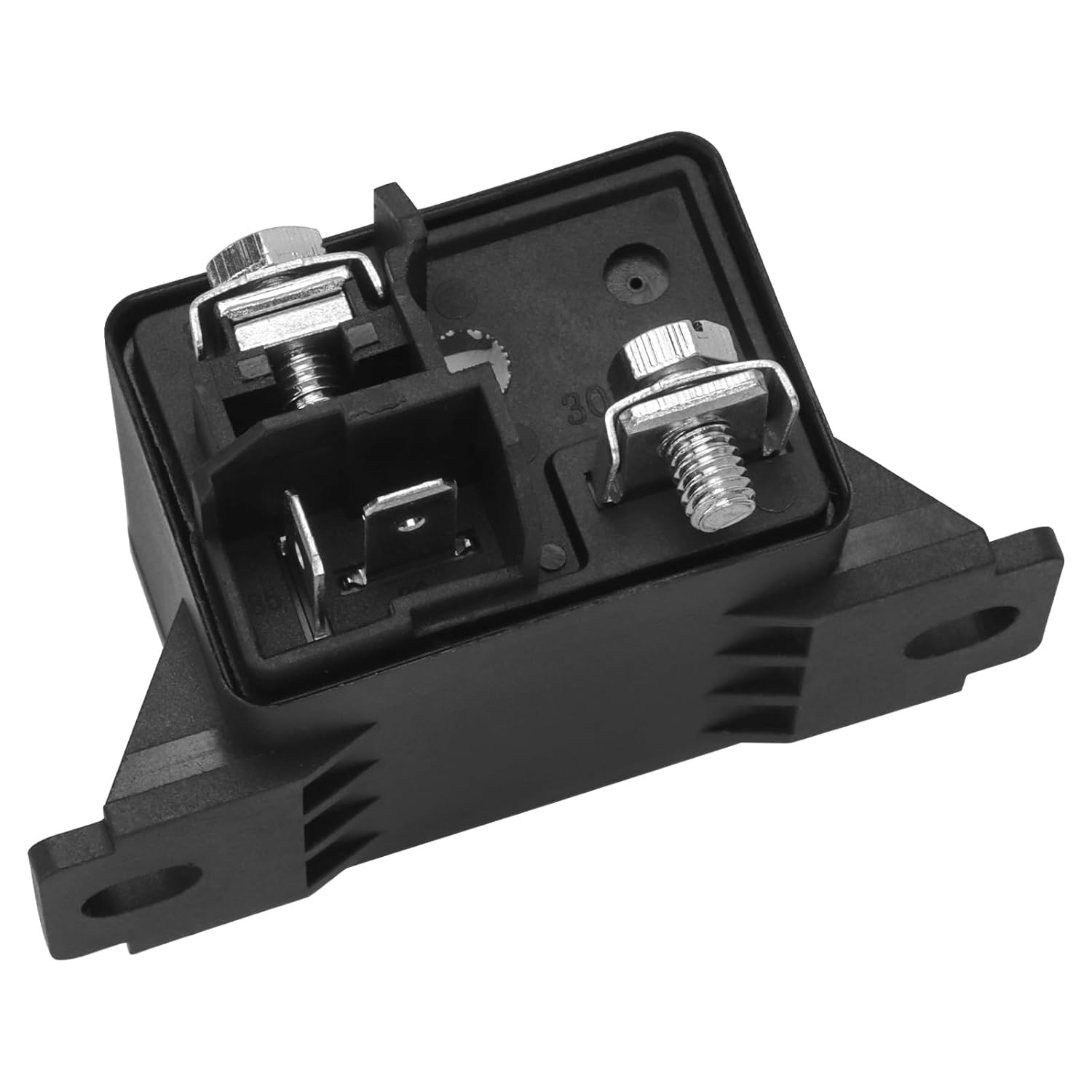

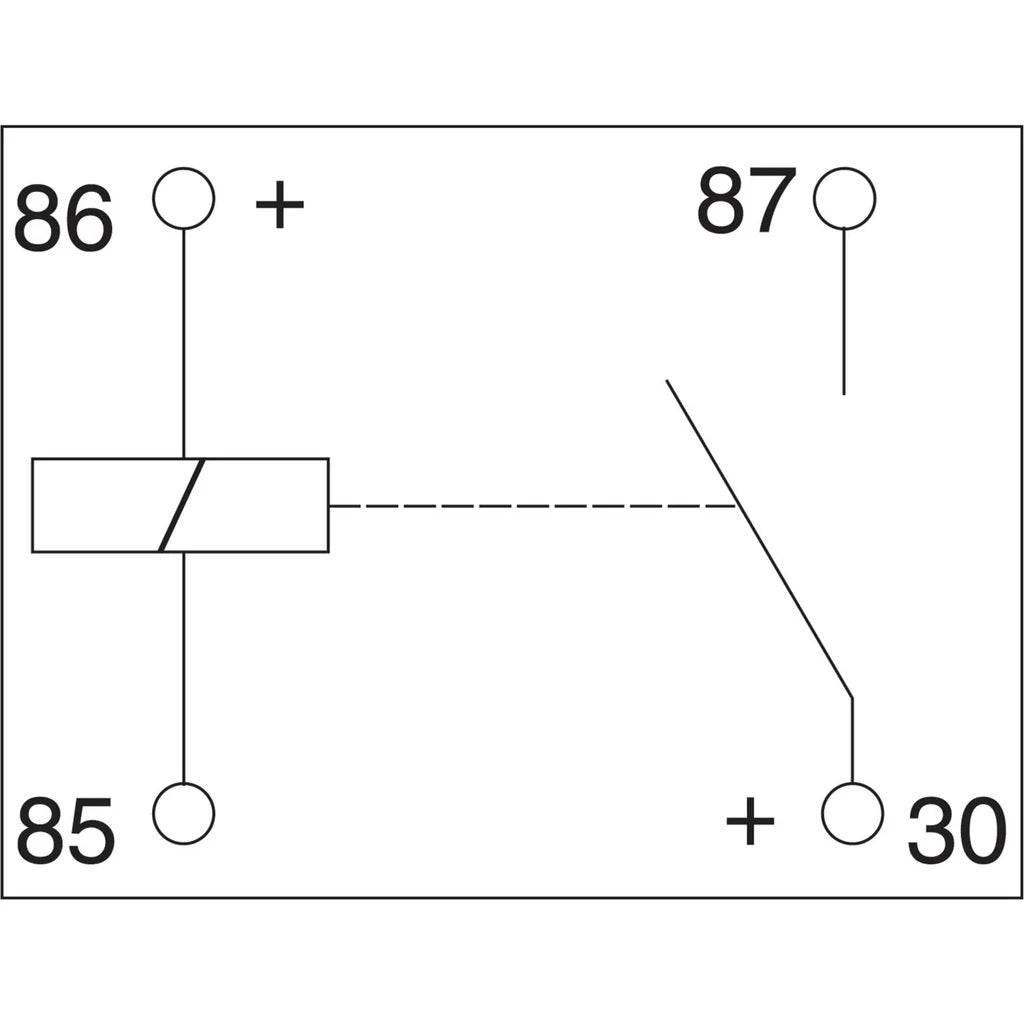

Terminal Details:
Terminal 30 (ID 2): M5-0.8
Terminal 85 (ID 3): 6.3mm x 0.8mm
Terminal 86 (ID 4): 6.3mm x 0.8mm
Terminal 87 (ID 5): M5-0.8

Heavy-duty design for automotive and industrial applications
Stable integrated base structure
Ideal replacement for starter relay and high-current power switching
No plated terminals
4-terminal configuration for simple and secure installation

Applications:
Perfect for replacing Bosch 0332002150 series relays in various automotive, marine, and machinery uses.

In the Box:
1x 75A 12V Power Relay with mounting bracket
