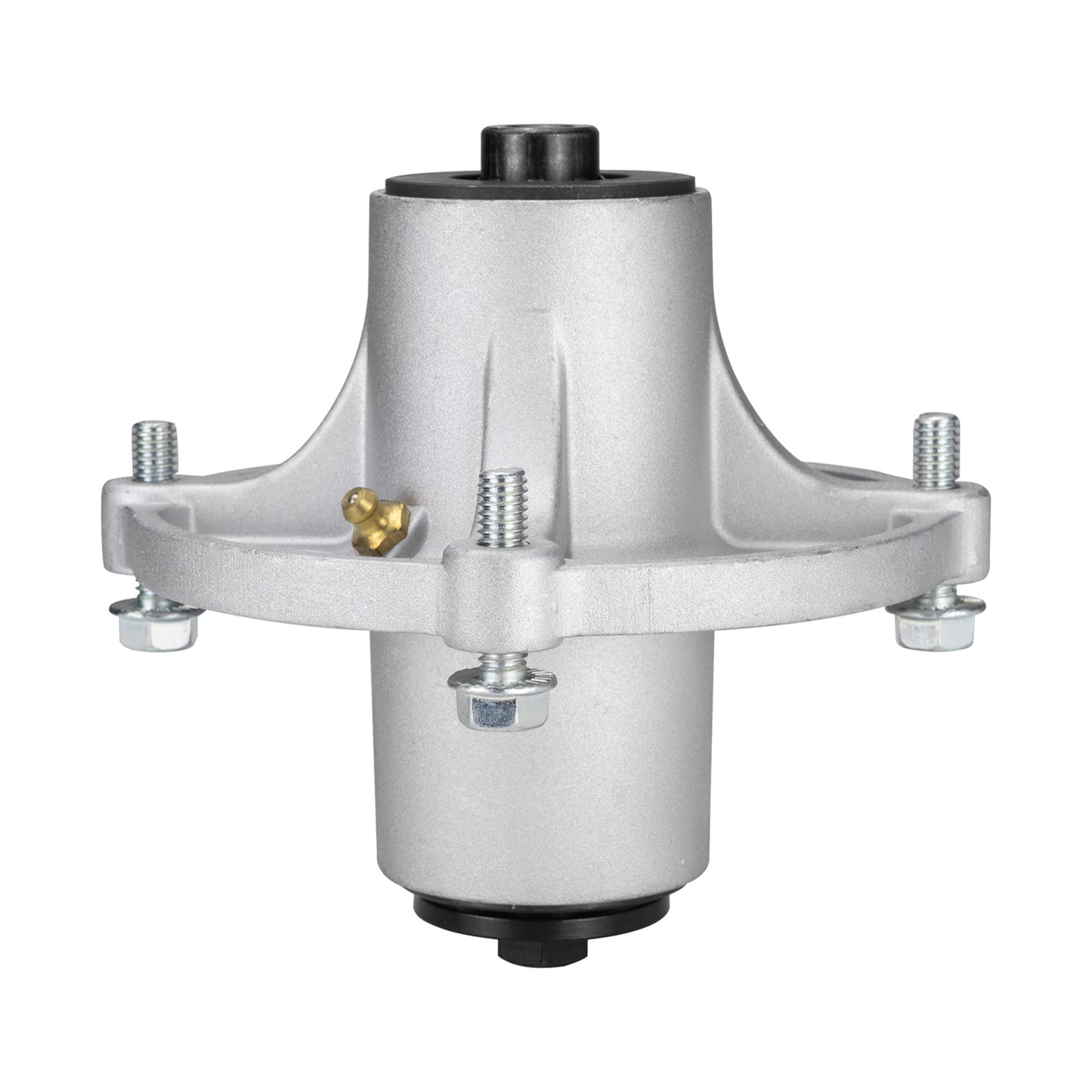

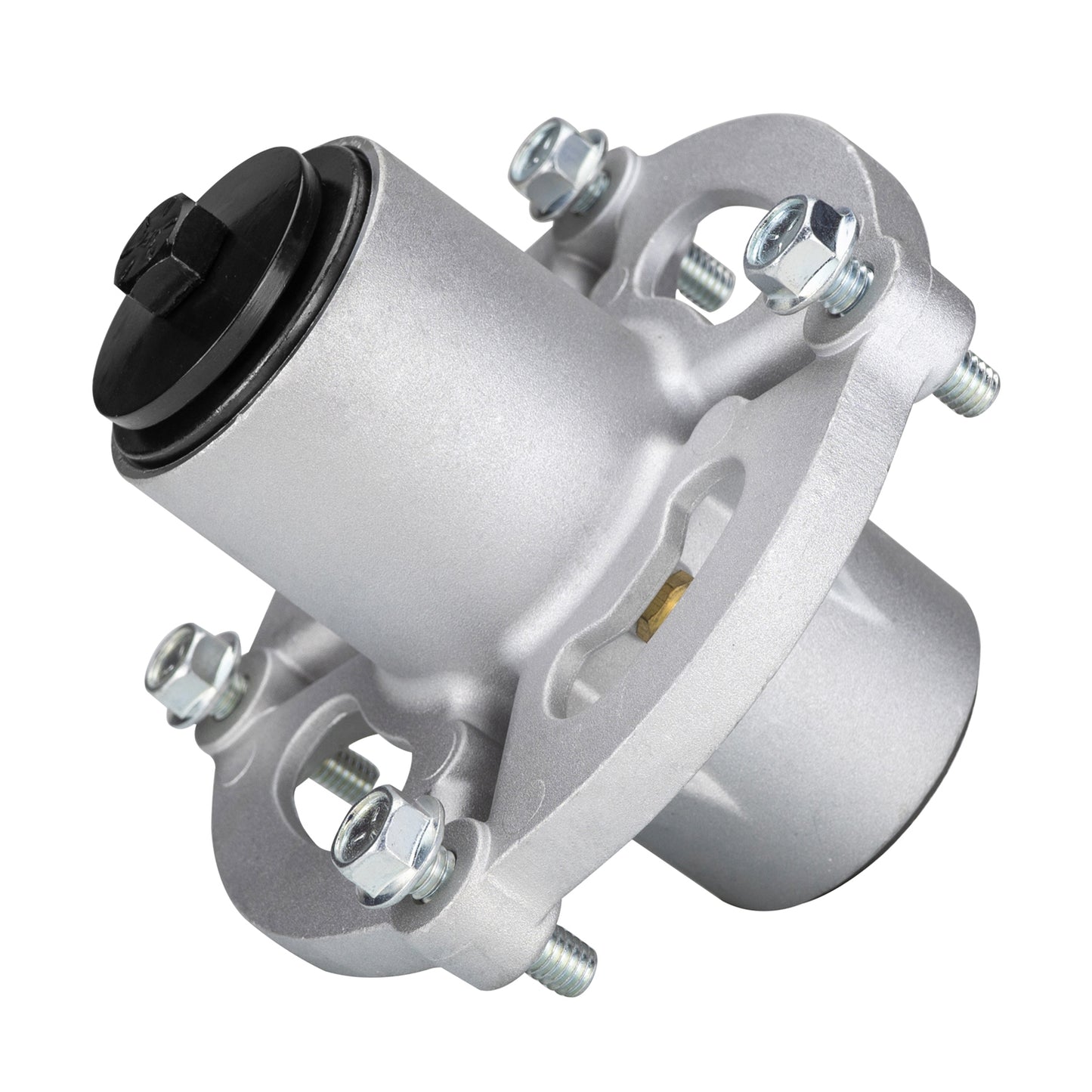

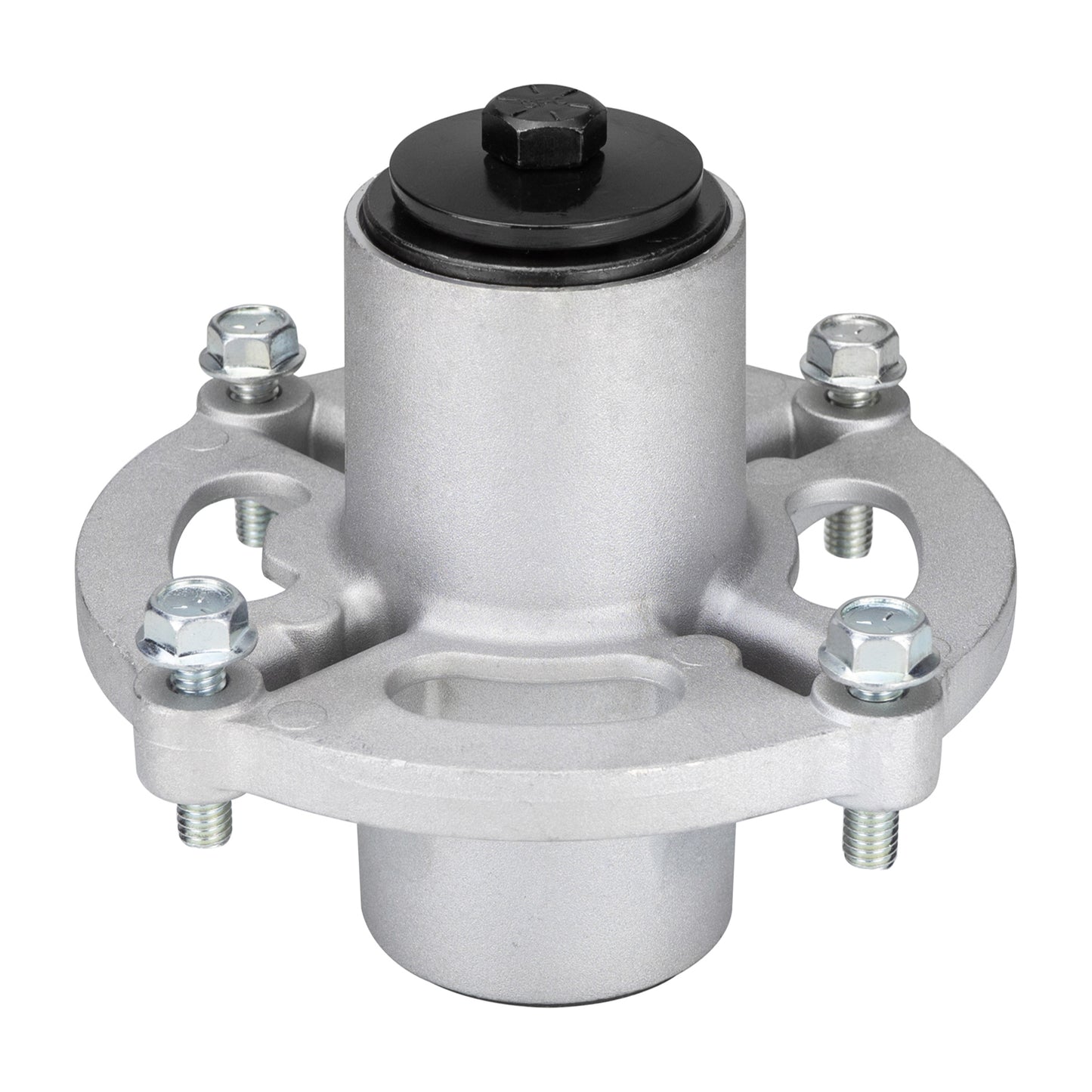

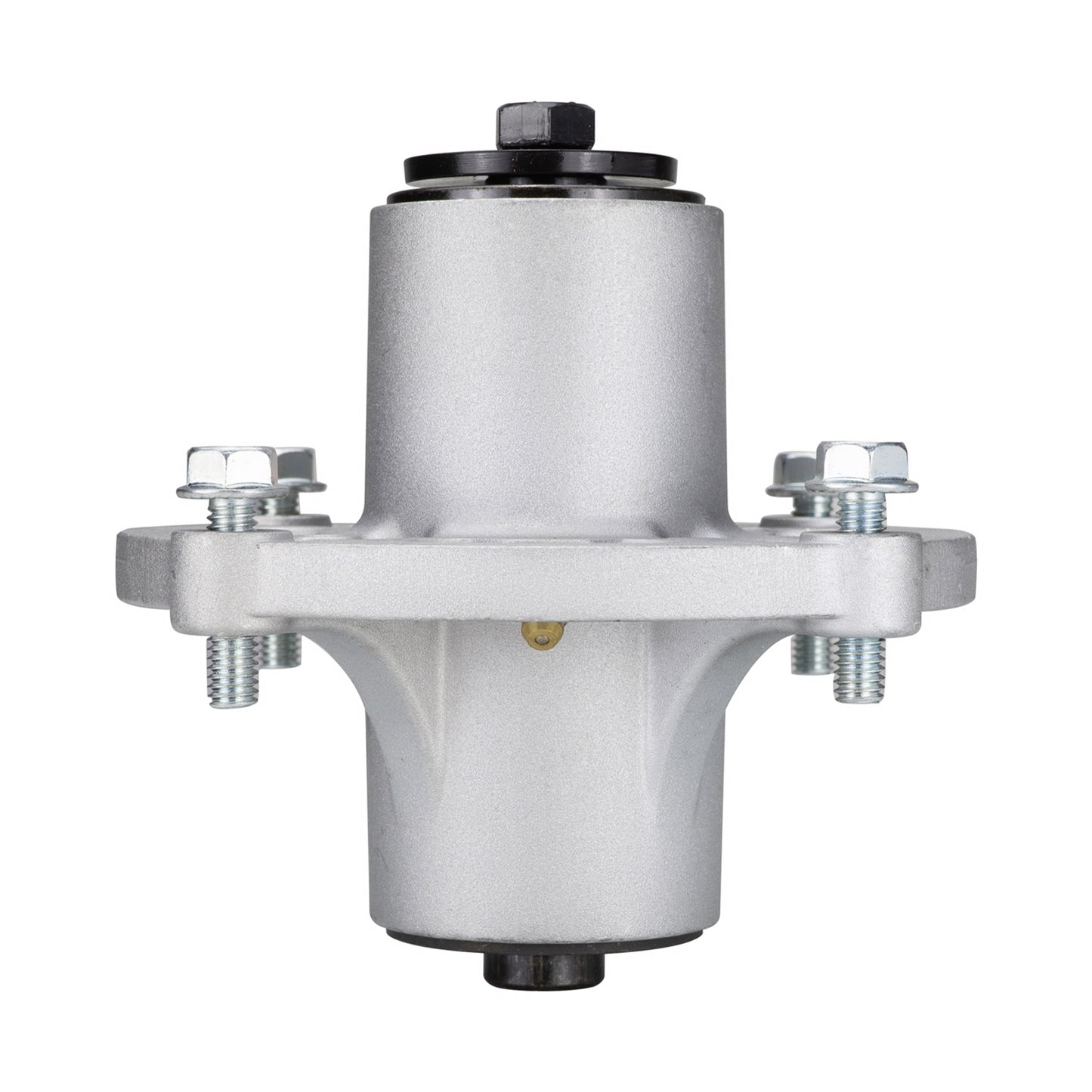

Spindle Assembly For Victa / Snapper 1735326 1735326YP
OEM Part No: 1735326YP, 1735573YP, 1735399YP, 1735328YP, 1735323YP, 1967066YP
REPLACE:
Spindle: Snapper 1735326, 1735326YP, 7600211YP, 84003175 & 7502226YP
1735326 1735326YP 7600211YP 84003175 7502226YP 485866
Fits Snapper 42", 46", 52" cut models
Fits Simplicity 42", 46", 52" cut models
Fits Victa Snapper/Simplicity style 42", 46", 52" cut models LT2342, 2690917, V125, EVT175460, EVT20460, EVT155420, SPX2042, SPX2246, SPX2352, VZT2042, VZT2246, VZT2652, VZ21420.
Including:
1 x Housing # 1735573.
2 x Bearing # 1735399.
2 x Spacers # 1735328.
1 x Shaft # 1735326.
2 x Shield # 1735323.
2 x Locking Ring # 1967066.
Housing Height: 115mm.
Shaft Height: 135mm
Mounting Hole Distance: 133mm
Mounting Hole Treaded. Bolts included. Ready to install.
