Spindle Assembly Replacement for 618P09256 618-09256

Spindle Assembly Replacement for 618P09256 618-09256

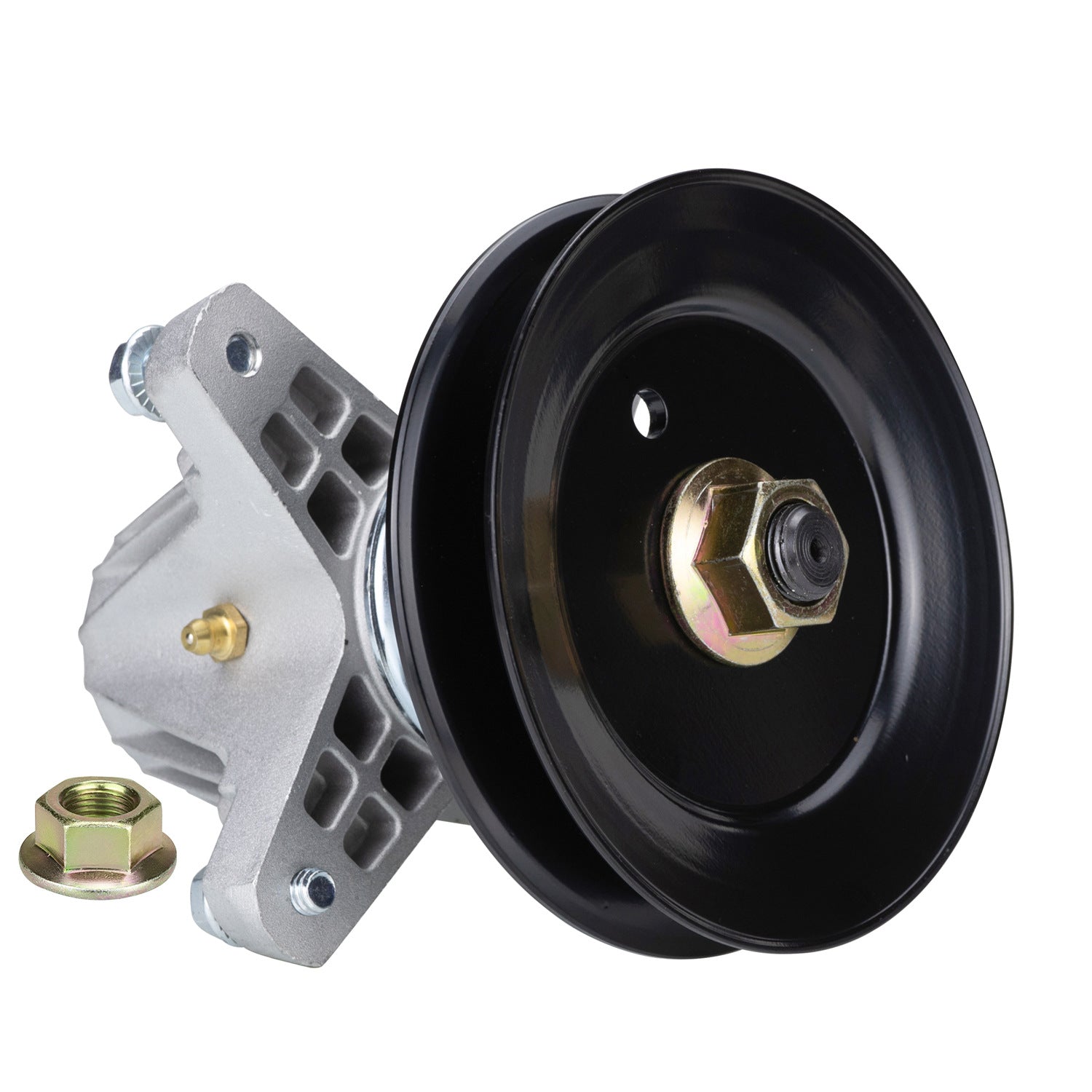

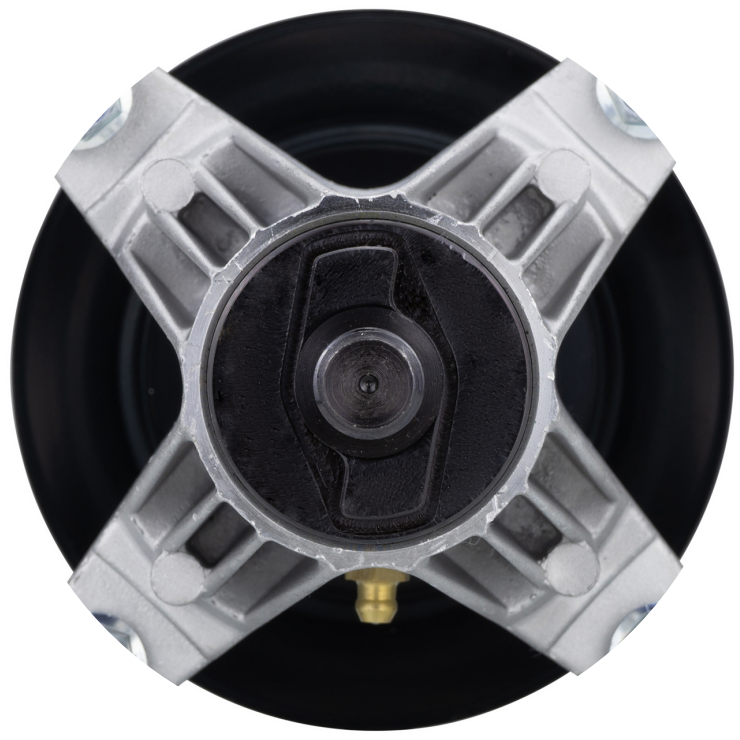

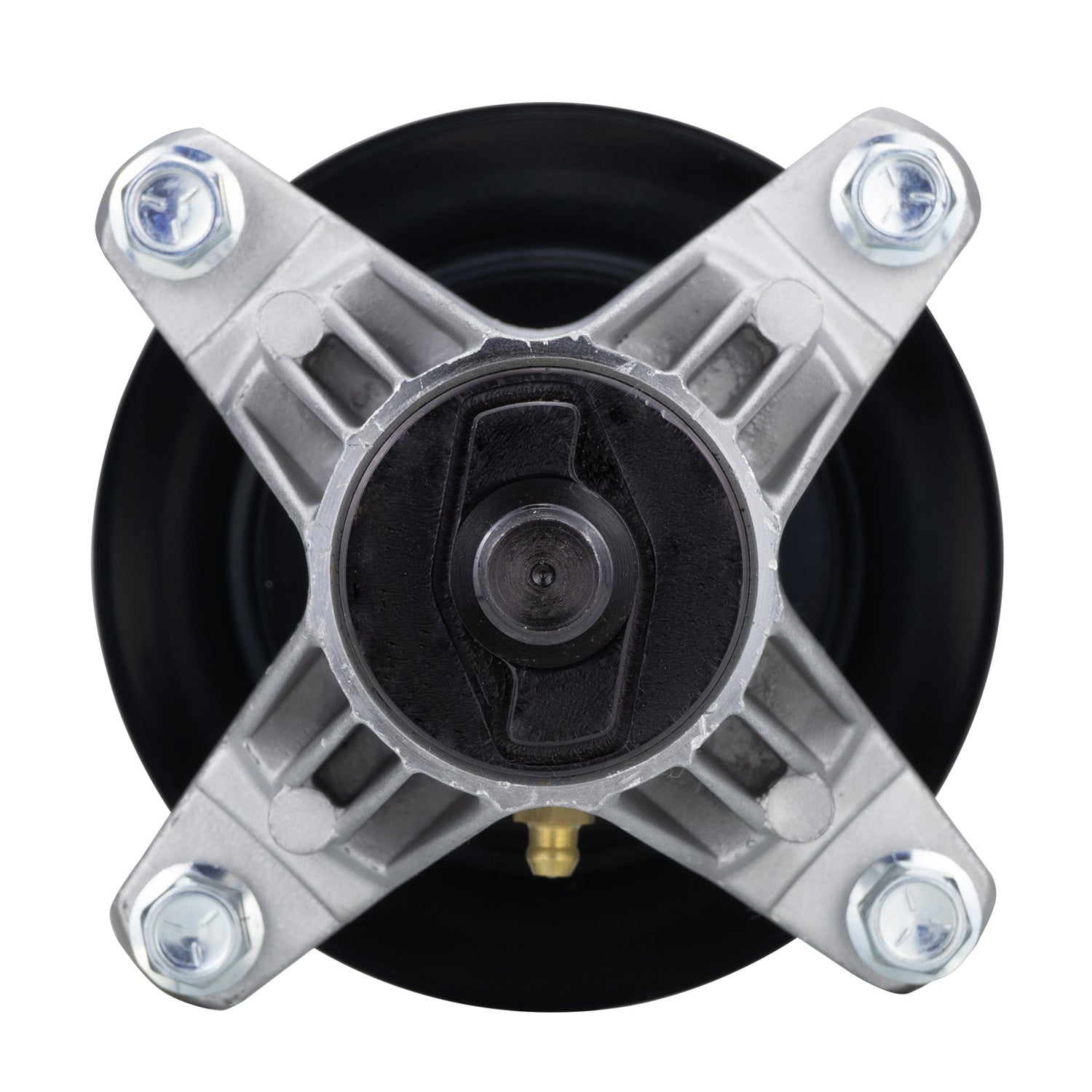

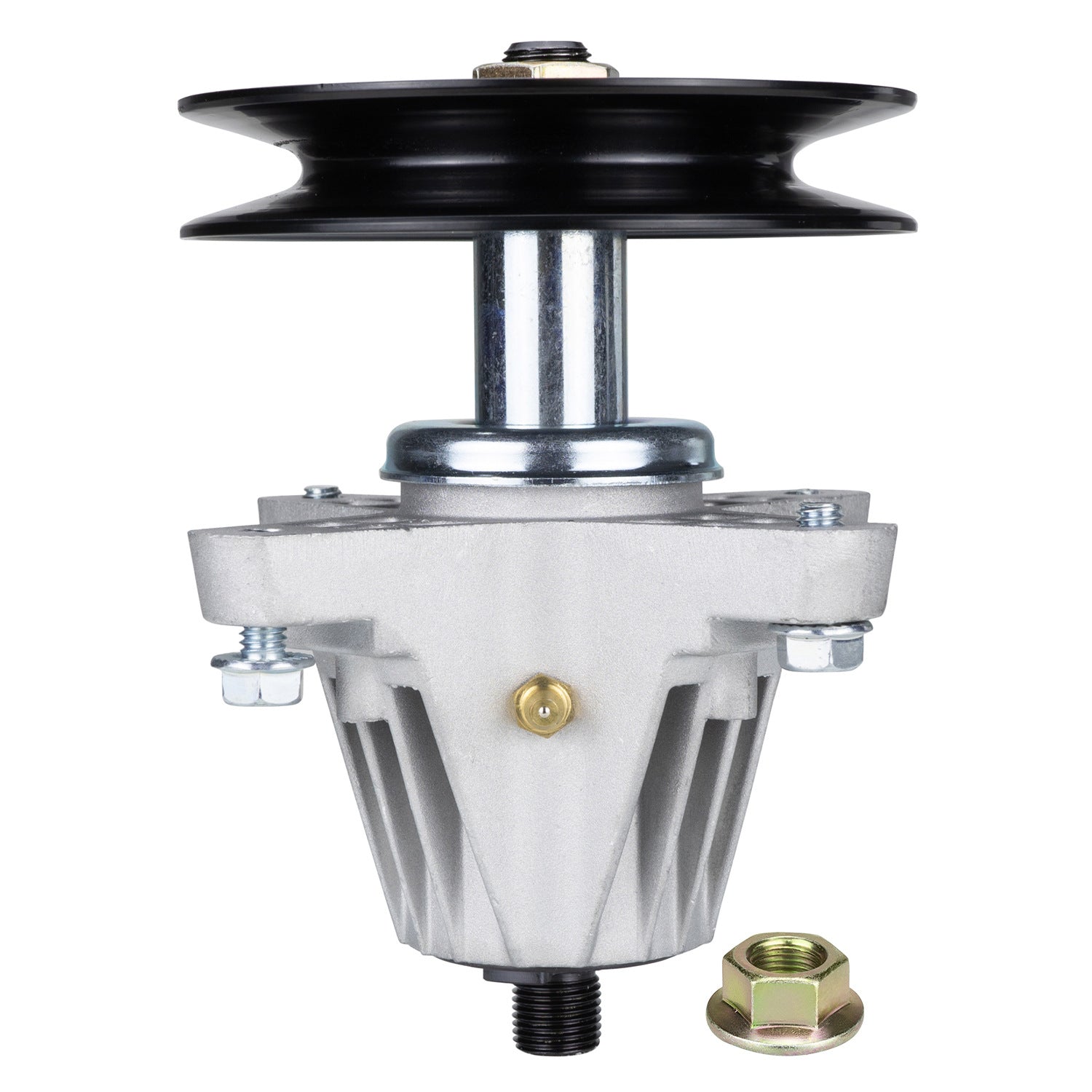

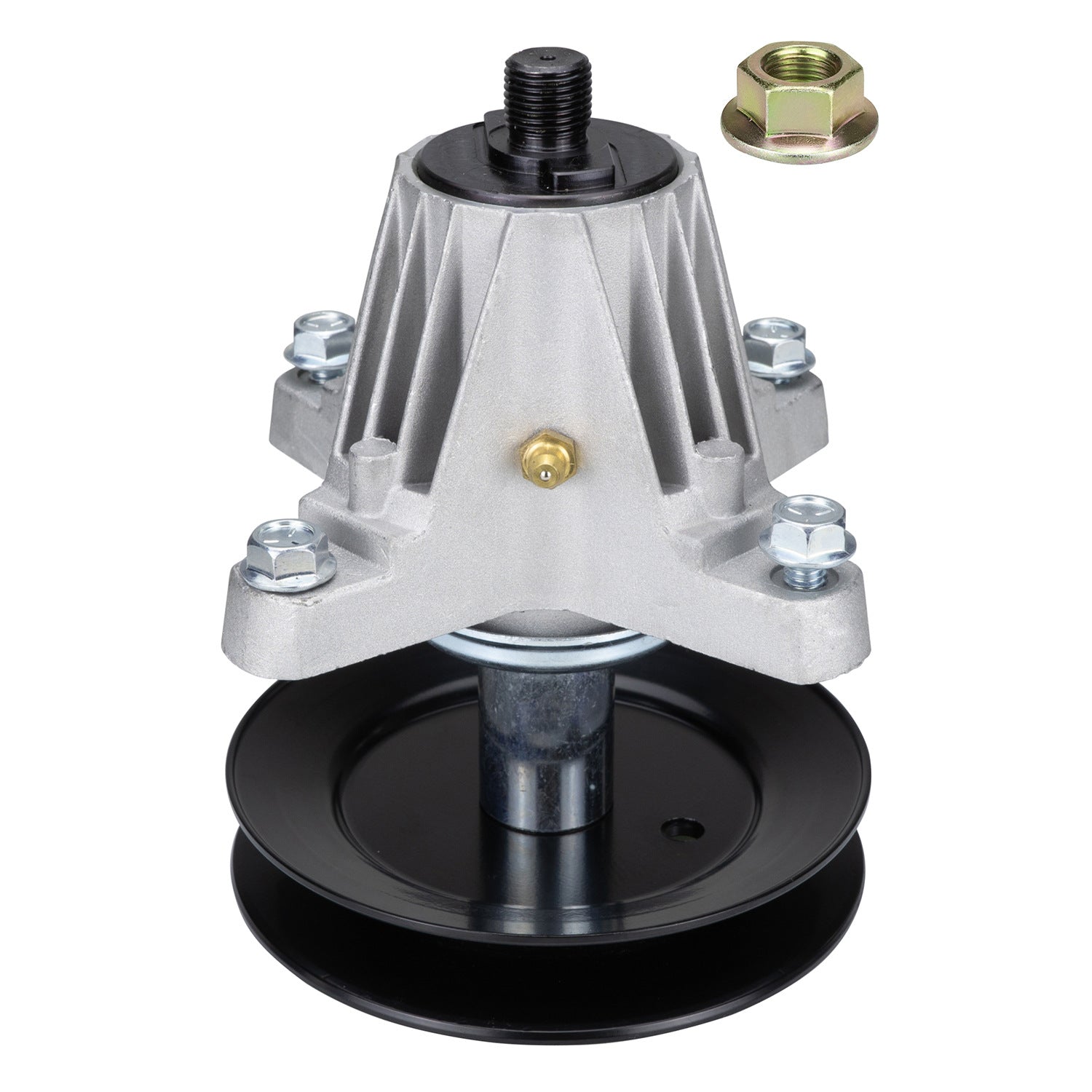

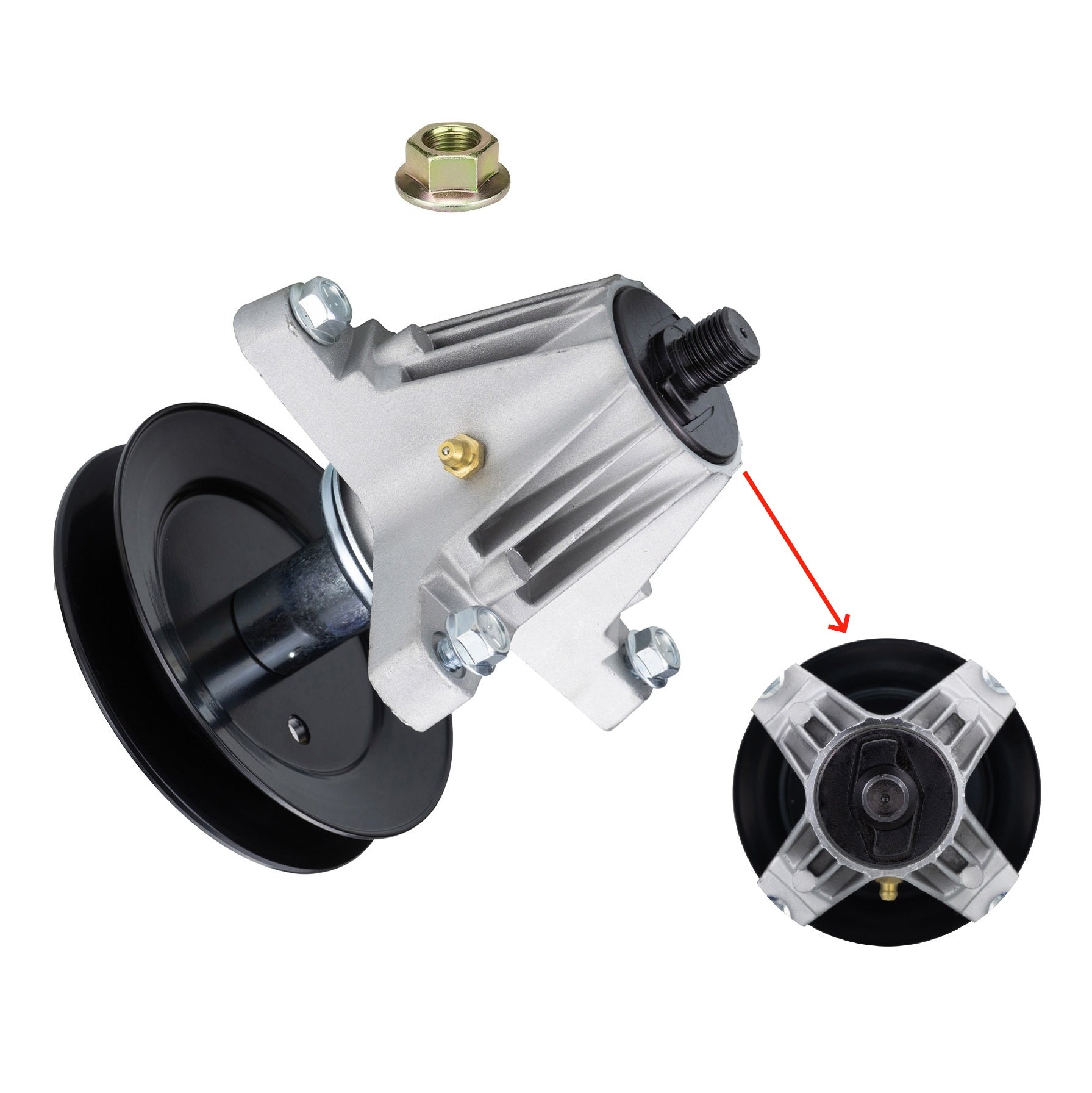

Replacement deck spindle assembly with pulley and grease fitting for selected 50" zero-turn models.

Replaces OEM Part Numbers:
618-09256
618P09256

Compatible Models:
Cub Cadet ZT1-50
Cub Cadet ZT2-50
Cub Cadet ZTS1-50, ZTS2-50 (50" decks)
Craftsman Z5600 (17ARFACQ093)
Craftsman Z5650 (17ARFACQ091)
Troy-Bilt Mustang Z50 (17ARFACQA66)
Also suits MTD 50" deck platforms including 17ARFACW093, 17ASHAC3A93, 13AQA2ZWA
New-style bowtie spindle pattern fits S-style and diamond-style blades

Construction:
Pulley included
Grease fitting installed
Precision-balanced spindle

Dimensions:
Shaft length: 174 mm
Pulley outer diameter: 128 mm
Spindle height: 6.78"
Mounting holes: 4-bolt pattern

Replacement spindle assembly suitable for Cub Cadet, MTD, Troy-Bilt and Craftsman zero-turn mowers equipped with 50-inch decks.
Includes S-style shaft, pulley and grease fitting for long service life.

Replaces:
618-09256
618P09256

Fits:
ZT1-50, ZT2-50
ZTS1-50, ZTS2-50
Craftsman Z5600 / Z5650
Troy-Bilt Mustang Z50

Designed as a direct OE-style replacement to restore proper cutting performance.

Package Includes:
1 × spindle assembly with pulley installed
