Spindle Assembly with Pulley for John Deere 48" Deck Replaces GY20867 & GX20335 / AUC15811 & M155979

Spindle Assembly with Pulley for John Deere 48" Deck Replaces GY20454 & GX20335 / AUC15811 & M155979

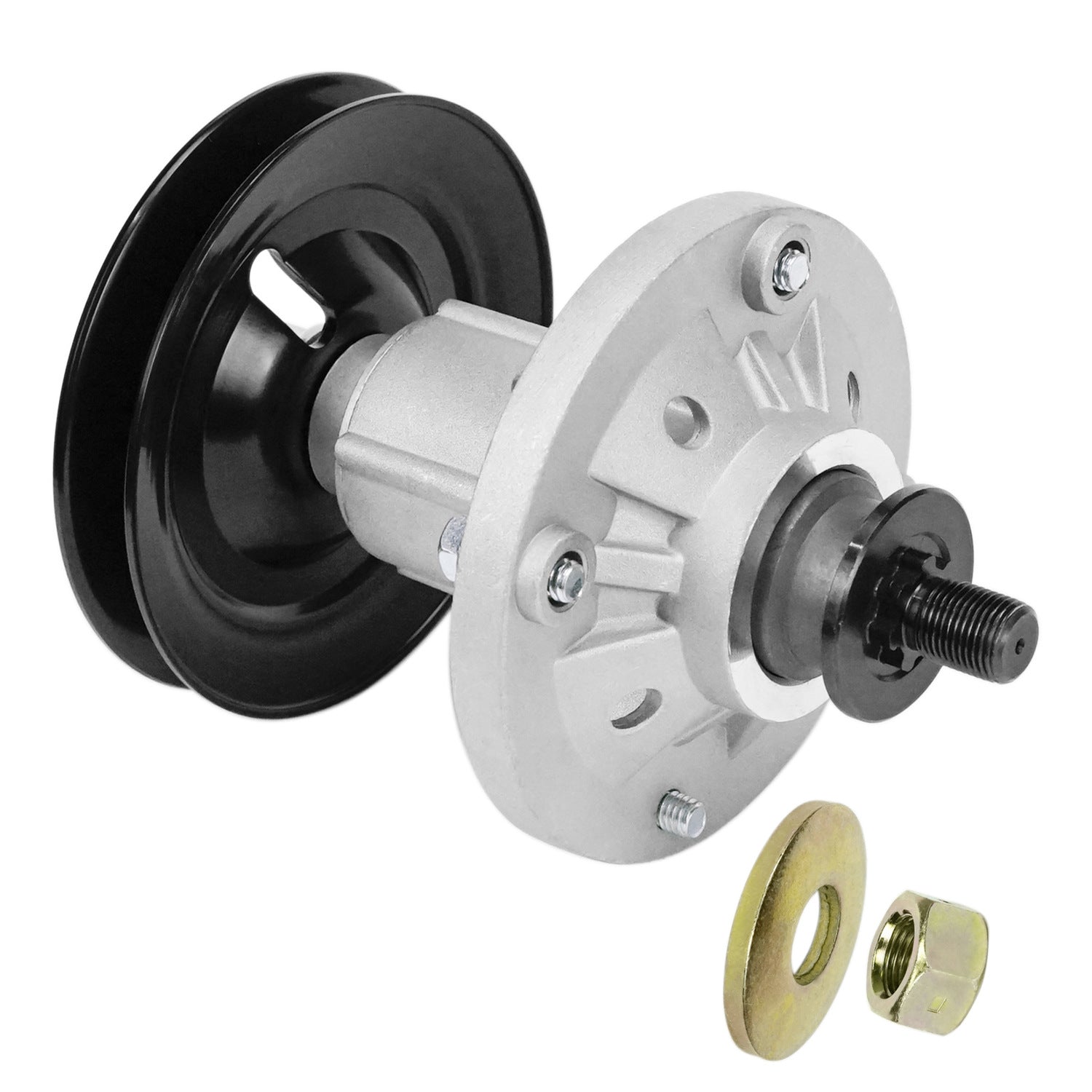

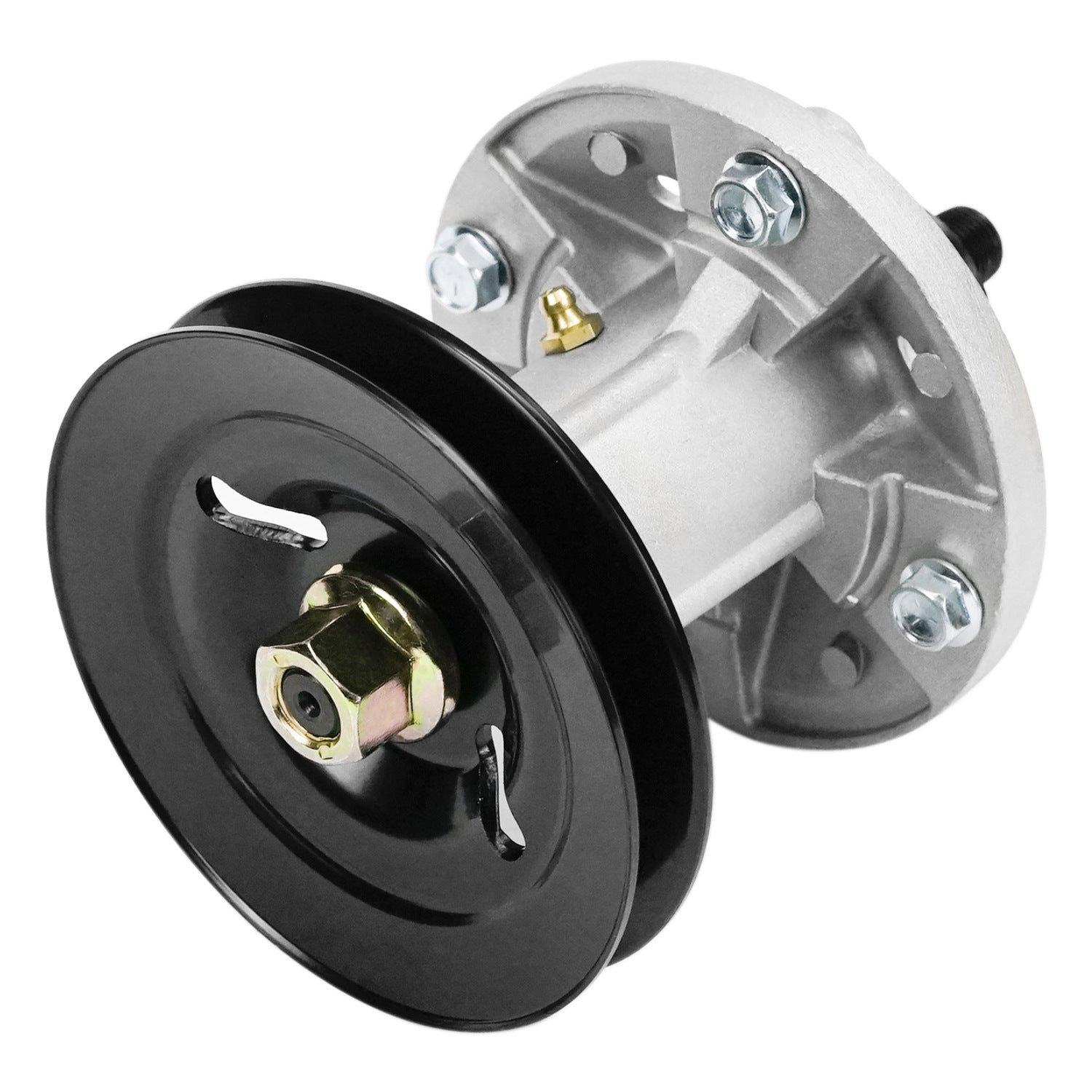

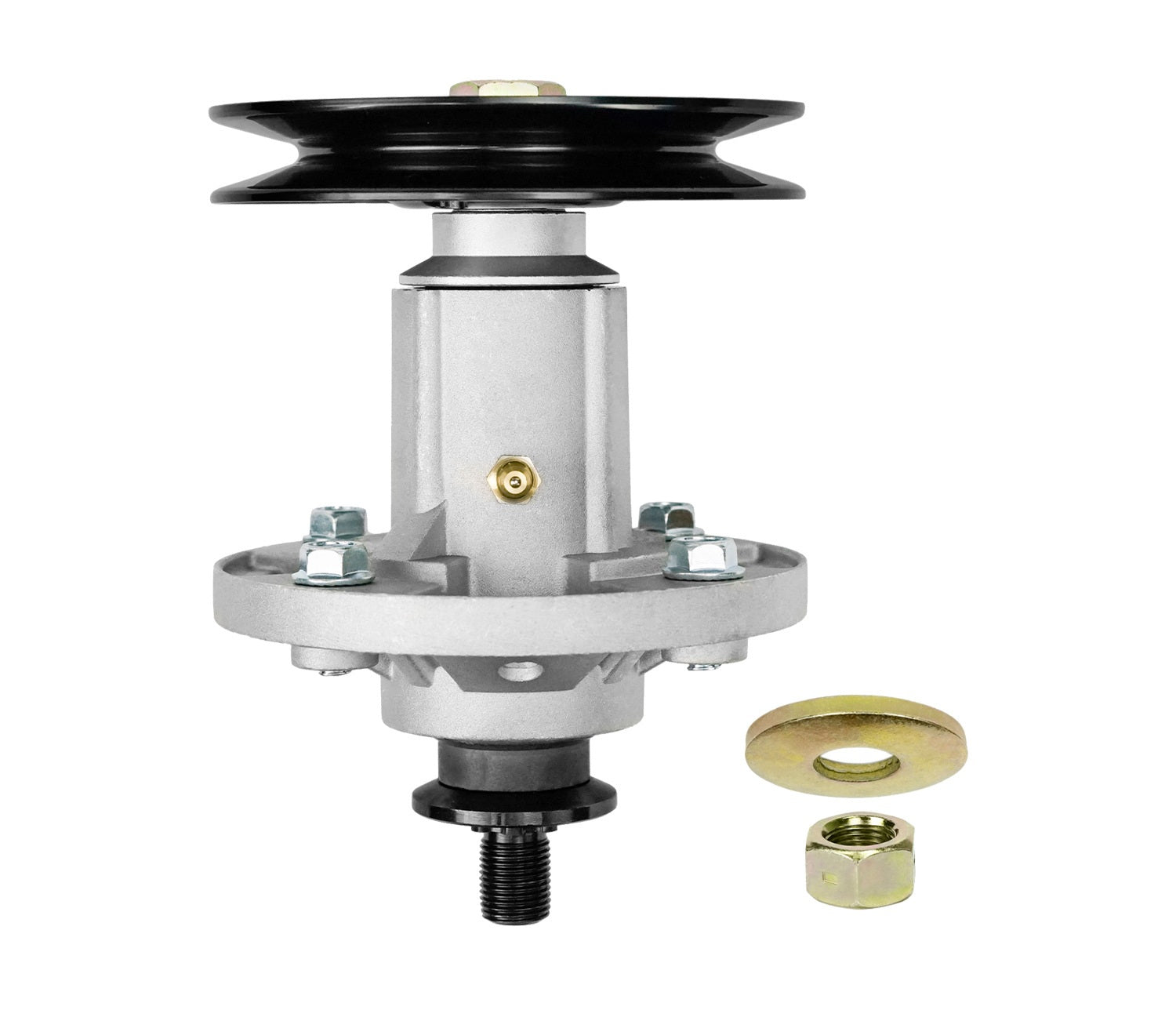

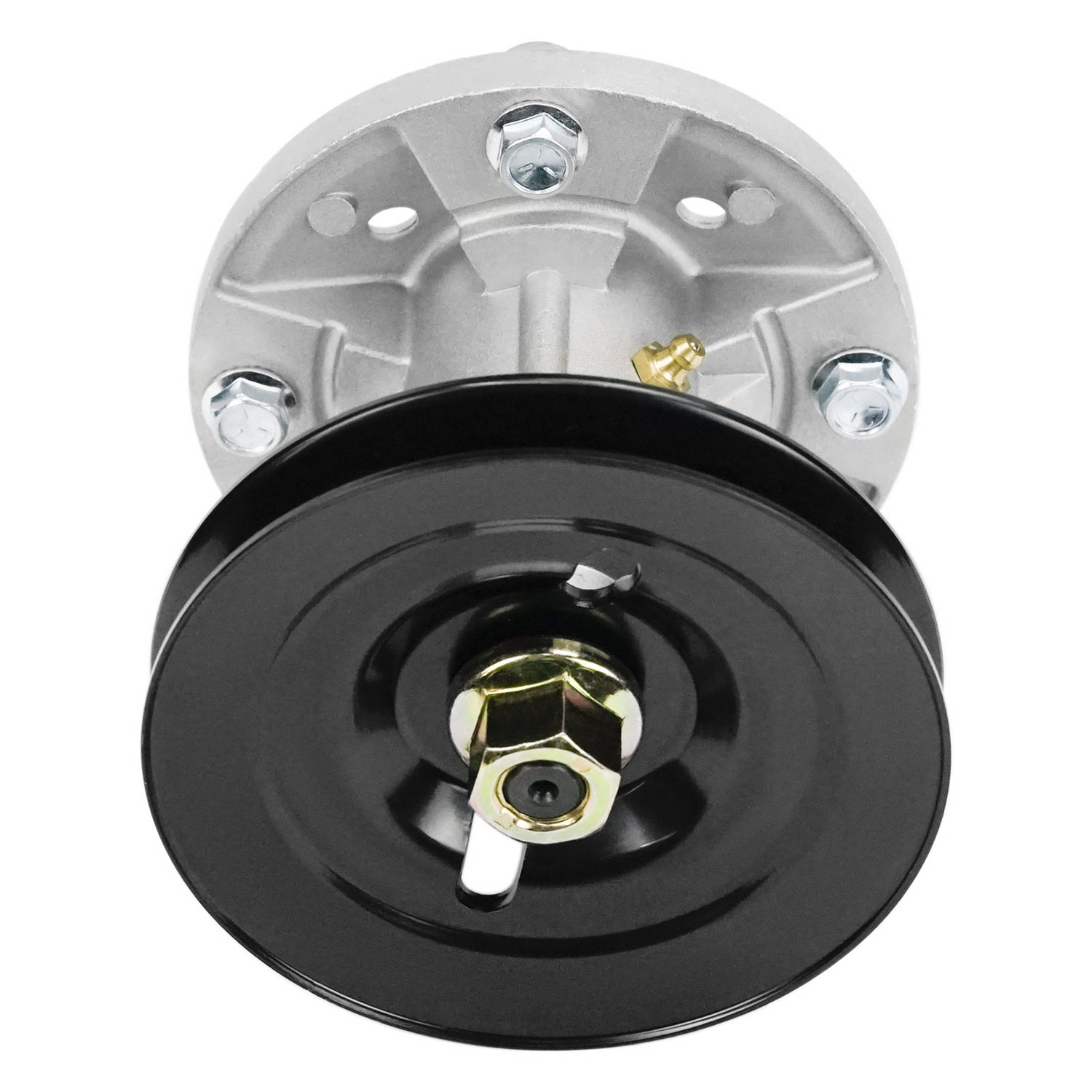

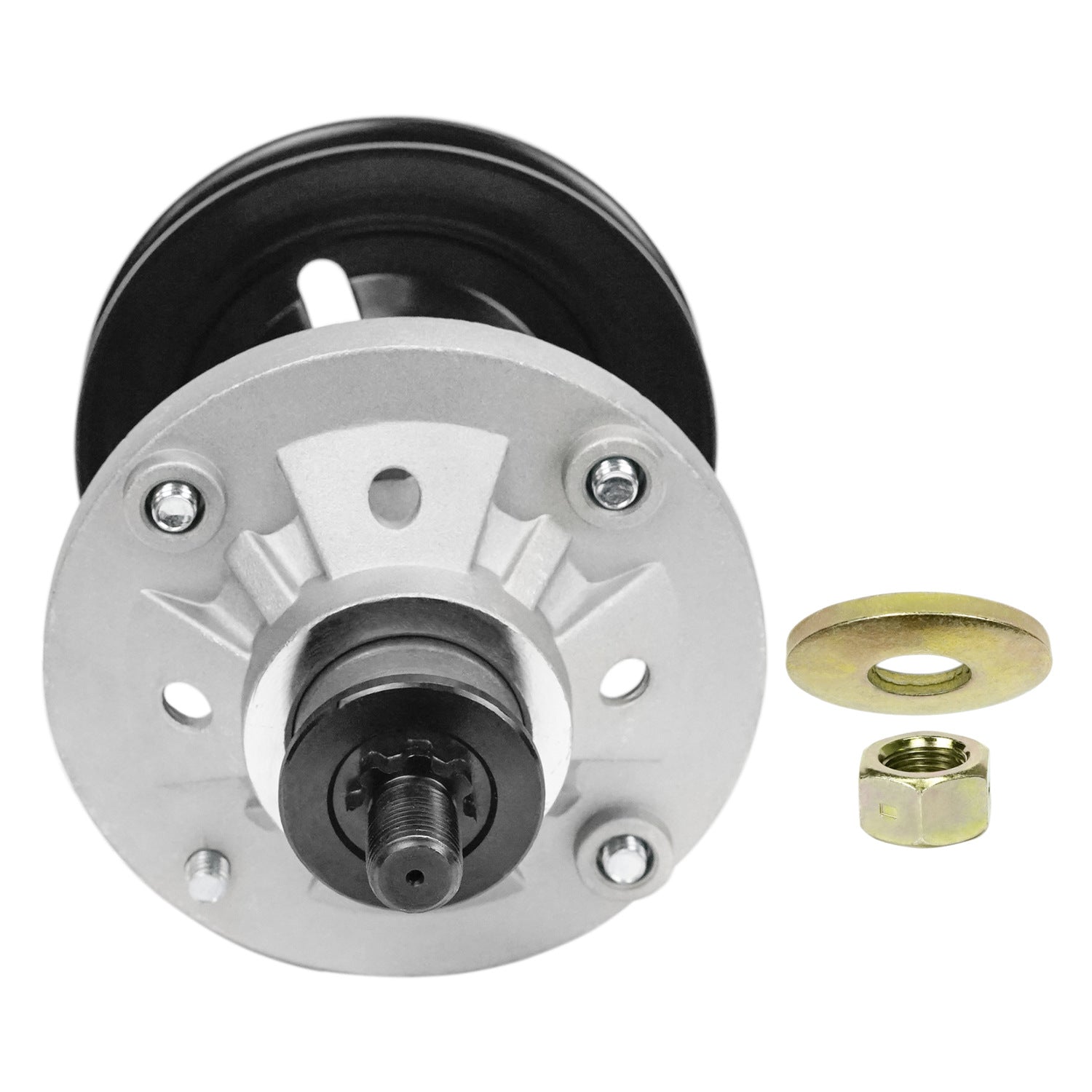

Brand new spindle assembly supplied with 5" pulley, replacing John Deere spindle numbers AUC15811 / GY20454 / GY21098 / GY20962 and pulley GX20335 / M155979.
Designed for 48" cutting decks using the 7-point star blade mount.

Specifications
• Spindle shaft: 7-point star
• Pulley OD: 5" (127 mm)
• Body length: 94 mm
• Mounting hole spacing (centre-to-centre): 107 mm
• Shaft length: 180 mm
• Bearings: 75-3220 type

Replaces OEM Part Numbers
AUC15811, GY20454, GY21098, GY20962, GY20867
GX20335, M155979

Compatible Models – John Deere 48" Deck
L Series: L120, L130, L145, L155
LA Series: LA130, LA140, LA145, LA155, LA165
D Series: D140, D150, D160
E Series: S240
X Series: X140, X165
Z Series: Z245, Z255, Z335E
Other models: 145, 155C

Suitable only for 48" decks. Not compatible with 42" or 54" decks.
