Spindle Assembly with Pulley Replaces 618P09260 618-09260

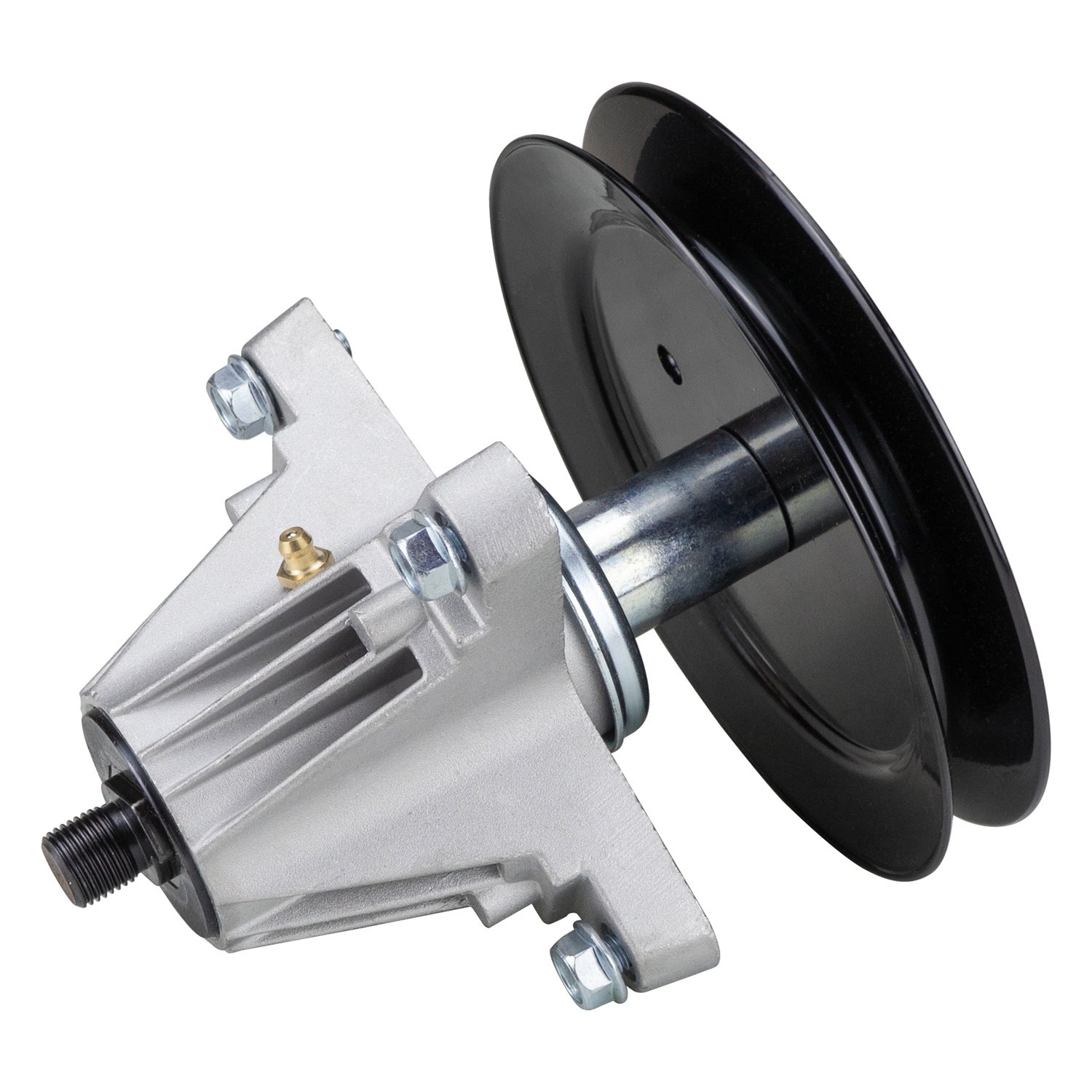

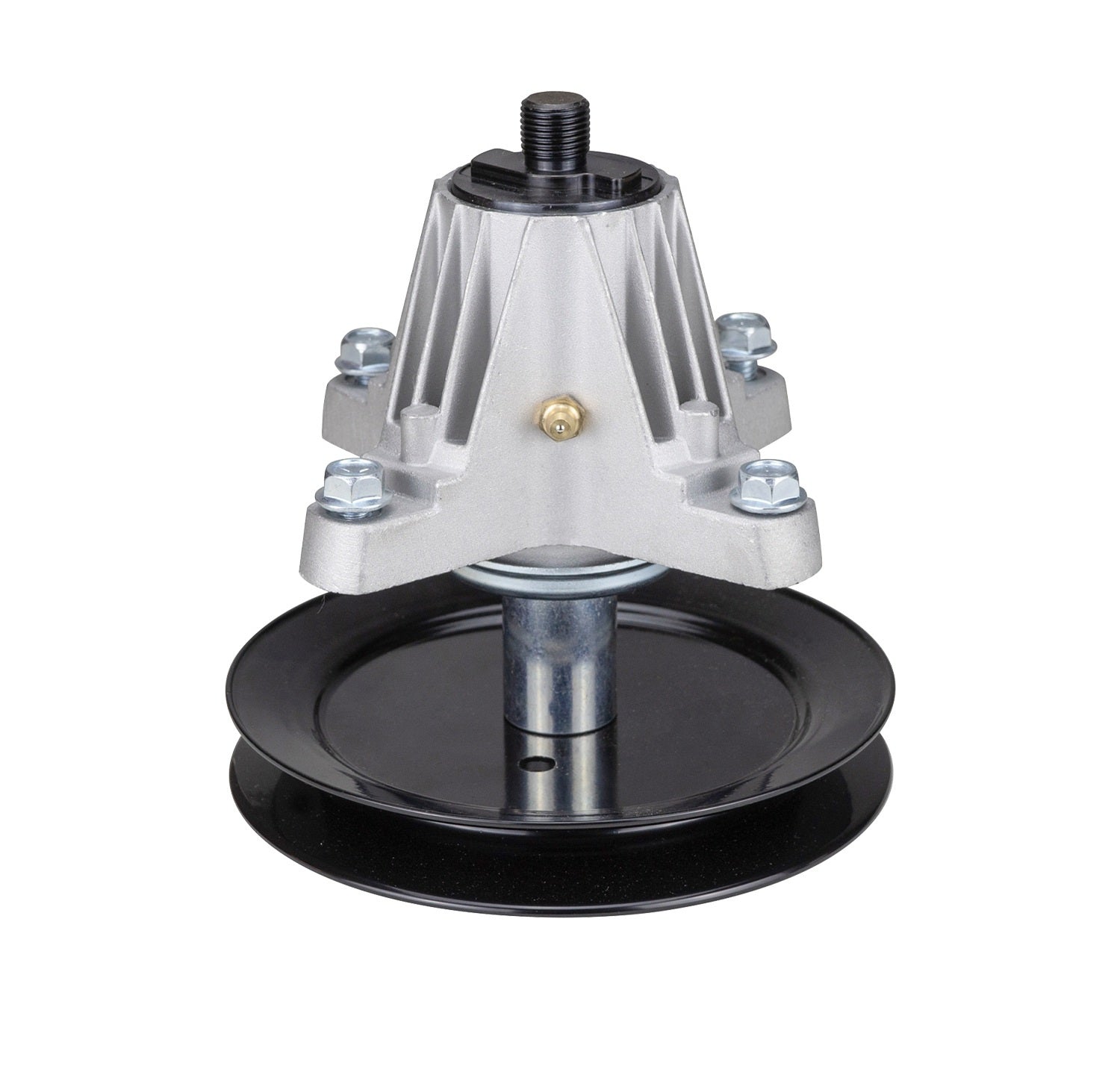

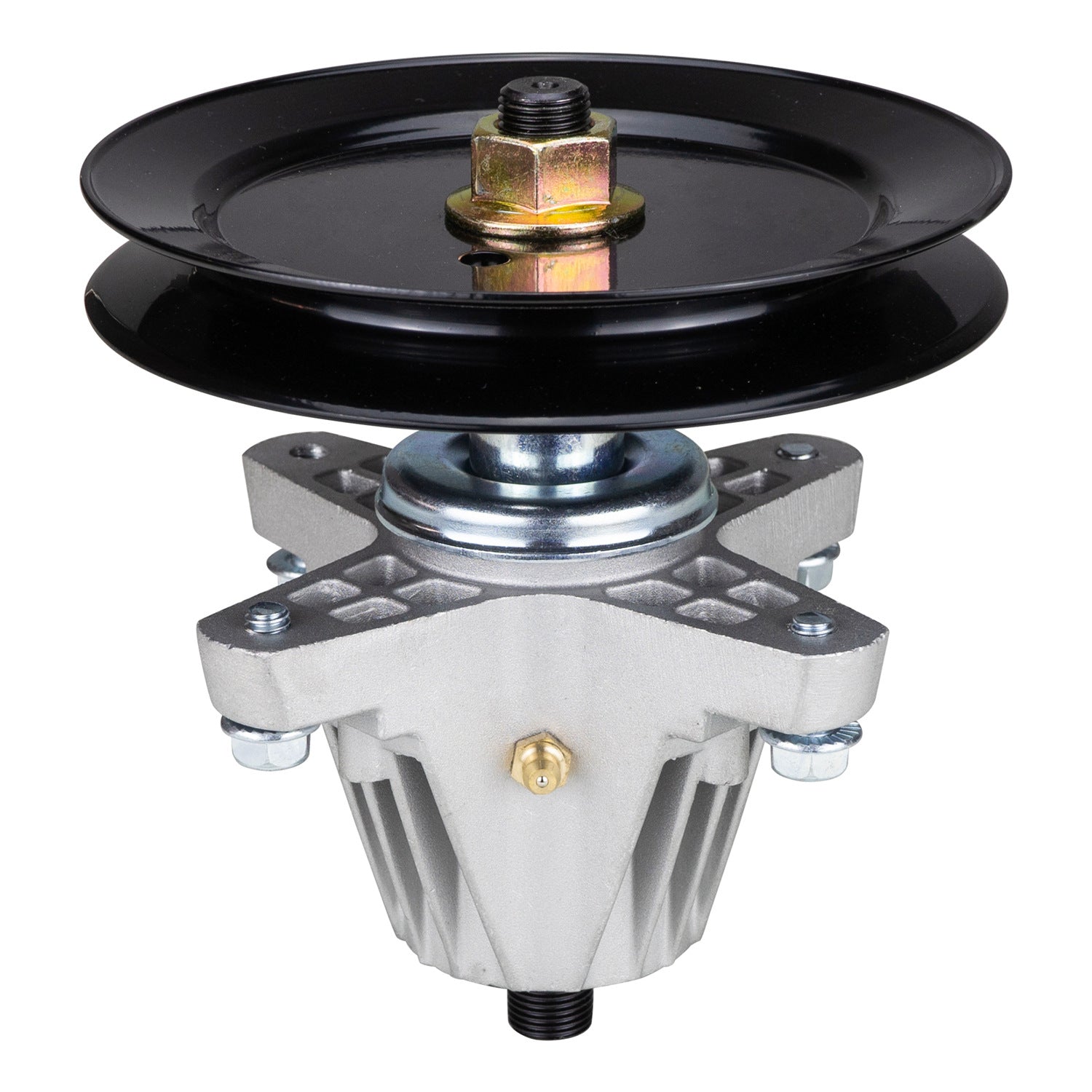

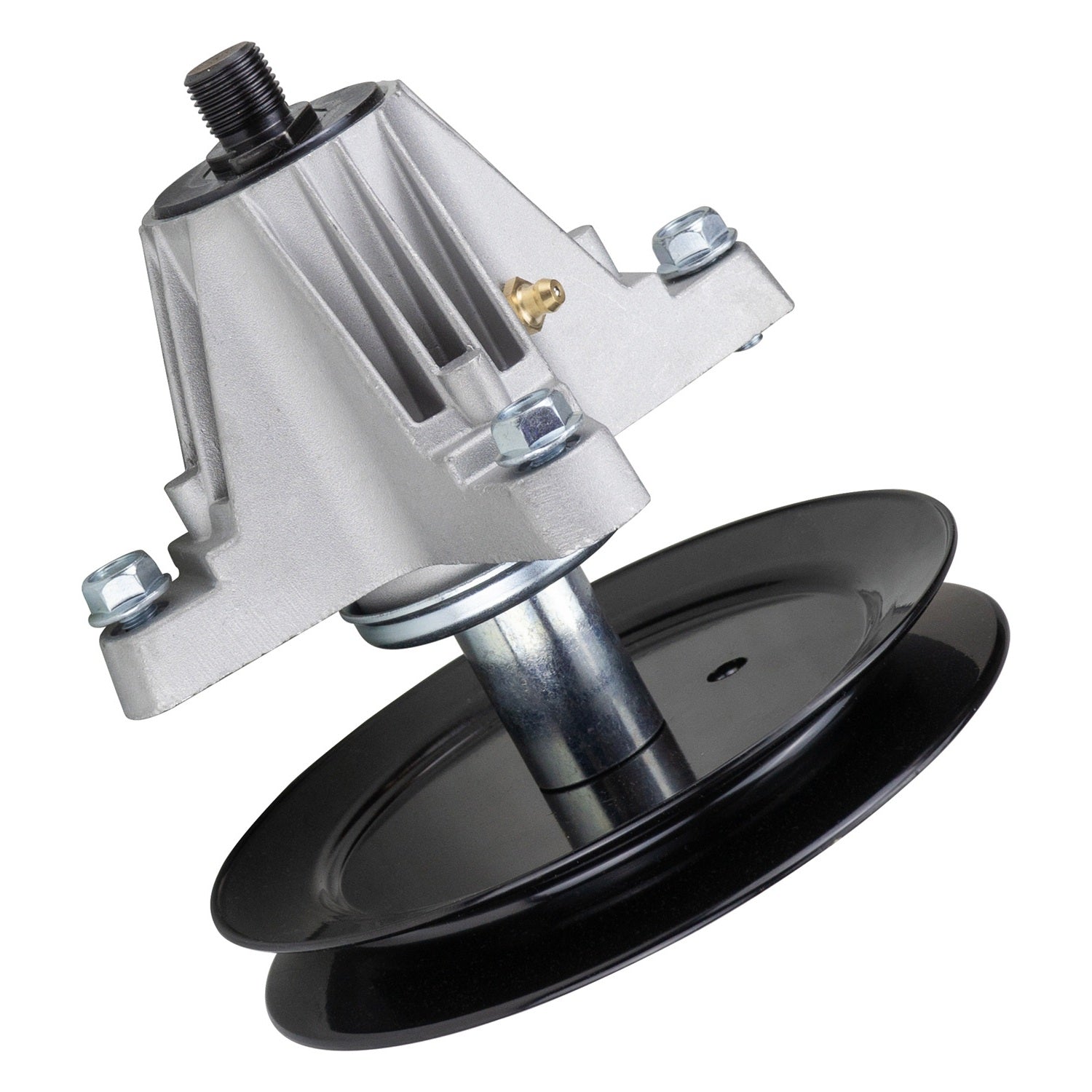

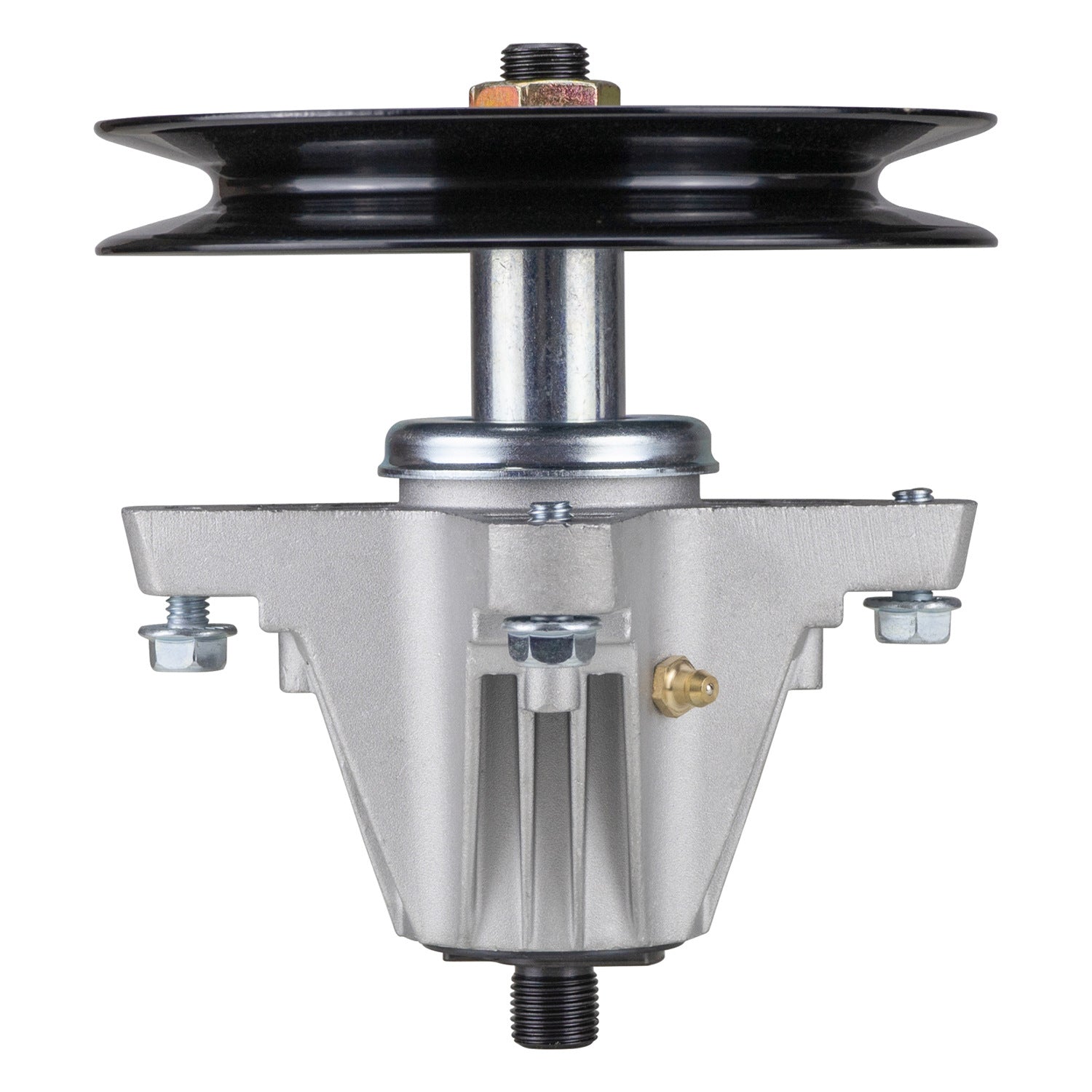

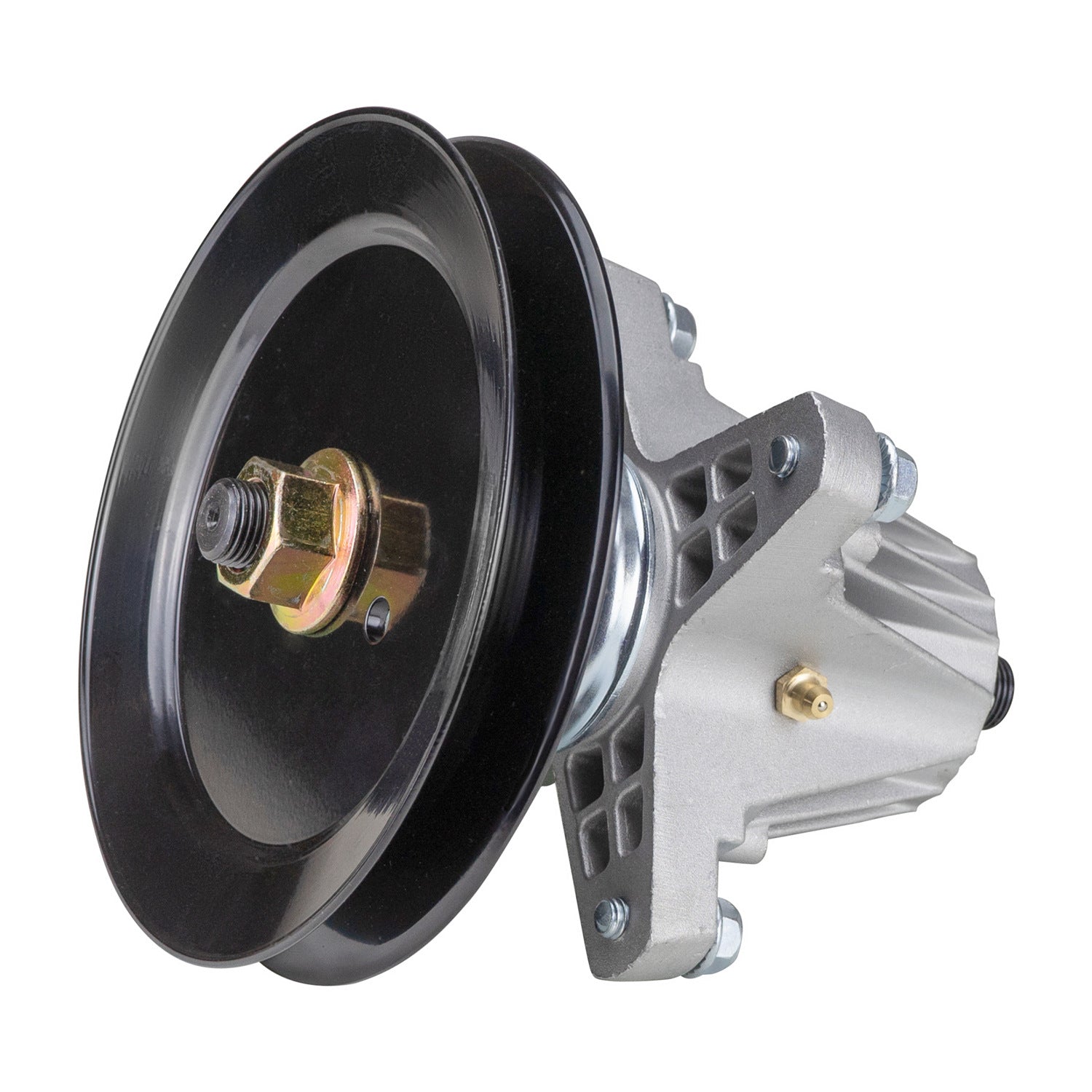

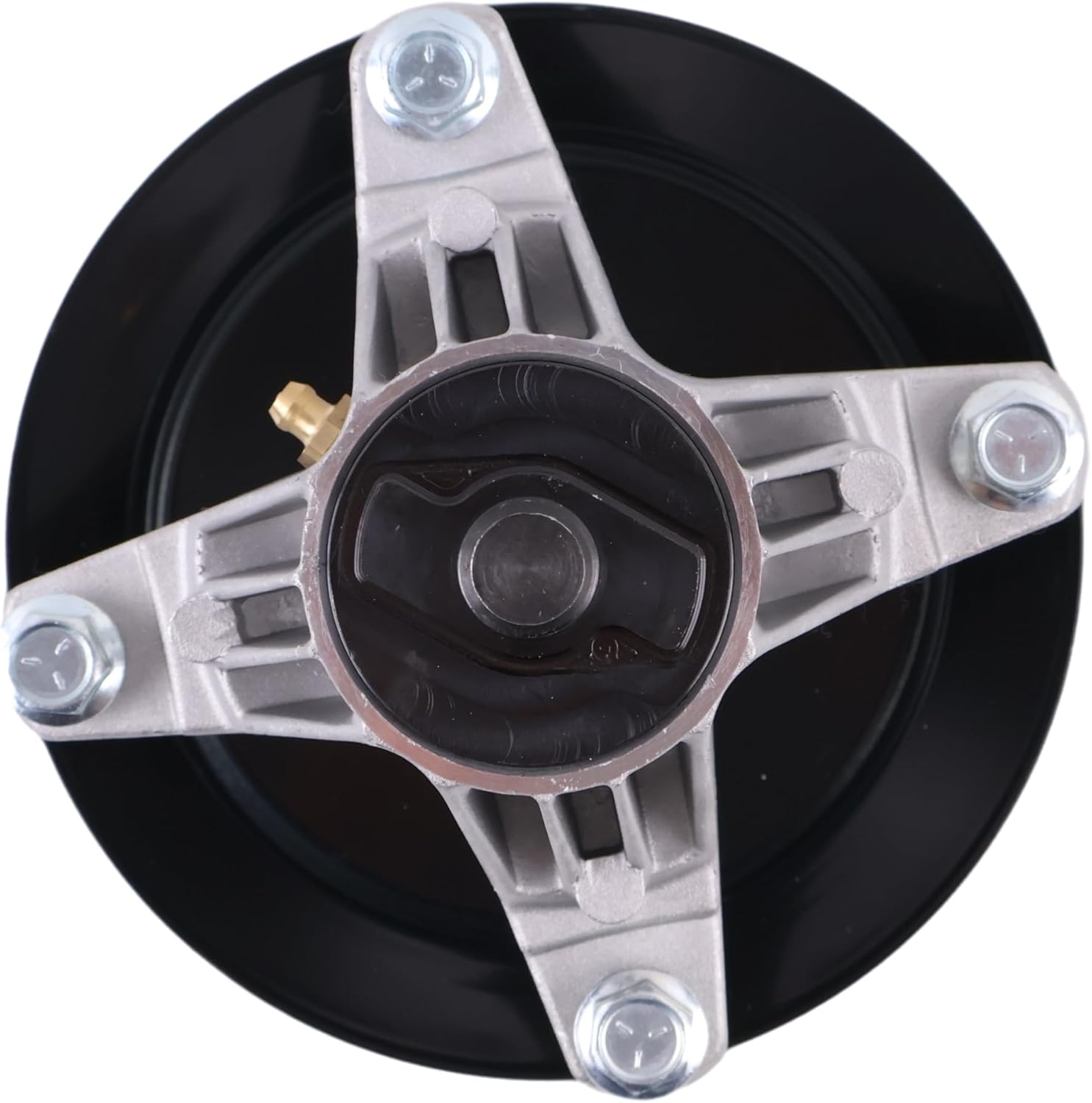

Replacement deck spindle assembly with pulley and grease fitting for selected 42" zero-turn and lawn tractor models.
Replaces OEM Part Numbers:
618-09260
61809260
618P09260
Compatible Models:
Cub Cadet ZT1-42
Cub Cadet ZT1-42 Fab
Cub Cadet ZTS1-42 Fab
Craftsman Z5200 (42" deck)
MTD Z5200 (2022)
Troy-Bilt Mustang Z42 / Z42-022 / Z42-023
Yard Machines RZT2242
Also suits MTD 42" deck platforms 13AKA9ZSA93, 13AKA9ZS093, 17ARFACS093, 17RRFACS093
New style bowtie spindle pattern (fits S-style and diamond-style blades)

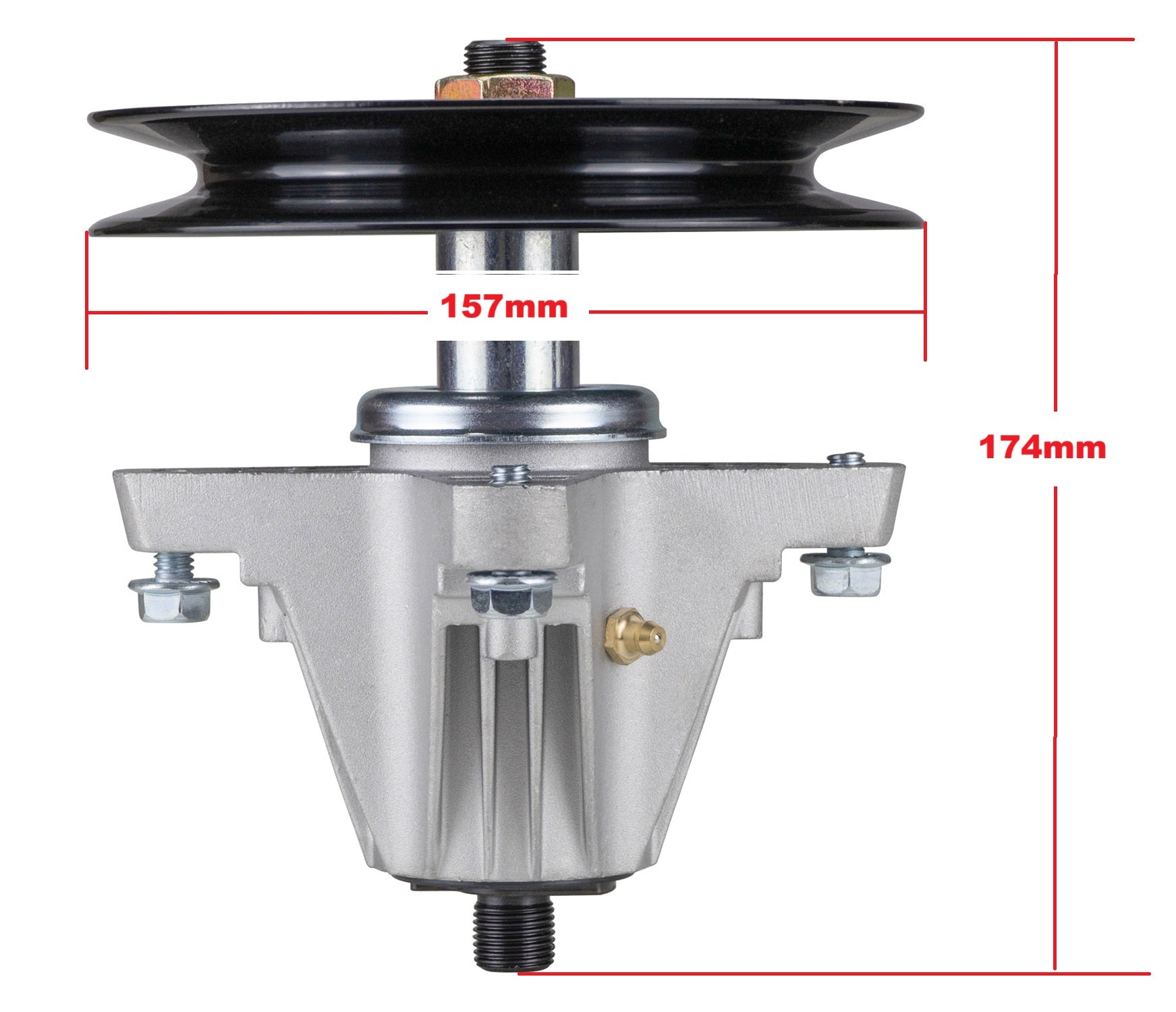

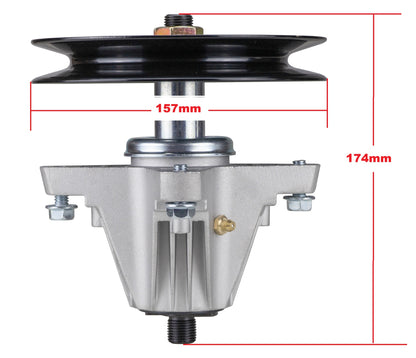

Dimensions:
Spindle shaft (S-type) length: 174 mm
Pulley outside diameter: Ø157 mm
Four-bolt mounting pattern
Notes:
Direct replacement for 42" deck spindle assemblies using the above OEM numbers.
