Tilt Trim Motor 64E-43880 for Yamaha 115-225HP 64E 67H 68V Series 1997–2014

Tilt Trim Motor 64E-43880 for Yamaha 115-225HP 64E 67H 68V Series 1997–2014

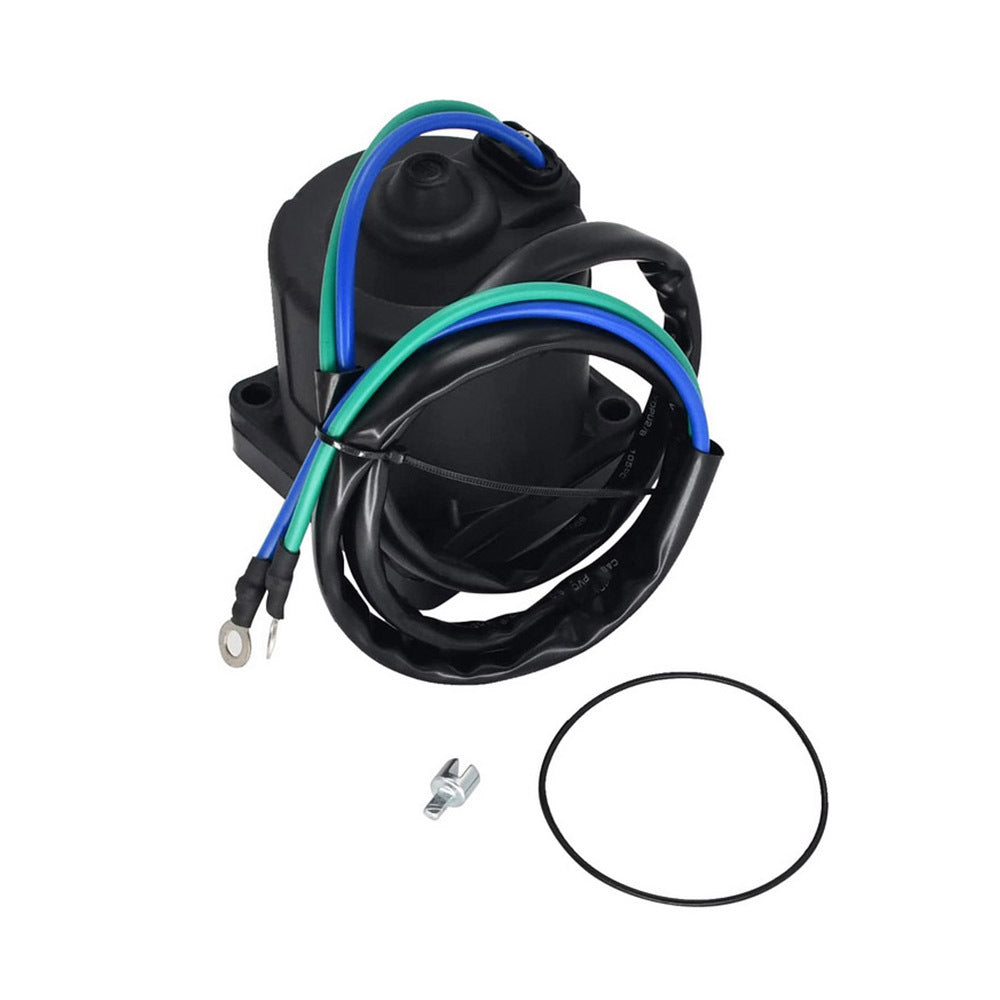

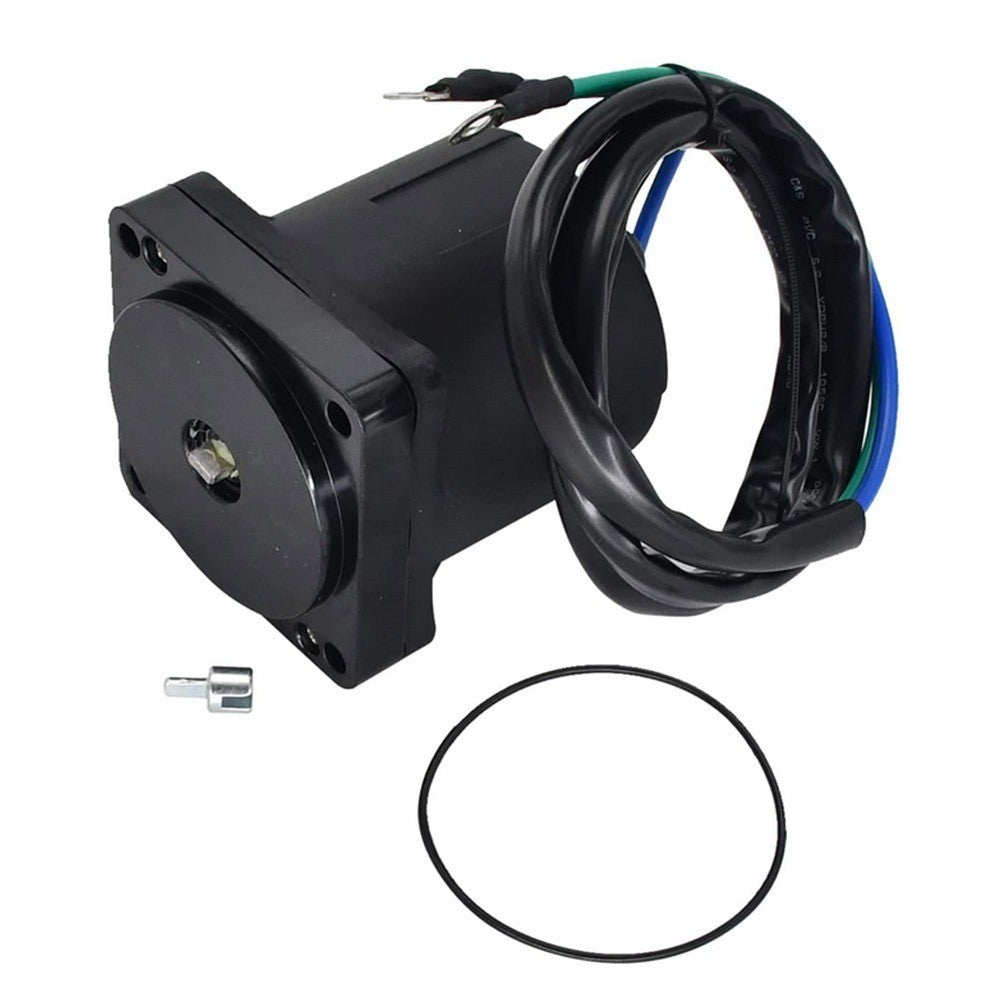

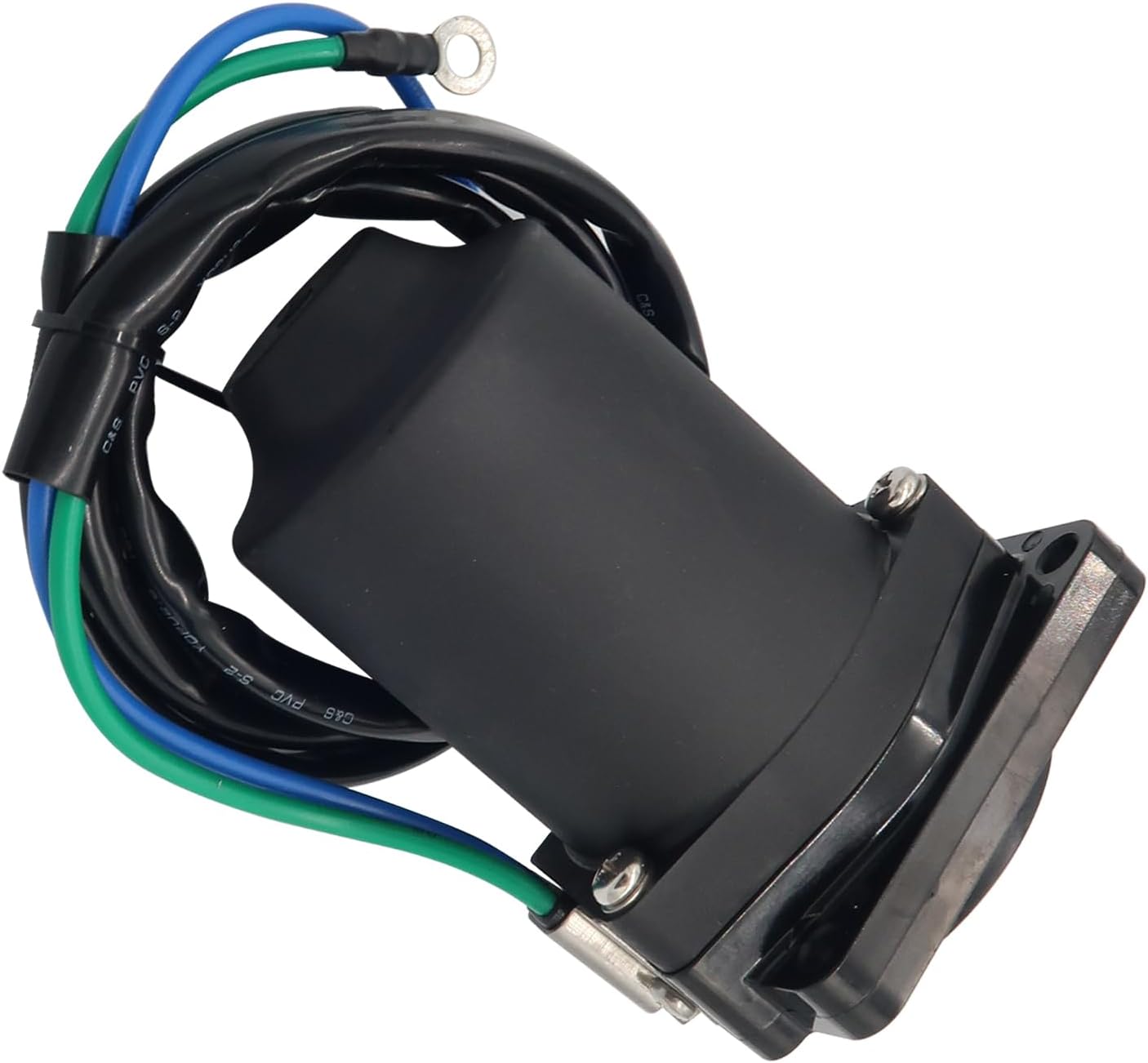

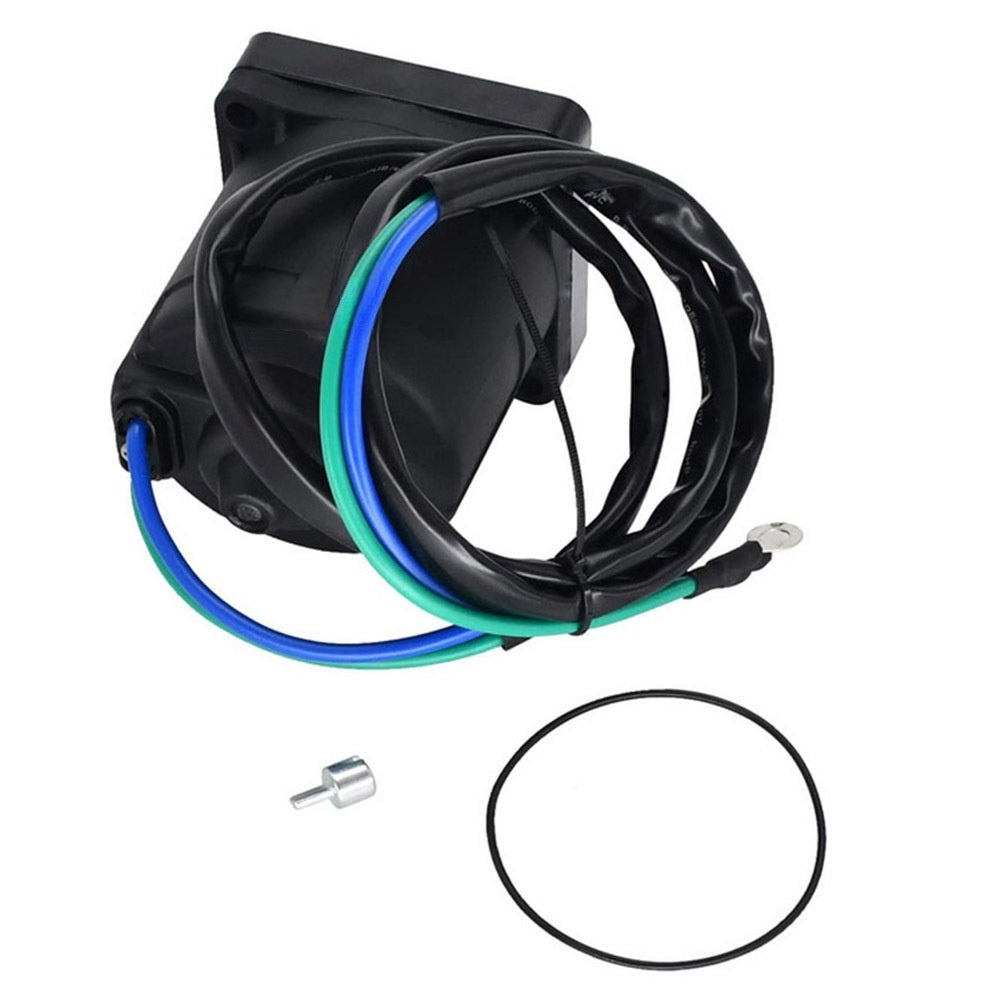

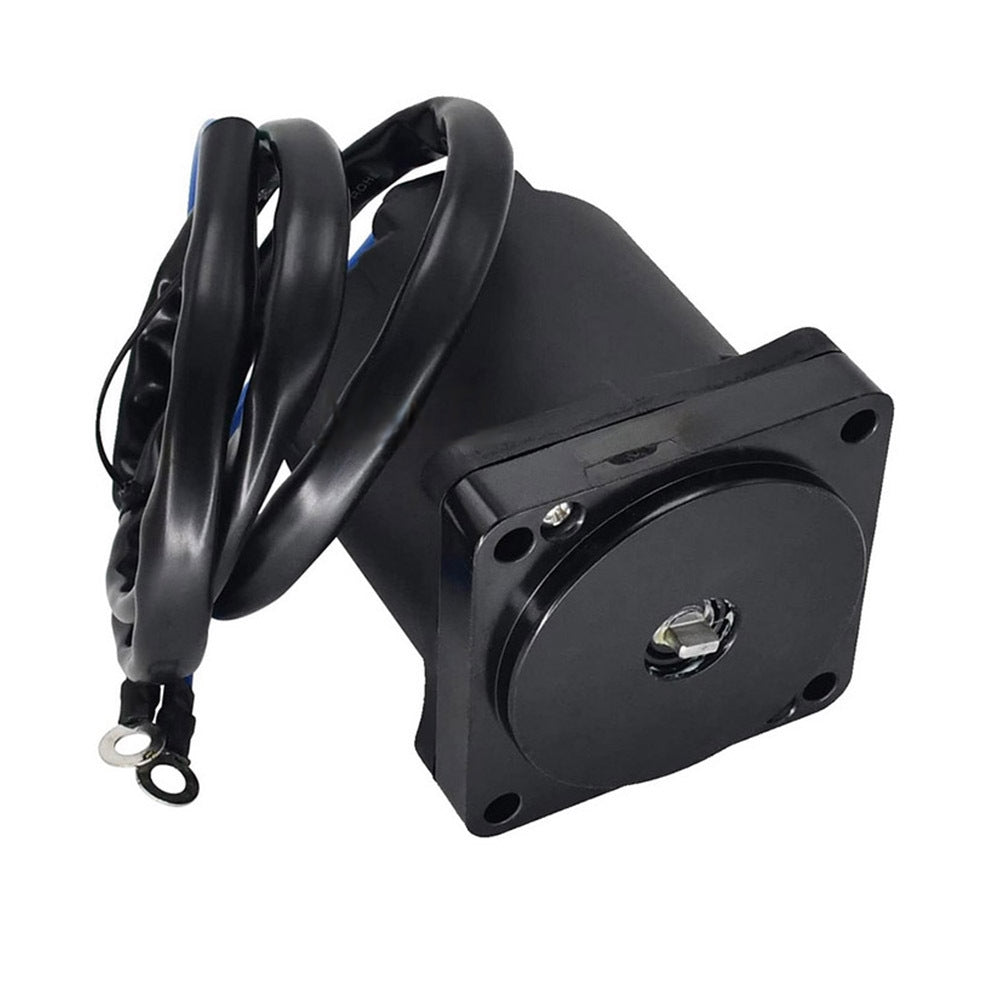

Replacement tilt and trim motor for Yamaha outboards, 115HP to 225HP, covering various models from 1997 to 2014. Features a 2-wire design with ring terminal ends and O-ring seal.

Compatible Models:

Yamaha 115HP (1997–on)
Yamaha 115HP 4-Stroke (2000–on)
Yamaha 130HP (1997–2000)
Yamaha 150–200HP (1997–on)
Yamaha 225HP (1998–on)
Suzuki (some models)

OEM Replacement Part Numbers:
Yamaha:

64E-43880-00, 64E-43880-01, 64E-43880-02, 64E-43880-03, 64E-43880-04
67H-43880-00, 67H-43880-01, 67H-43880-02, 67H-43880-03, 67H-43880-04, 67H-43880-10
68V-43880-00, 68V-43880-01, 68V-43880-02, 68V-43880-03, 68V-43880-04

Other Part Numbers:

BRP / OMC: 5036732
Sierra: 18-6783, 18-18303
Suzuki: 381100-92J10
Mallory: 9-18402

Specifications:

Voltage: 12V
Unit Type: Tilt & Trim Motor
Mount: Bolt-on
Terminal Type: Ring with O-ring
Outer Diameter: 78 mm
Shaft Diameter: 8 mm
Length: 112 mm
Mounting Hole Distance: 65 mm

Fitment Summary:

Yamaha 64E-43880-00-00, 64E-43880-01-00, 64E-43880-03-00
Yamaha 68V-43880-00-00, 68V-43880-01-00, 68V-43880-03-00
Fits Yamaha 115–225HP outboards from 1997 to 2002 and onwards
Also compatible with some Suzuki outboards
