Tilt Trim Motor 809885A1 for Mercury Mariner 30–125HP 809885T2 10827

Tilt Trim Motor 809885A1 for Mercury Mariner 30–125HP 809885T2 10827

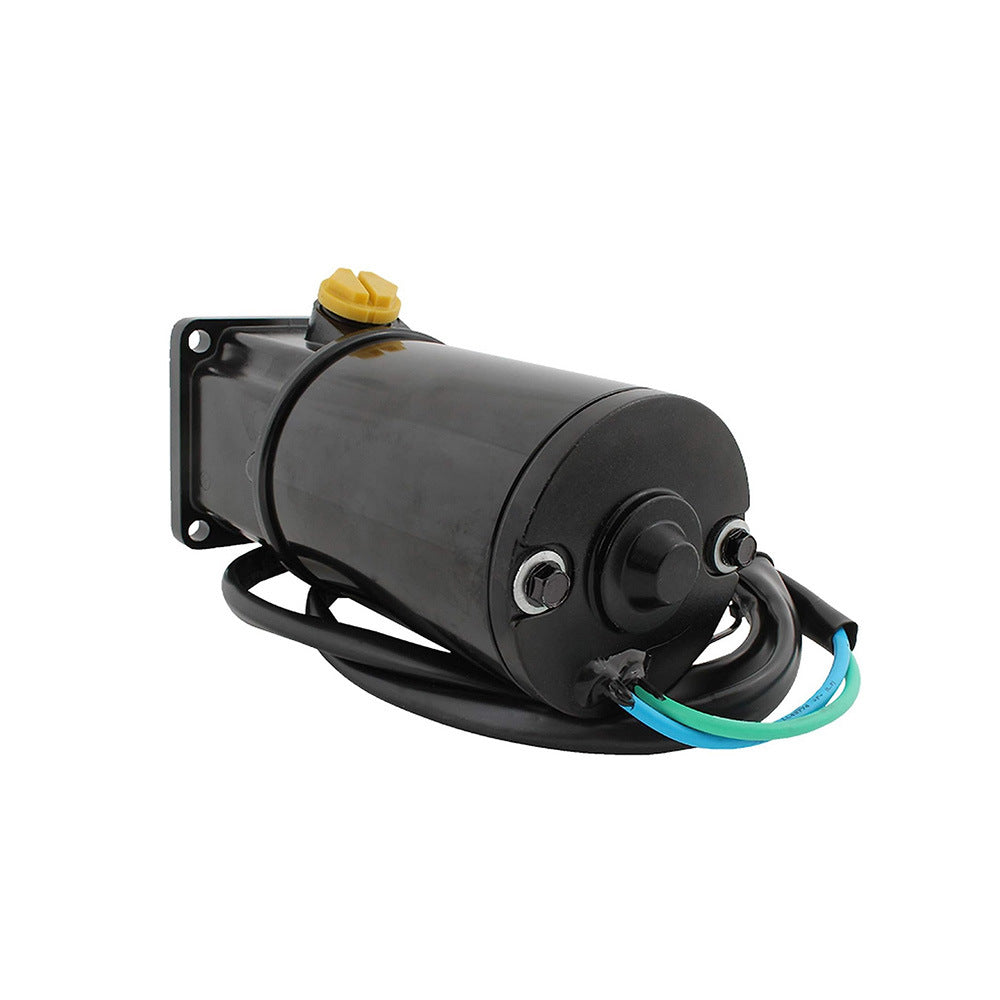

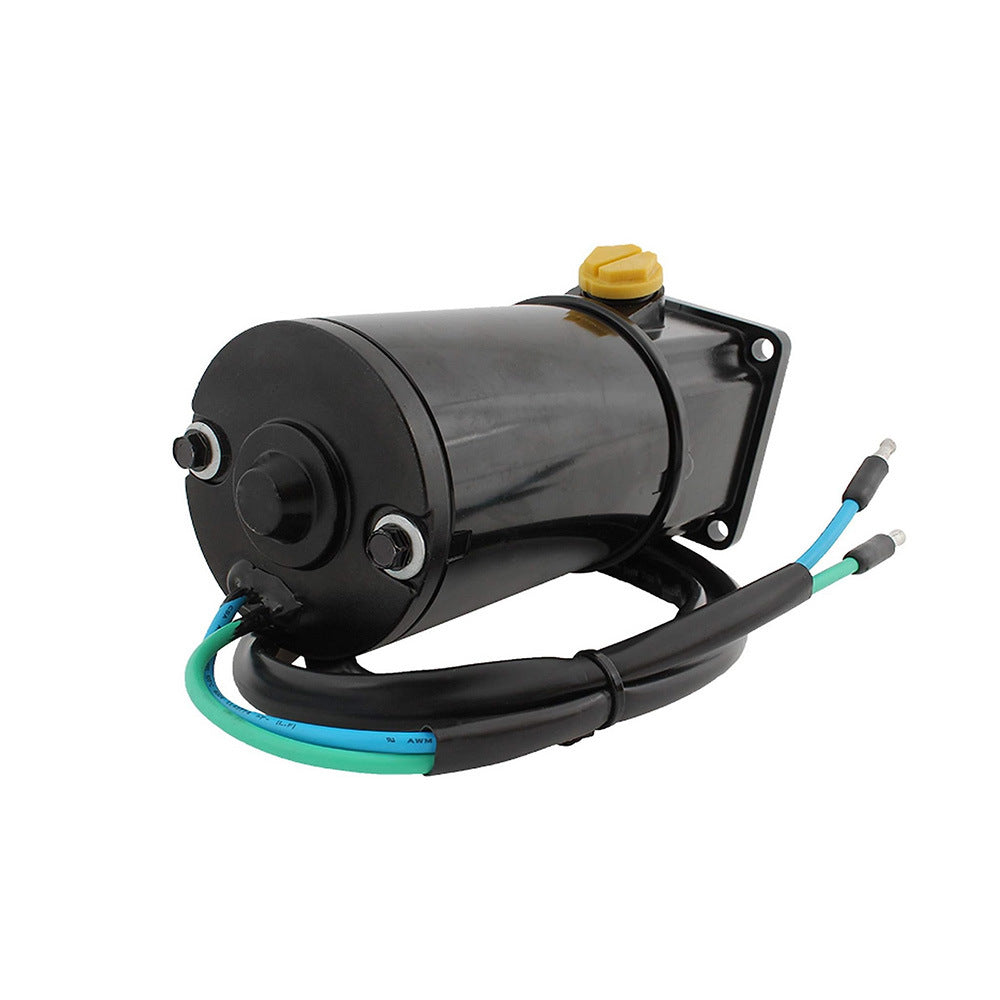

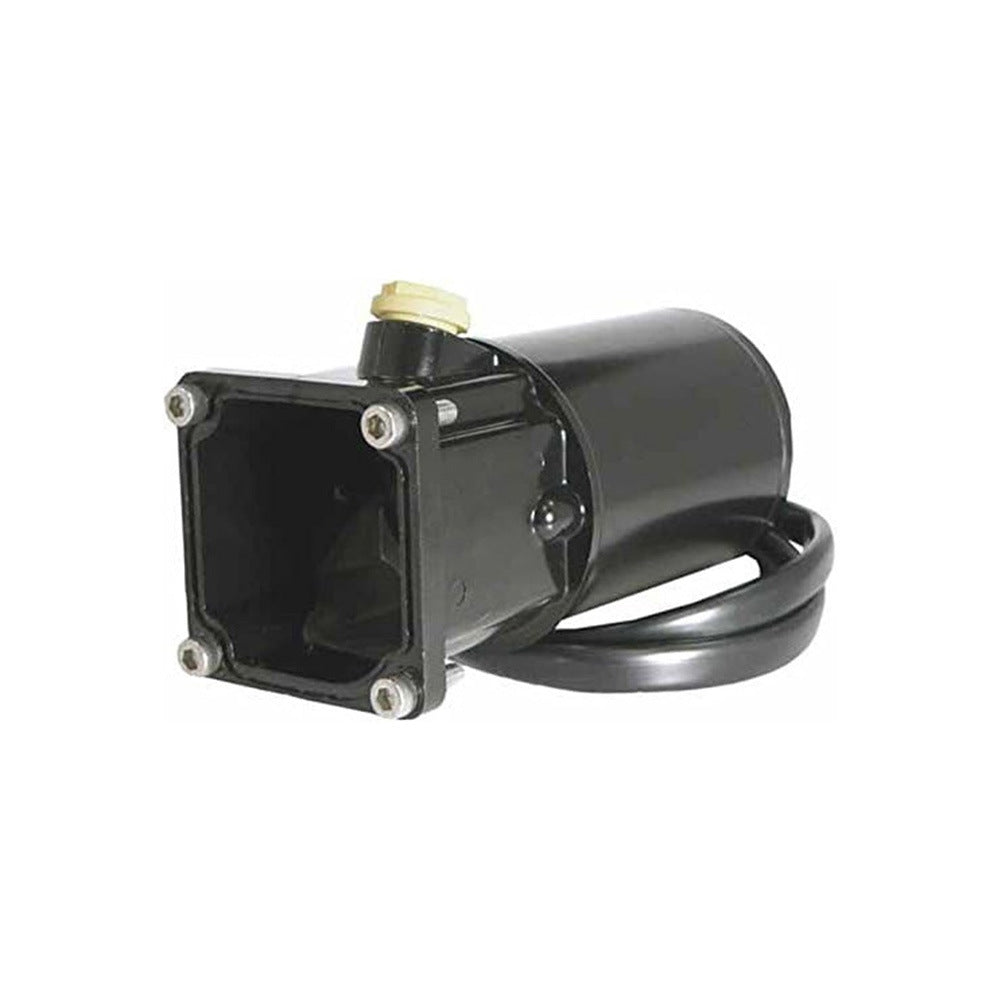

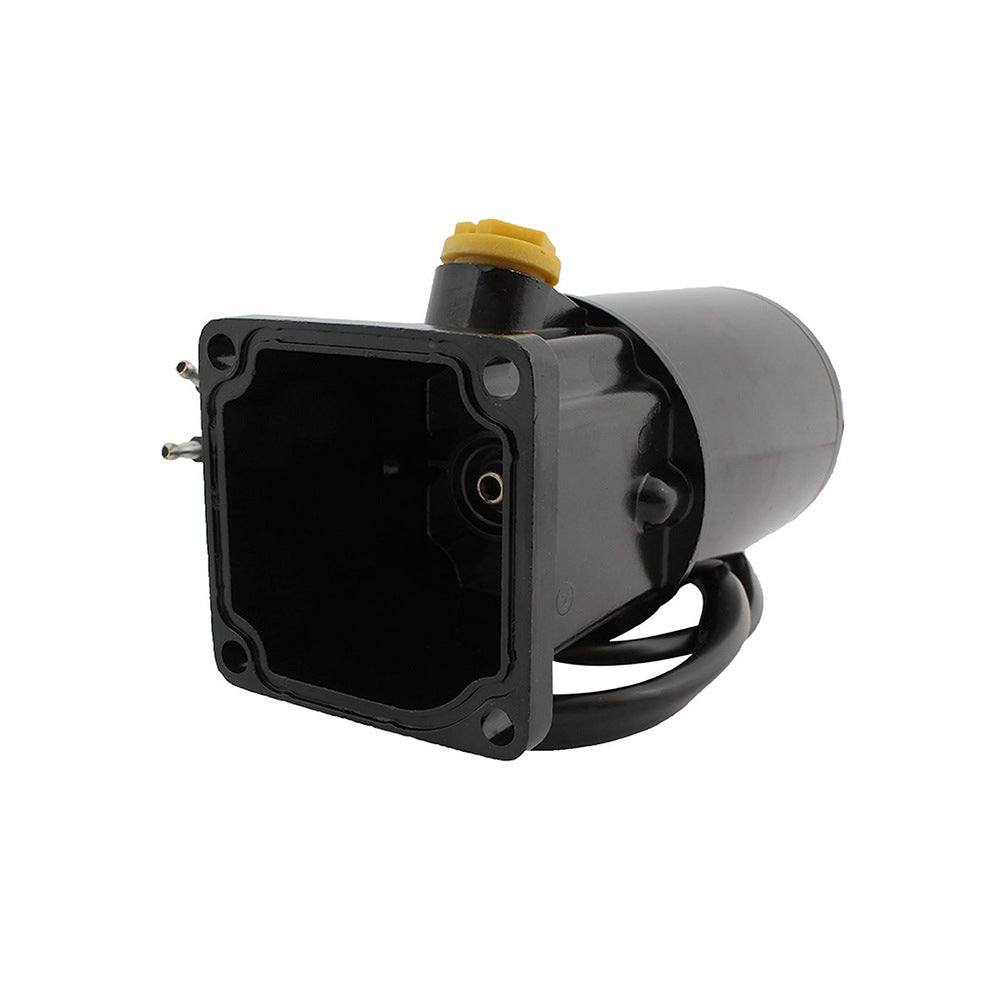

12V tilt and trim motor with reservoir, suitable for Mercury and Mariner outboard motors ranging from 30 to 125 HP. Features a 2-wire connection with bullet connectors, hollow hex shaft, and reversible rotation. Includes wire harness (2 x 3.5-foot) and hardware with O-ring.

Compatible Models:

Mercury Marine Tilt & Trim 50–125 HP
Mariner Tilt & Trim 50–125 HP
Force Marine Tilt & Trim 30–125 HP

OEM Part Numbers Replaced:

Mercury / Mariner: 809885A1, 809885A2, 809885T2, 811674, 811699, 813447, 819479A1, 819480A1, 885654T1, 885654T2
Lester: 10827
Sierra Marine: 18-6777
Spider Marine: TM10827
Arco Marine: 6276
API Marine: PT496NK-2

Specifications:

Voltage: 12V
Rotation: Reversible

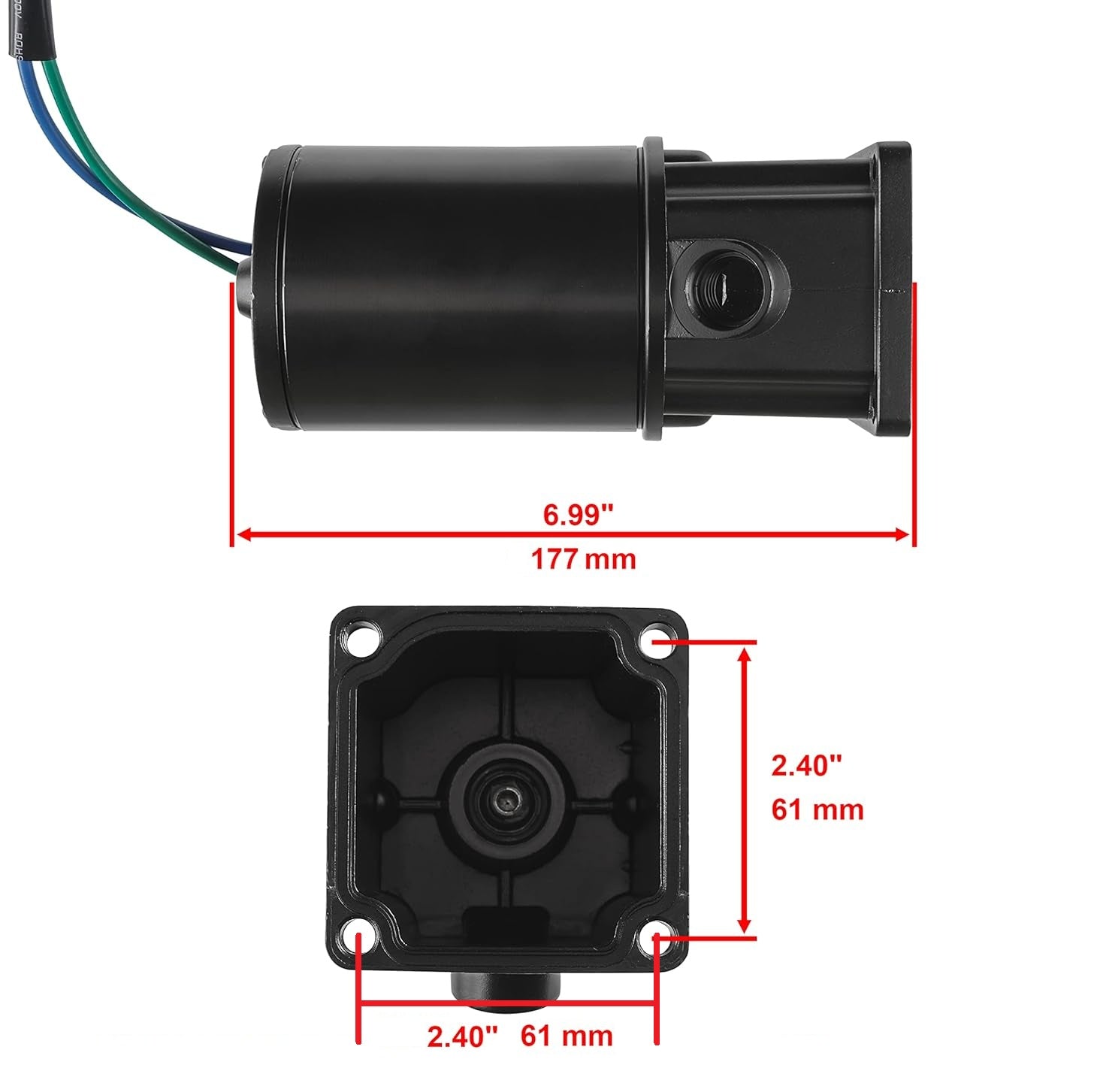

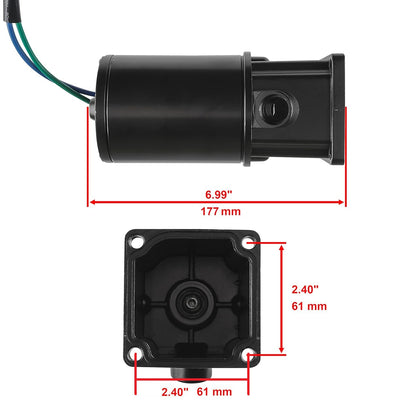

Field Housing Outer Diameter: 72.8 mm (2.866 in)
Overall Length: 175 mm (6.890 in)
Shaft: Hollow Hex
Connection: 2-wire with bullet connectors
Wire Length: Two wires, each 3.5 ft

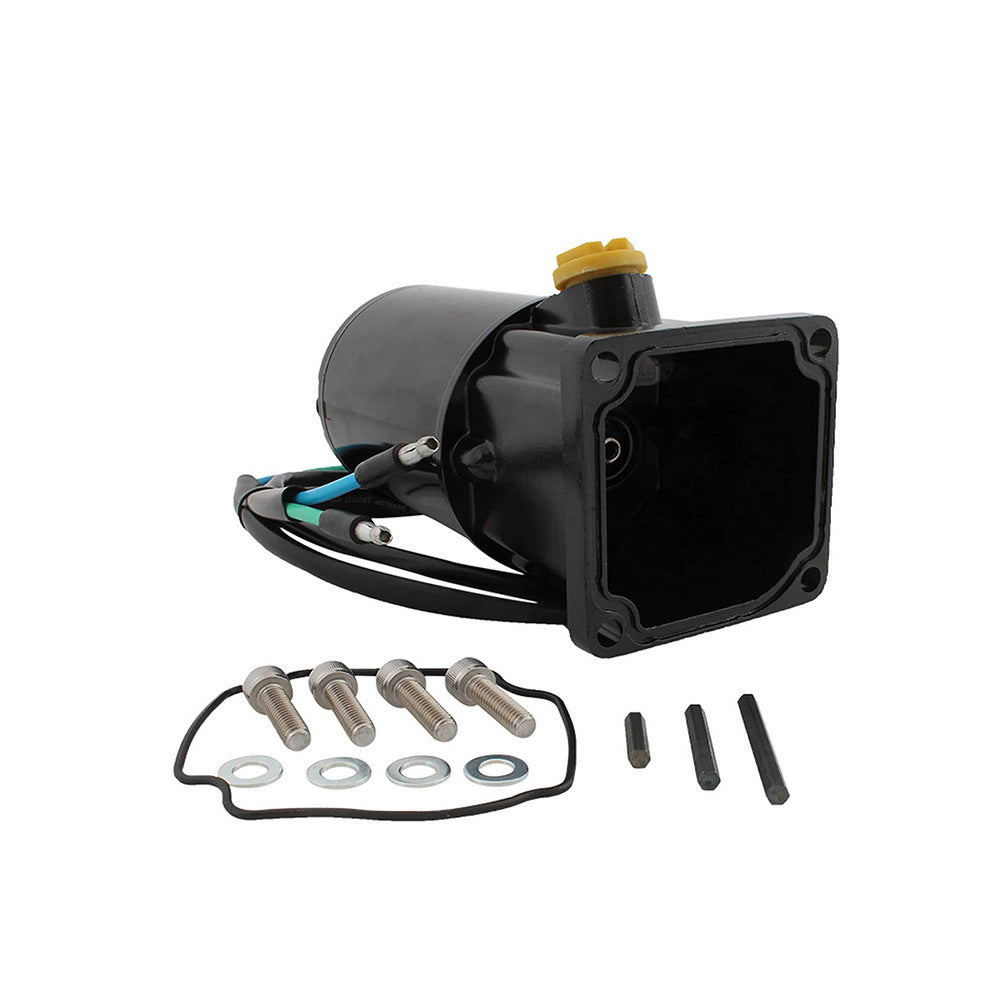

Includes: Hardware kit and O-ring
